SKU: TS-0601-1222 | UPC: 9329677012873

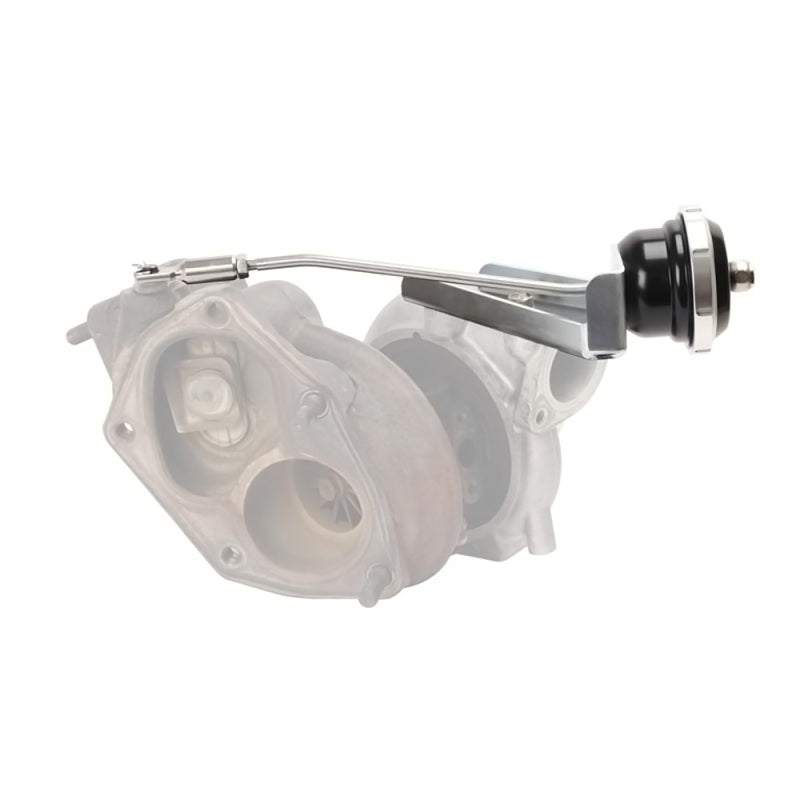

Turbosmart IWG75 Mitsubishi EVO 6-8 22 PSI Black Internal Wastegate Actuator
The Turbosmart IWG75 Internal Wastegate Actuator delivers precise 22 PSI boost control for Mitsubishi Lancer Evolution models. This direct bolt-on upgrade fits 2003-2005 Lancer Evolution, Ralliart, and select variants with TD05H-16G turbos. It replaces the factory actuator to hold boost steady for stronger power and quicker spool.
Key Features
- 22 PSI Spring: Maintains consistent boost pressure for reliable performance across the RPM range
- 75mm Silicone Diaphragm: Withstands high heat and pressure for extended durability and fast response
- Nitronic 60 Stainless Rod: Provides superior strength and resistance to fatigue under extreme conditions
- Black Powder Coated Housing: Forged aluminum construction resists corrosion and adds style under the hood
- Direct Fit Design: Bolts onto OEM mounting bracket with supplied fittings, no modifications required
Product Notes
- Compatible with factory TD05H-16G turbocharger on EVO 6-8
- Adjustable boost with optional Turbosmart spring kits
- Compact design fits tight engine bays without clearance issues
Installation Notes
- Professional installation recommended.
- Remove OEM actuator from turbo wastegate canister and bolt on new unit
- Uses factory bracket and 3/8 UNF thread for secure mounting
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003-2004 | Mitsubishi | Lancer | ES |
| 2003-2005 | Mitsubishi | Lancer | Evolution |
| 2005 | Mitsubishi | Lancer | Evolution MR |
| 2005 | Mitsubishi | Lancer | Evolution RS |
| 2003-2004 | Mitsubishi | Lancer | LS |
| 2003-2004 | Mitsubishi | Lancer | OZ Rally |
| 2004 | Mitsubishi | Lancer | Ralliart |
| 2004 | Mitsubishi | Lancer | Sportback |
| 2004 | Mitsubishi | Lancer | Sportback Ralliart |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with innovative design focus
- Strict quality control and rigorous testing in dedicated research facility
- Proven reliability trusted by performance enthusiasts worldwide
Frequently Asked Questions
-
Q: Will this fit my 2003-2005 Mitsubishi Lancer Evolution VIII?
A: Yes, it is a direct replacement for the OEM actuator on Evolution models with TD05H-16G turbos -
Q: What material is used for the actuator rod and diaphragm?
A: Nitronic 60 stainless steel rod and high-temperature silicone diaphragm ensure long-term durability -
Q: What warranty does it come with?
A: Backed by Turbosmart warranty against manufacturing defects when installed correctly
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Secure foam-protected box, 6 x 4 x 4 inches
- Weight: 1.10 lbs
