SKU: TS-0601-2222 | UPC: 9329677012897

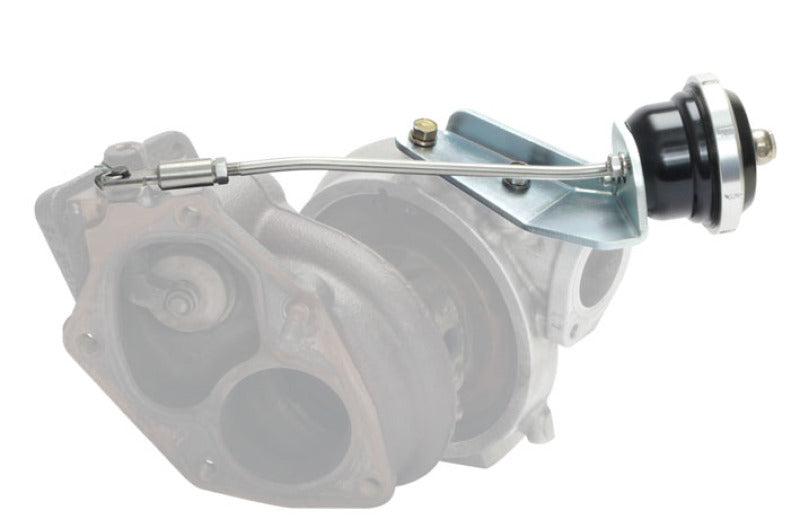

Turbosmart IWG75 Mitsubishi EVO 9 22 PSI Black Internal Wastegate Actuator 2005-2006
The Turbosmart IWG75 22 PSI Black Internal Wastegate Actuator delivers precise boost management for 2005-2006 Mitsubishi Lancer Evolution models equipped with TD05H-20G6-10.5T turbos. This direct bolt-on replacement replaces the factory actuator to hold consistent 22 PSI boost levels for sharper throttle response and stronger mid-range power. Hand-built in Sydney Australia it withstands extreme track conditions with reliable operation.
Key Features
- 22 PSI Spring: Precision-wound for repeatable boost accuracy across RPM range preventing boost creep
- Black Anodized Arm: Forged 6061 aluminum construction resists corrosion and high heat for long-term durability
- Reinforced Diaphragm: 0.5mm thick high-temperature silicone Nomex diaphragm handles pressures up to 30 PSI
- Compact IWG75 Design: Maintains OEM envelope with 75 series stroke for seamless integration
- Evo 9 Specific Bracket: Tailored mounting ensures proper geometry on TD05H turbo without adjustments
Product Notes
- Pre-assembled with spring for plug-and-play installation
- Suppresses actuator buzz common in stock setups
- Ships with full hardware kit including circlip and pin
Installation Notes
- Professional installation recommended.
- Remove OEM actuator from turbo wastegate canister using factory bolts
- Compatible with stock turbocharger mounting points no fabrication needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005-2006 | Mitsubishi | Lancer | Evolution |
| 2005-2006 | Mitsubishi | Lancer | Evolution MR |
| 2005-2006 | Mitsubishi | Lancer | Evolution RS |
| 2006 | Mitsubishi | Lancer | Evolution SE |
Why Choose Turbosmart?
- Designed and manufactured in Sydney Australia since 1997
- Strict quality control and dyno testing on every unit
- Proven reliability in motorsport and street applications
Frequently Asked Questions
-
Q: Will this fit my 2005-2006 USDM Mitsubishi Lancer Evolution 9?
A: Yes direct bolt-on for all Evolution IX models with TD05H-20G6-10.5T turbo including MR RS and SE variants -
Q: What materials are used in construction?
A: Forged 6061-T6 aluminum black anodized arm high-temp reinforced silicone diaphragm and stainless steel components -
Q: What warranty coverage is provided?
A: Turbosmart actuators carry a limited lifetime warranty against manufacturing defects when installed correctly
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Secure foam-lined box 8 x 6 x 4 inches
- Weight: 0.4 lbs product 0.6 lbs shipping
