SKU: TS-1-6262B-VB082E | UPC: 9329677028966

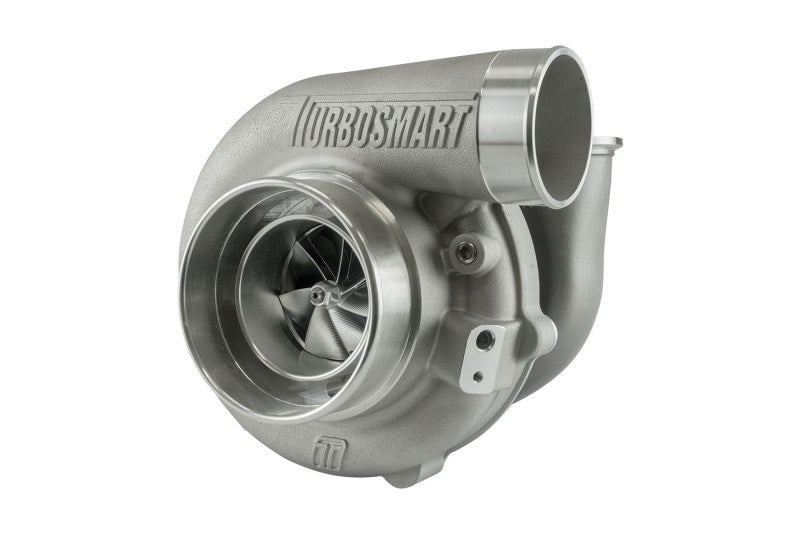

Turbosmart Oil Cooled 6262 V-Band Inlet/Outlet A/R 0.82 External Wastegate TS-1 Turbocharger - Universal
The Turbosmart TS-1 6262 turbocharger delivers quick spool and high power for performance builds on inline-6 engines like Toyota 2JZ-GTE and Nissan RB26DETT. This oil-cooled unit features V-band housings for easy installation and A/R 0.82 turbine housing with external wastegate port. It provides 450-850HP potential with low backpressure and fast transient response across 2.0L-4.0L engines.
Key Features
- Lightweight Design: Stainless steel investment cast turbine housing and ultra-low rotating mass shaft assembly reduce weight to 16.5 lbs for faster spool than heavier competitors.
- Compressor Wheel: 62mm inducer / 82mm exducer forged milled wheel with aggressive aerodynamics supports 60+ lb/min flow at lower RPMs.
- Turbine Wheel: 62mm T14 Inconel wheel maintains power at high loads with extended tip height for durability under boost.
- V-Band Housings: Inlet and outlet V-band clamps simplify plumbing and allow quick disassembly for maintenance.
- Oil Cooled CHRA: Proprietary journal bearing and main shaft combo ensures reliable transient response without water cooling.
Product Notes
- Requires -4AN oil feed line and -10AN drain line. use Turbosmart fittings for best results.
- Break-in oil and 20 minutes easy driving recommended after install.
- Ships in protective foam-lined box. inspect for damage upon receipt.
Installation Notes
- Professional installation recommended.
- Custom exhaust manifold and downpipe required for V-band flanges (3.0 inch nominal).
- Compatible with Tial MVS or V-band external wastegates. position actuator away from heat sources.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993-1998 | Toyota | Supra | 2JZ-GTE Twin Turbo |
| 1993-2002 | Toyota | Supra | 2JZ-GTE Single Turbo Conversion |
| 1989-1998 | Nissan | Skyline | RB26DETT |
| Universal | Chevrolet | LS1/LS3 | Custom Swap |
| Universal | Honda | K20/K24 | High HP Build |
Why Choose Turbosmart?
- Motorsport-proven in drag racing and circuit cars worldwide.
- Investment cast housings resist cracking under extreme heat cycles.
- Engineered in Australia for reduced lag and sustained high-flow performance.
Frequently Asked Questions
-
Q: What engines is this turbo suited for?
A: Fits 4-6 cylinder performance builds 2.0L-4.0L including Toyota 2JZ-GTE, Nissan RB26DETT, and LS swaps with custom manifolds. -
Q: Is this turbo water cooled?
A: Oil cooled only with advanced journal bearing system. no water ports needed, simplifies plumbing. -
Q: What is the warranty and install tips?
A: Turbosmart 2-year warranty with registration. use assembly lube on install and monitor EGTs under 1650F.
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Secure double-wall box 17in x 15in x 15in
- Weight: 16.5 lbs product / 20 lbs shipping
