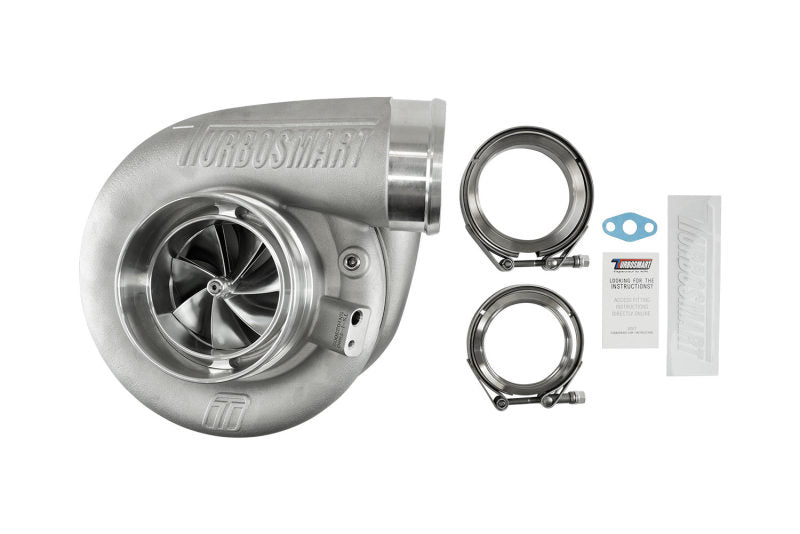

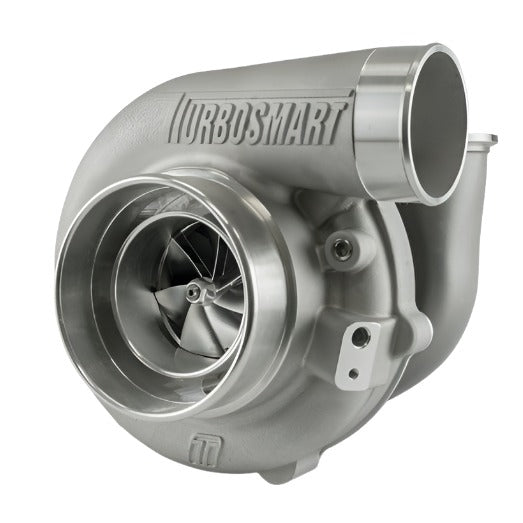

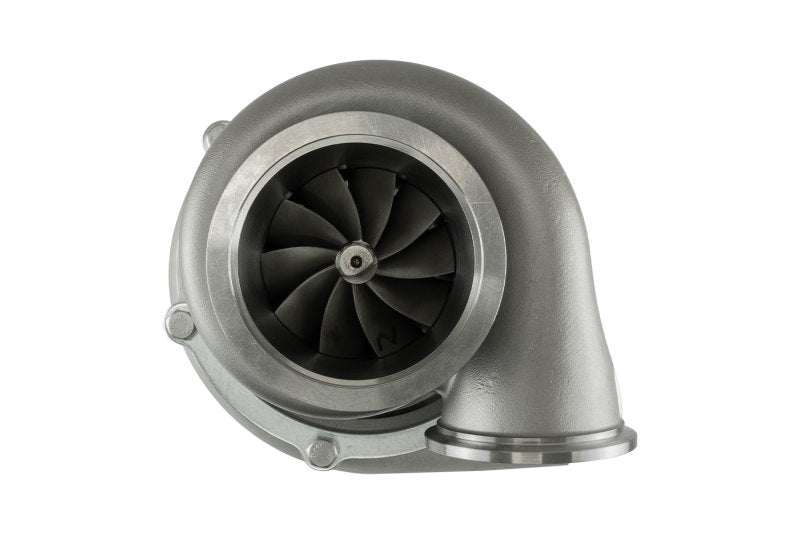

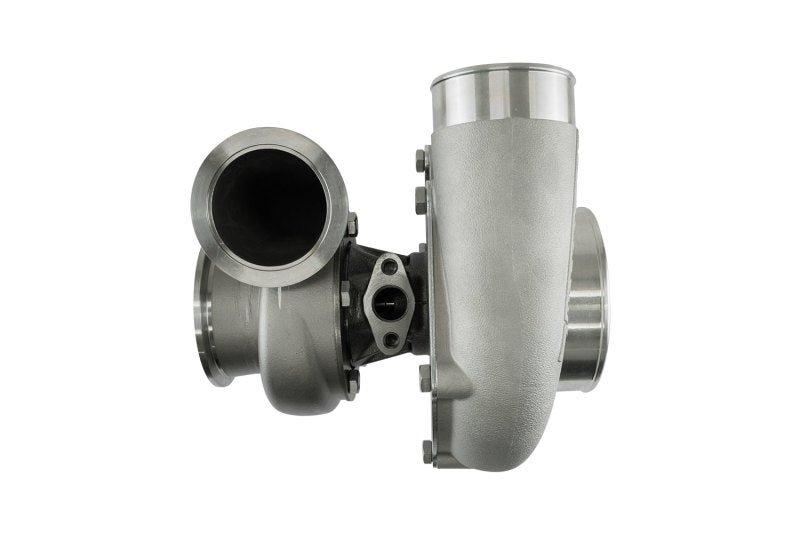

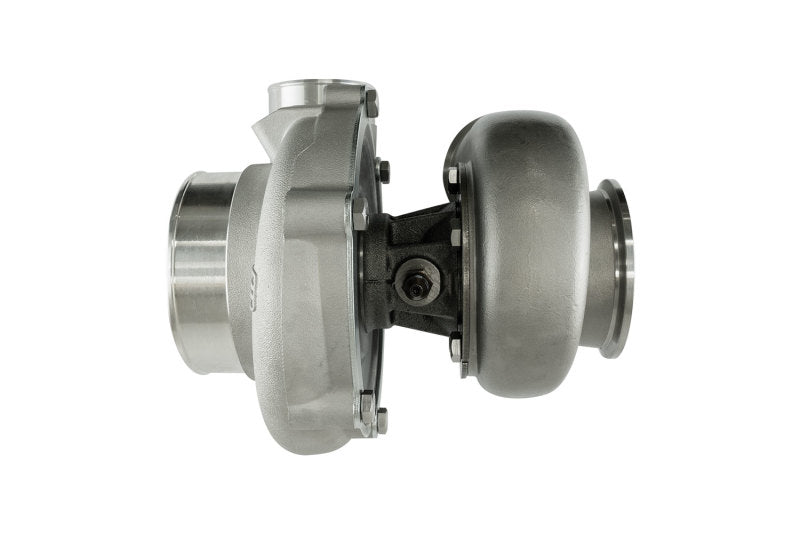

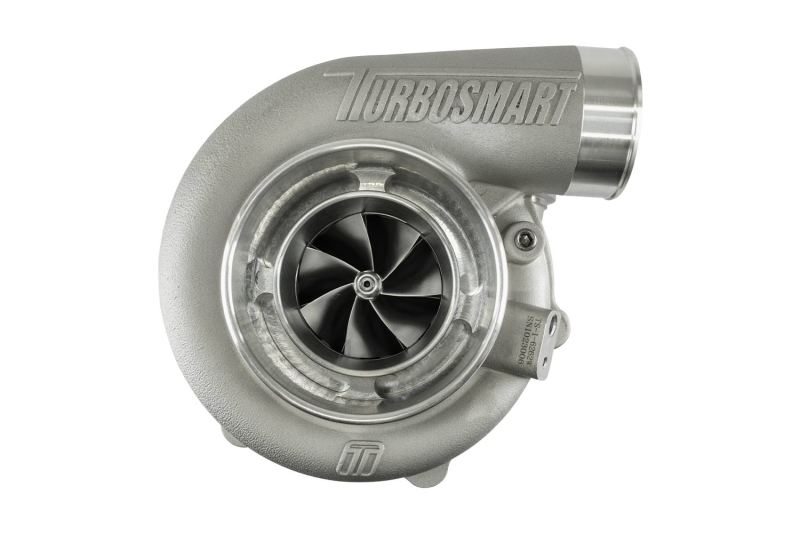

Turbosmart Oil Cooled 6870 V-Band Inlet/Outlet A/R 0.96 External Wastegate TS-1 Turbocharger

Turbosmart
TURTS-1-6870B-VB096E
9329677029178
Turbochargers
20+ Units In Stock - Ships Next Business Day
$ 2,990.99 $ 2,691.89
$ 2,691.89

SKU: TS-1-6870B-VB096E | UPC: 9329677029178

Turbosmart Oil Cooled 6870 V-Band Inlet/Outlet A/R 0.96 External Wastegate TS-1 Turbocharger - Universal Fit

The Turbosmart TS-1 6870 turbocharger delivers high performance for custom builds on 2.0L to 4.0L engines targeting 450-850HP. This oil cooled unit features V-band inlet and outlet turbine housing with A/R 0.96 and external wastegate provision for quick boost response and reduced backpressure. Smaller lighter and faster than competitors it spools quickly while maintaining power at high loads.

Key Features

  • Lightweight Stainless Steel Turbine Housing: Investment cast design reduces weight for faster spool and easier packaging in tight engine bays
  • Proprietary Bearing and Shaft: Ultra-low rotating mass provides unmatched transient response and durability under high boost
  • Aggressive Compressor Aerodynamics: Billet 67.82mm inducer / 91.40mm exducer wheel builds boost at lower RPM for streetable power
  • T14 Inconel Turbine Wheel: 70.09mm inducer / 79.00mm exducer handles extreme flow and heat for sustained high HP output
  • V-Band Housings A/R 0.96: External wastegate ready with open inlet/outlet for simple custom exhaust routing and minimal backpressure

Product Notes

  • Oil cooled CHRA only no water cooling ports
  • External wastegate required and sold separately
  • Custom intake piping manifold adapter and downpipe fabrication needed

Installation Notes

  • Professional installation recommended.
  • Requires compatible V-band clamps for turbine inlet/outlet seals
  • Match with Turbosmart external wastegate like CompGate 50 for full setup

This Part Fits

Year Make Model Submodel
Universal All Performance Builds 2.0L-4.0L Engines 450-850HP

Why Choose Turbosmart?

  • Motorsport proven reliability in drag road racing and rally
  • Advanced materials like Inconel and billet for long term durability
  • Precision engineering from Australian headquarters with global support

Frequently Asked Questions

  • Q: What engines does the TS-1 6870 fit?
    A: Universal application for inline-4 inline-6 and V6 engines 2.0L to 4.0L producing 450-850HP with custom fabrication
  • Q: What materials are used in construction?
    A: Billet aluminum compressor cover stainless investment cast turbine housing T14 Inconel turbine wheel and high strength steel shaft
  • Q: What is the warranty and install requirements?
    A: Turbosmart structural warranty against defects professional installation advised oil feed line kit recommended for plumbing

Shipping & Handling

  • Method: UPS Ground or FedEx Ground
  • Availability: Special order ships in 3-5 business days
  • Packaging: Original Turbosmart box 15 x 14 x 14 inches
  • Weight: Product 12.6 lbs shipping 15 lbs
