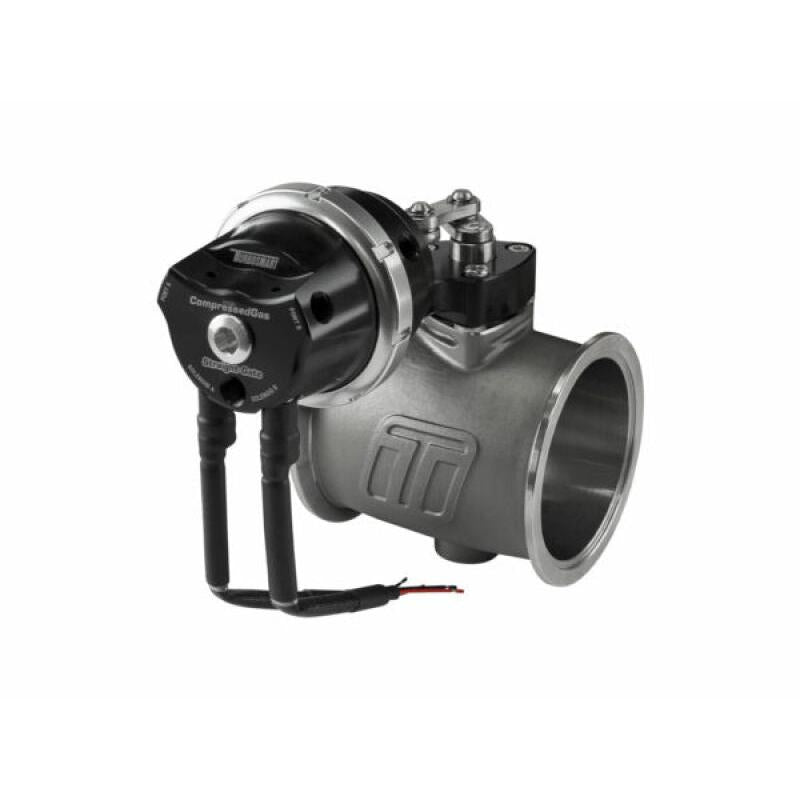

Turbosmart PSG76CG 7PSI Compressed Gas Solenoid Pneumatic StraightGate76 - Black Turbosmart TURTS-0567-1252
Click to zoom in

Turbosmart PSG76CG 7PSI Compressed Gas Solenoid Pneumatic StraightGate76 - Black

Turbosmart
TURTS-0567-1252
9329677032758
Wastegates
1 Units In Stock - Ships Next Business Day
$ 1,260.99 $ 1,134.89
$ 1,134.89

SKU: TS-0567-1252 | UPC: 9329677032758

Turbosmart PSG76CG 7PSI Compressed Gas Solenoid Pneumatic StraightGate76 - Black Universal Wastegate

The Turbosmart PSG76CG 7PSI Compressed Gas Solenoid Pneumatic StraightGate76 in black delivers extreme exhaust flow for high-horsepower turbocharged engines in drag racing and motorsport. This 76mm external wastegate fits universal custom turbo manifolds requiring fast boost response. External compressed gas actuation ensures consistent performance independent of exhaust pressure even at high boost levels.

Key Features

  • 76mm Straight-Through Valve: Patented internal flow path reduces turbulence for maximum exhaust volume handling up to 2000HP
  • 7PSI Compressed Gas Actuator: External CO2 or nitrogen supply provides rapid response and precise control free from backpressure effects
  • Electric Solenoid Valve: PWM-compatible design supports electronic timing in boost-by-gear and anti-lag configurations
  • 347 Stainless Steel Body: Investment cast structure withstands corrosion and intense heat in harsh racing conditions
  • Nitronic 60 Seat with 310SS Guide: High-temperature materials deliver reliable sealing and long service life under extreme duty

Product Notes

  • Requires compressed gas canister regulator and plumbing kit for operation
  • V-band inlet outlet flanges demand precise manifold fabrication
  • Packaged in foam-protected box for safe transit

Installation Notes

  • Professional installation recommended.
  • Weld V-band flanges to exhaust manifold with 347SS material
  • Solenoid wiring needs 12V fused circuit and ECU PWM signal

This Part Fits

Year Make Model Submodel
Universal All Turbocharged Vehicles 1000HP+ Performance Builds

Why Choose Turbosmart?

  • Engineered and manufactured in Australia for global motorsport teams
  • StraightGate technology proven in drag racing and rally applications
  • Modular V-band design simplifies maintenance and adjustments

Frequently Asked Questions

  • Q: What gas source powers the actuator?
    A: Uses 7PSI regulated CO2 or nitrogen from a canister with included solenoid for precise electric control
  • Q: What finish protects the body?
    A: Black high-temperature powder coat over 347 stainless steel for heat and corrosion resistance
  • Q: What support comes with purchase?
    A: Includes lifetime limited warranty against manufacturing defects plus installation instructions and tuning guide

Shipping & Handling

  • Method: UPS Ground or FedEx Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Foam-lined cardboard box 15 x 10 x 8 inches
  • Weight: 4.85 lbs product 6.5 lbs shipping
