SKU: TS-0204-1142 | UPC: 9329677021486

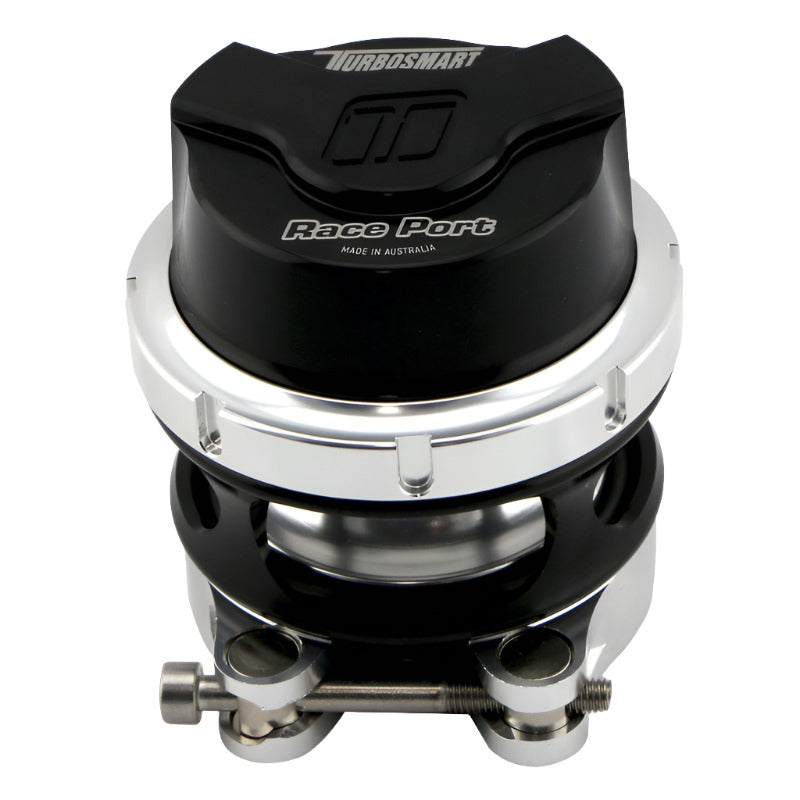

Turbosmart Raceport Gen-V Universal - Black (No Weld Flange) Female (Fits Competitors Flange)
The Turbosmart RacePort Gen-V is a twin-port atmospheric blow-off valve built for universal fitment on turbocharged vehicles equipped with competitor weld-on flanges. This black no-weld female flange design bolts directly onto TiAL, HKS, GReddy, AEM, and similar flanges without modifications. Drivers gain faster turbo spool, precise boost control, and sharp throttle response for track or street performance.
Key Features
- Twin Port Venting: Dual exhaust ports rapidly discharge pressurized air to reduce compressor surge and accelerate turbo recovery.
- Gen V Piston Design: 50mm aluminum piston with Nitronic 60 steel stem supports boost pressures to 50 psi with zero failure risk.
- Competitor Flange Compatibility: Female interface mates perfectly with TiAL MV-R/V60, HKS SSQV, GReddy Type-RS flanges using provided hardware.
- Five Spring Options Included: Color-coded springs for 3psi white, 5psi yellow, 7psi green, 10psi red, 14psi blue pressures match exact boost needs.
- Black Anodized Construction: Lightweight aluminum body with corrosion-proof finish withstands extreme heat and abuse.
Product Notes
- Vents to atmosphere only - recirculation adapters available separately.
- All O-rings, fittings, and hardware supplied for immediate use.
- Box dimensions 9.5 x 7 x 5.2 inches for compact storage.
Installation Notes
- Professional installation recommended.
- Bolt-on replacement takes under 30 minutes on compatible flanges.
- Use included collar nut and studs for secure flange mounting.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2002-2021 | Subaru | Impreza | WRX/STI |
| 2003-2006 | Mitsubishi | Lancer | Evolution VIII/IX |
| 1989-1999 | Mitsubishi | 3000GT/Eclipse | Turbo/GSX |
| 1993-1998 | Toyota | Supra | Twin Turbo |
| 1989-1998 | Toyota | MR2 | Turbo |
| 2009+ | Nissan | GT-R | R35 |
| Universal | All | Turbo Vehicles | Competitor Flange |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 for proven durability.
- Strict quality control and in-house testing ensure reliable operation.
- Innovative engineering sets industry benchmarks in performance parts.
Frequently Asked Questions
-
Q: Will this bolt onto my TiAL flange?
A: Yes, the female flange fits TiAL 38mm/50mm weld-on flanges like MV-R and V60 models directly with no adapters. -
Q: What boost levels does it support?
A: Rated to 50 psi maximum with included springs covering 3 to 14 psi, heavier springs available separately. -
Q: Is any welding needed for install?
A: No, this no-weld design bolts onto existing competitor weld-on flanges using factory hardware.
