TURTS-1-6466B-D4100E-Turbosmart TS-1 Oil Cooled 6466 V-Band Inlet/Outlet A/R 1.00 External Wastegate Turbocharger-Turbochargers-Turbosmart
Click to zoom in

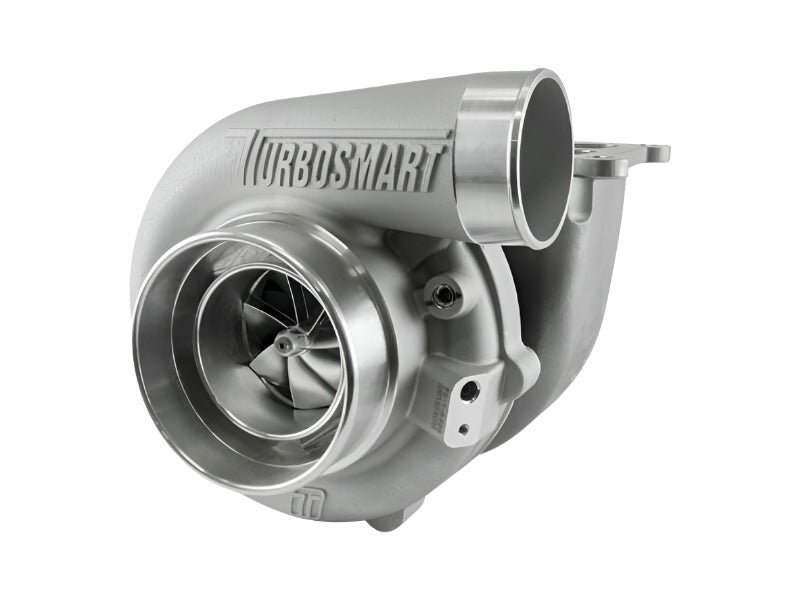

Turbosmart TS-1 Oil Cooled 6466 V-Band Inlet/Outlet A/R 1.00 External Wastegate Turbocharger

Turbosmart
TURTS-1-6466B-D4100E
9329677030686
Turbochargers
Out of stock
$ 2,631.99 $ 2,368.79

SKU: TS-1-6466B-D4100E | UPC: 9329677030686

Turbosmart TS-1 Oil Cooled 6466 V-Band Inlet/Outlet A/R 1.00 External Wastegate Turbocharger for 2JZ RB26 LS

The Turbosmart TS-1 6466 turbocharger features an oil cooled dual ceramic ball bearing CHRA V-Band compressor and turbine housings and T6 A/R 1.00 turbine housing with external wastegate position. Designed for high performance builds it fits Toyota 2JZ-GTE Nissan RB26DETT and GM LS engines. Delivers 550-1000hp with quick spool and high airflow from billet compressor wheel.

Key Features

  • Dual Ceramic Ball Bearing CHRA: Oil cooled center housing rotates 200000+ RPM for fast spool and long service life under high boost
  • Billet Compressor Wheel: 64.8mm inducer 82.5mm exducer milled from 2618 aluminum supports massive airflow for 1000hp potential
  • Inconel Turbine Wheel: 66.1mm inducer 74.1mm exducer withstands 1050C exhaust gas temperatures in extreme conditions
  • V-Band Housings: Compressor and turbine V-band inlet/outlet clamps allow tool-free assembly and easy manifold matching
  • A/R 1.00 T6 Turbine Housing: External wastegate cutout provides precise boost control and top-end power for 3.0L+ engines

Product Notes

  • Requires compatible external wastegate oil feed/drain lines and proper tuning
  • Inspect CHRA bearings during initial oiling to prevent dry start damage
  • Product weight 20.95 lbs ships in protective foam-lined box

Installation Notes

  • Professional installation recommended.
  • Prime oil system before startup with 80w-90 gear oil through feed line
  • V-band clamps torque to 8 Nm compatible with Turbosmart IWG75 wastegates

This Part Fits

Year Make Model Submodel
1993-2002 Toyota Supra 2JZ-GTE Turbo
1989-1994 Nissan Skyline R32 GT-R RB26DETT
1995-1998 Nissan Skyline R33 GT-R RB26DETT
1999-2002 Nissan Skyline R34 GT-R RB26DETT
1997-2013 Chevrolet Corvette LS1 LS2 LS3 C5 C6
1998-2002 Chevrolet Camaro LS1 Z28 SS

Why Choose Turbosmart?

  • Motorsport proven in drag and circuit racing worldwide
  • CNC machined housings and billet wheels from aerospace grade materials
  • Engineered in Australia for reliability at 40+ psi boost levels

Frequently Asked Questions

  • Q: What engines is the TS-1 6466 compatible with?
    A: Universal fit for 2.0-6.0L inline-4 V6 V8 engines popular on Toyota 2JZ Nissan RB26 Chevy LS Ford Coyote with proper manifold and piping
  • Q: What materials are used in construction?
    A: Billet 2618 compressor Inconel turbine 430F stainless housings T6 aluminum compressor cover for heat and corrosion resistance
  • Q: What is the warranty and install tips?
    A: 24 month unlimited mileage warranty with registration requires professional tuning and correct oil pressure 60-80 psi
