SKU: TS-HCT-M062 | UPC: 9329677005783

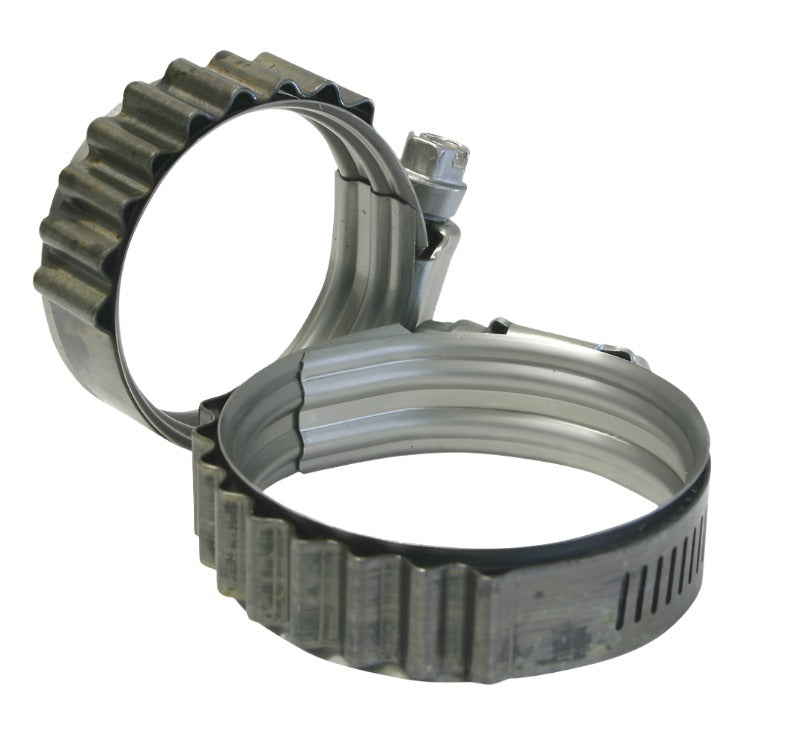

Turbosmart Turbo-Seal Tension Clamps 1.970-2.875 (TS-HCT-M062)
Turbosmart Turbo-Seal Tension Clamps 1.970-2.875 provide secure sealing for silicone hoses on turbocharger inlets outlets and intercooler piping. These clamps fit hose inner diameters from 50mm to 73mm (1.970 to 2.875 inches) across universal turbo setups and custom performance builds. The T-bolt mechanism delivers even pressure distribution to eliminate boost leaks and maintain peak boost levels.
Key Features
- T-Bolt Design: 9mm M6 bolt enables precise torque adjustment up to 30 ft-lbs for consistent sealing under high boost without hose damage
- Stainless Steel Band: 12mm wide high-tensile band resists corrosion heat up to 500F and pressure beyond 50 psi for lasting durability
- Billet 6061 Aluminum Housing: CNC machined for lightweight strength and smooth operation in extreme engine bay conditions
- Adjustment Range: Expands from 1.970 to 2.875 inches to match common turbo hose sizes like 2.25in 2.5in and 3in OD hoses
- Precision Manufacturing: Australian-made with rigorous testing to ensure zero slippage and reliable performance in racing or street applications
Product Notes
- Suited for silicone hoses only. avoids damage to softer rubber materials
- Pre-lubricate bolt threads for smooth adjustment and reuse
- Packaged in protective retail box for safe handling and storage
Installation Notes
- Professional installation recommended.
- Clean hose and pipe surfaces thoroughly before clamping
- Torque to 20-25 ft-lbs. compatible with 13mm socket and standard tools
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | 50-73mm Silicone Hoses |
Why Choose Turbosmart?
- Hand-crafted since 1997 with proven reliability in performance communities worldwide
- Manufactured in Sydney Australia using innovative design and strict quality control
- Rigorous testing in research facility ensures performance beyond expectations
Frequently Asked Questions
-
Q: What hose sizes fit this clamp?
A: Adjusts from 1.970 inches (50mm) to 2.875 inches (73mm) for most turbo inlet outlet and charge pipes -
Q: What materials are used in construction?
A: Band is high-tensile stainless steel housing is CNC billet 6061 aluminum and bolt is zinc-plated steel -
Q: What warranty coverage applies?
A: Backed by Turbosmart limited lifetime warranty against manufacturing defects when installed and used correctly
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Retail box 6 x 4 x 1.5 inches
- Weight: 0.3 lbs
