SKU: TS-0620-1142 | UPC: 9329677012439

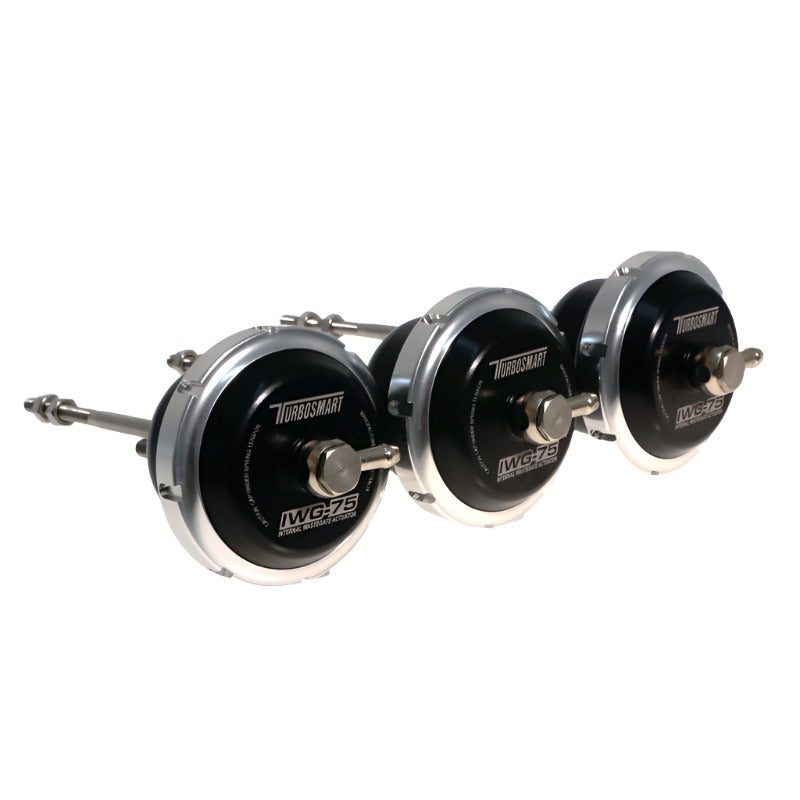

Turbosmart Universal IWG75 Borg Warner B1 120mm Rod Black 14PSI Internal Wastegate
This Turbosmart IWG75 internal wastegate actuator upgrades Borg Warner B1 series turbochargers equipped with 120mm actuator rods. It replaces stock actuators for accurate 14PSI boost management and faster response times. Ideal for high-performance builds demanding dependable turbo control.
Key Features
- 120mm Aluminum Rod: Matches exact length for direct bolt-on installation on Borg Warner B1 turbos without adjustments
- 14PSI Base Spring: Provides consistent boost pressure at 0.96 bar with options for higher settings via spring swaps
- 75mm Silicone Diaphragm: Nomex reinforced for rapid response, high heat tolerance up to 250°C, and long-term durability
- Black Anodized Finish: Protects against corrosion and wear while giving a sleek performance appearance
- 1/4 NPT Reference Port: Supports external boost controllers for fine-tuned adjustment and versatility
Product Notes
- Measure actuator rod length to confirm 120mm fit before purchase
- Spring changes require included 3mm Allen key and are straightforward
- Store in dry conditions to maintain diaphragm integrity
Installation Notes
- Professional installation recommended.
- Bolt-on replacement using existing turbo mounting points
- Compatible with factory hardware on Borg Warner B1 turbos
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | BorgWarner | B1 Series Turbocharger | 120mm Actuator Rod |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 for proven reliability
- Rigorous testing and quality control exceed industry standards
- Backed by dedicated support and performance community trust
Frequently Asked Questions
-
Q: Does this actuator fit my Borg Warner B1 turbo?
A: Yes it fits all B1 series turbochargers with a 120mm wastegate actuator rod length -
Q: What materials are used in construction?
A: Features a Nomex reinforced silicone diaphragm 12mm black anodized aluminum rod and high-strength bracket -
Q: What warranty coverage applies?
A: Covered by Turbosmart limited lifetime warranty against manufacturing defects when installed correctly
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Protective Turbosmart box 6 x 6 x 4 inches
- Weight: 0.68 lbs (0.31 kg)
