SKU: TS-2-5862B-T3063E | UPC: 9329677031034

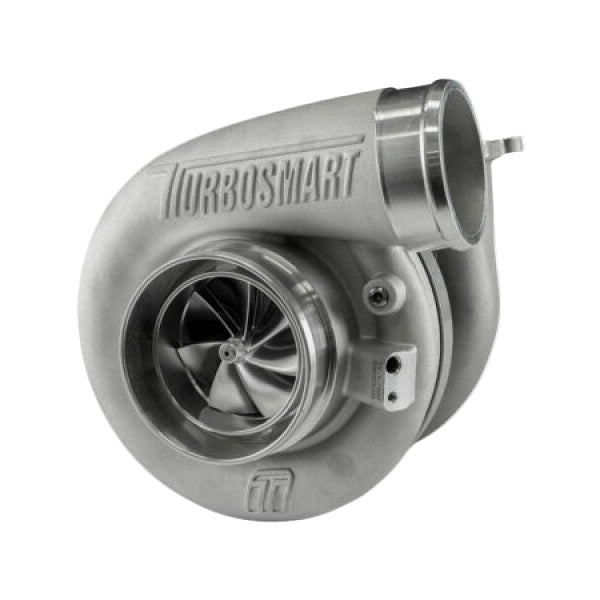

Turbosmart TS-2 Water-Cooled 5862 Turbocharger - T3 Divided Inlet V-Band Outlet 0.63 A/R External Wastegate
The Turbosmart TS-2 5862 water-cooled turbocharger supports 600-1000+ hp in compact form for street and track use on Toyota 2JZ-GTE Supra, Nissan RB26DETT Skyline GT-R, LS V8 swaps, SR20DET Silvia, and any T3 divided manifold setup. Its 58mm billet compressor and 62mm Inconel turbine wheel deliver quick spool with high flow and top-end power. Water-cooled bearings ensure reliability under extreme heat and boost.
Key Features
- 58mm Compressor Wheel: Billet 11-blade Gen2 design provides rapid spool-up and supports high airflow for 1000+ hp potential.
- 62mm Inconel Turbine Wheel: High-temperature material reduces rotational inertia for immediate throttle response and endurance.
- Water-Cooled Bearing Housing: Dual oil and water cooling extends bearing life during prolonged high-boost runs.
- T3 Divided Inlet 0.63 A/R: Matches twin-scroll manifolds for low-end torque and mid-range punch.
- V-Band Outlet: 3.5-inch V-band flange simplifies downpipe setup with secure clamp included.
Product Notes
- Part number TS-2-5862B-T3063E fits T3 divided manifolds with external wastegate provision for 44mm/45mm/50mm gates.
- Compressor housing uses 3.0-inch inlet and 2.0-inch outlet, total weight 8.5 kg or 18.7 lbs.
- Includes V-band clamp and 90-degree oil drain fitting, backed by 5-year warranty.
Installation Notes
- Professional installation and tuning mandatory.
- Custom oil feed/drain, water lines, manifold, and downpipe fabrication required.
- Use synthetic oil with warm-up and cool-down cycles, typical time 8-12 hours.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993-2002 | Toyota | Supra | MKIV 2JZ-GTE |
| 1991-2005 | Toyota | Aristo | 2JZ-GTE |
| 1989-1994 | Nissan | Skyline GT-R | R32 RB26DETT |
| 1995-1998 | Nissan | Skyline GT-R | R33 RB26DETT |
| 1999-2002 | Nissan | Skyline GT-R | R34 RB26DETT |
| 1997+ | GM | LS V8 | Drift/Race Builds |
| 1989-1999 | Nissan | Silvia/180SX | SR20DET/CA18DET |
| - | Universal | T3 Divided | Manifold Application |
Why Choose Turbosmart?
- Australian manufacturer with decades of motorsport success in drag, drift, and time attack.
- TS-2 series delivers quick spool and power in compact lightweight package.
- Trusted by top tuners for 800-1500+ hp builds worldwide.
Frequently Asked Questions
-
Q: What engines does it fit?
A: Fits 2JZ-GTE Supra, RB26DETT GT-R, LS V8, SR20DET Silvia with T3 divided manifolds. -
Q: Is water cooling required?
A: Oil-cooled primary with water highly recommended for extreme duty and bearing longevity. -
Q: What is the warranty?
A: 5-year warranty when installed and maintained per guidelines.
Shipping & Handling
- Method: Standard ground shipping (large box)
- Availability: In stock - ships same or next business day
- Packaging: Box dimensions approx 16 x 16 x 14 inches
- Weight: Product 18.7 lbs (8.5 kg), package 25-30 lbs
