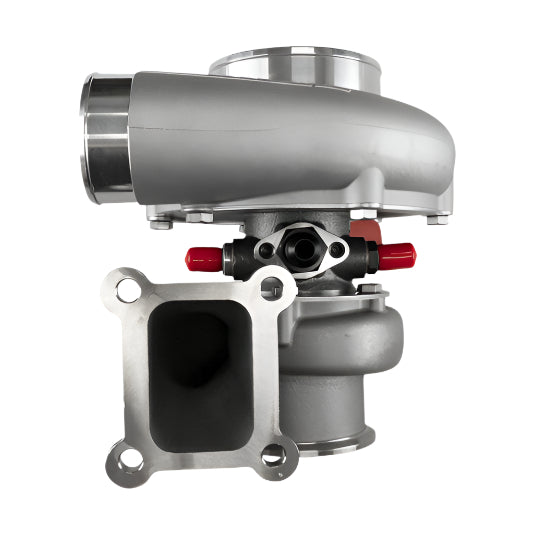

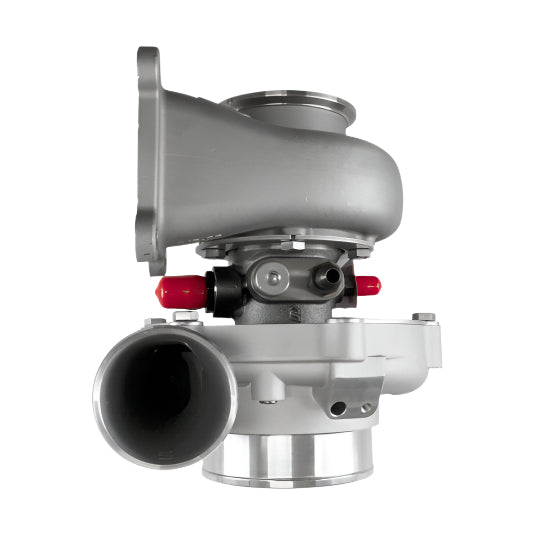

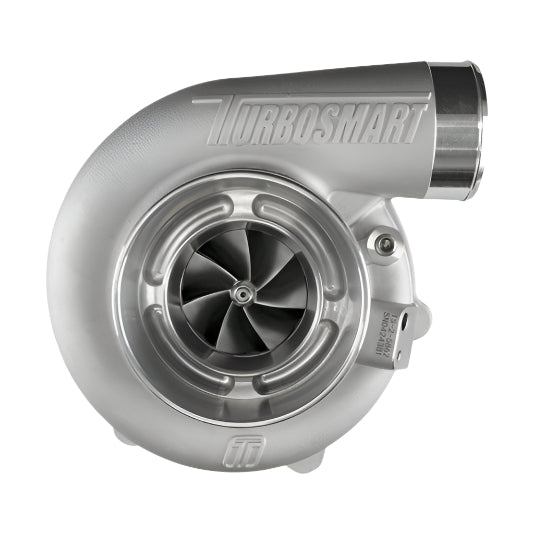

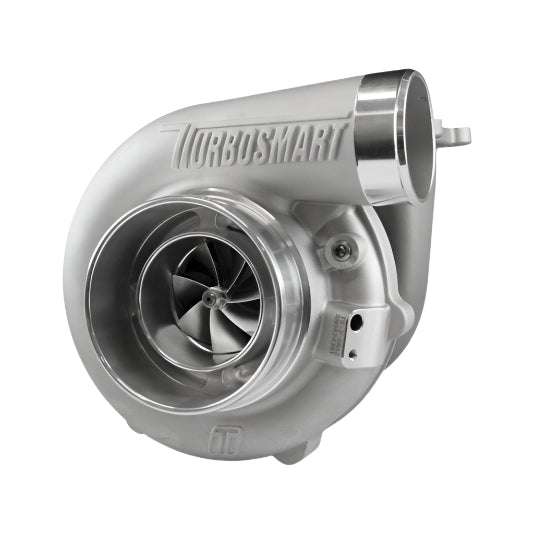

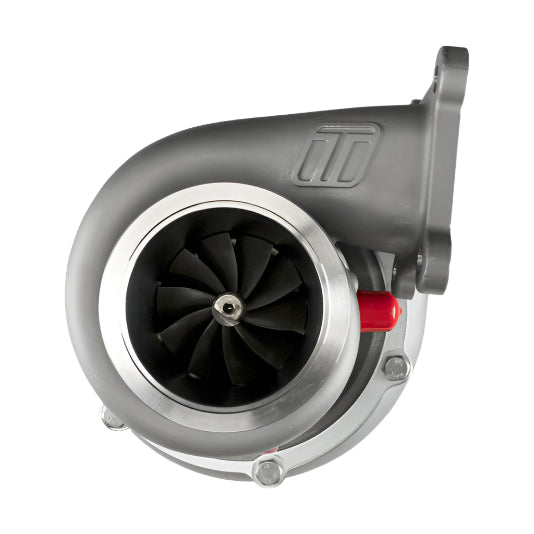

Turbosmart Water Cooled 5862 T4 0.82AR Externally Wastegated TS-2 Turbocharger

Turbosmart
TURTS-2-5862B-T4082E
9329677030297
Turbochargers
Out of stock
$ 2,389.99 $ 2,150.99

SKU: TS-2-5862B-T4082E | UPC: 9329677030297

Turbosmart Water Cooled 5862 T4 0.82AR Externally Wastegated TS-2 Turbocharger

This Turbosmart TS-2 turbocharger features a 58mm compressor inducer, 62mm turbine exducer, T4 inlet flange and 0.82AR V-band outlet housing with external wastegate provision. Designed for 600-750HP performance builds on engines like Toyota 2JZ-GTE, Nissan RB26DETT and Mitsubishi 4G63T, it delivers quick spool from low rotating mass and aggressive aerodynamics. Water and oil cooling plus included fittings ensure reliable operation in demanding motorsport or street applications.

Key Features

  • Fast Transient Response: Proprietary dual ceramic bearing system and ultra-low rotating mass enable rapid boost buildup at lower shaft speeds for immediate power delivery
  • 7+7 Splitter Compressor Wheels: Aggressive aerodynamics with extended tip height splitters provide high efficiency and flow for strong mid-range torque and top-end power
  • Lightweight Turbine Housing: Investment cast 310 stainless steel construction reduces weight while handling extreme EGTs with T14 Inconel wheel
  • Aluminium Compressor Cover: Lightweight design paired with CFD-optimized flow paths supports 600-750HP without compromising response
  • VSR Balanced Assembly: Precision balancing and integrated iron backplate on center housing ensure durability and smooth operation at high RPM

Product Notes

  • Includes weld flanges, V-band clamps, gaskets, oil feed/drain fittings and water feed/return fittings for complete installation
  • Externally wastegated design requires separate wastegate. supports common Tial or V-band units
  • Weight 6.06kg / 13.3lbs. compact size fits tight engine bays in custom turbo setups

Installation Notes

  • Professional installation recommended.
  • Uses standard T4 divided or undivided manifold flange. verify manifold compatibility for optimal flow
  • Oil and water lines must be routed per included fittings. prime oil system before startup

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra 2JZ-GTE Turbo
1989-2002 Nissan Skyline R32/R33/R34 GT-R RB26DETT
1989-2005 Mitsubishi Eclipse/Evo/Lancer DSM 4G63T / Evo 4G63T
1989-2002 Nissan 240SX/Silvia S13/S14/S15 RB25DET
1990-2005 Universal Performance Builds 2.0-3.0L Inline Engines

Why Choose Turbosmart?

  • Motorsport-proven designs trusted by racers worldwide for consistent results
  • Advanced materials like Inconel and 310 stainless withstand high heat and boost levels
  • Factory-direct engineering focuses on reduced backpressure and spool for real-world gains

Frequently Asked Questions

  • Q: What engines does the TS-2 5862 turbo fit best?
    A: Powers 600-750HP on 2.0-3.0L engines including Toyota 2JZ-GTE, Nissan RB-series and Mitsubishi 4G63T with custom T4 manifolds
  • Q: What materials are used in construction?
    A: T14 Inconel turbine wheel, 310s stainless turbine housing, aluminium compressor cover and dual ceramic bearings for heat resistance and lightness
  • Q: What is included for installation?
    A: All fittings, flanges, clamps and gaskets supplied. external wastegate sold separately

Shipping & Handling

  • Method: Ground shipping via UPS/FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Securely boxed to prevent damage
  • Weight: 6.06kg / 13.3lbs

Request For Information

Have questions about Turbosmart Water Cooled 5862 T4 0.82AR Externally Wastegated TS-2 Turbocharger? Fill out the form below and we'll get back to you by the next business day.
