TURTS-2-5862B-VB082E-Turbosmart Water Cooled 5862 V-Band 0.82AR Externally Wastegated TS-2 Turbocharger-Turbochargers-Turbosmart
Click to zoom in

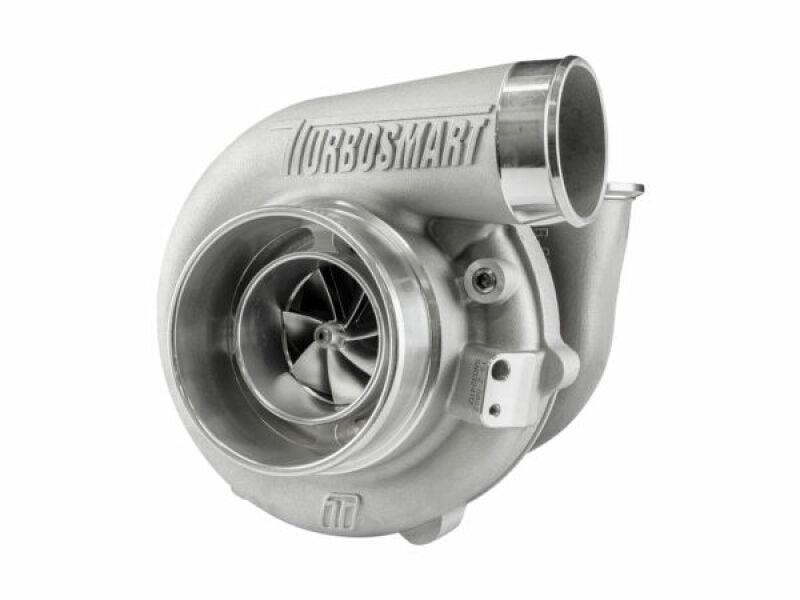

Turbosmart Water Cooled 5862 V-Band 0.82AR Externally Wastegated TS-2 Turbocharger

Turbosmart
TURTS-2-5862B-VB082E
9329677030099
Turbochargers
Out of stock
$ 2,480.99 $ 2,232.89

SKU: TS-2-5862B-VB082E | UPC: 9329677030099

Turbosmart Water Cooled 5862 V-Band 0.82AR Externally Wastegated TS-2 Turbocharger for 2JZ RB26 LS

Upgrade your engine with the Turbosmart TS-2 5862 turbocharger a water cooled dual ball bearing unit designed for 500-650HP performance builds. This V-band turbo fits popular platforms like Toyota 2JZ-GTE Nissan RB26DETT and GM LS engines using compatible manifolds. Expect fast spool low lag and high efficiency from its forged compressor and Inconel turbine wheels.

Key Features

  • Water Cooled CHRA: Dual ceramic ball bearings with water cooling reduce underhood heat extend CHRA life during extended track sessions
  • Forged Billet Compressor Wheel: 58mm inducer 71.4mm exducer 60 trim delivers high airflow up to 650HP at 1.4bar boost with extended tip efficiency
  • Inconel Turbine Wheel: 68.12mm inducer 62.29mm exducer 84 trim withstands extreme EGTs for reliable power in high boost applications
  • V-Band Housings: Compressor inlet outlet and turbine outlet V-band design ensures leak-free connections quick disassembly for maintenance
  • 0.82AR T4 Divided Turbine Housing: External wastegate port optimizes exhaust flow balances spool time and top-end power for street strip use

Product Notes

  • Requires external wastegate sold separately for full boost control
  • Oil and water line fittings included CHRA pre-balanced from factory
  • Special order item allow 3-7 business days for processing

Installation Notes

  • Professional installation recommended.
  • Uses T4 divided inlet flange pair with V-band turbine manifold and external wastegate like Turbosmart IWG75
  • Includes V-band clamps gaskets verify manifold compatibility before install

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra 2JZ-GTE Turbo
1989-1994 Nissan Skyline GT-R R32 RB26DETT
1995-1998 Nissan Skyline GT-R R33 RB26DETT
1999-2002 Nissan Skyline GT-R R34 RB26DETT
2004-2021 Subaru WRX STI EJ257
1990-2005 Mitsubishi Evolution 4G63 Evo VI-IX
1997-2013 Chevrolet Corvette LS1 LS6 C5

Why Choose Turbosmart?

  • Motorsport heritage with World Time Attack podium finishes
  • Investment cast housings CNC machined for precision fit
  • Engineered in Australia for demanding street and track conditions

Frequently Asked Questions

  • Q: What engines does the TS-2 5862 fit best
    A: Direct fit for 2JZ-GTE RB26DETT EJ257 4G63 with T4 V-band manifolds ideal for 500-650HP upgrades
  • Q: What materials are used in construction
    A: High-flow billet aluminum compressor Inconel turbine wheel investment cast housings for durability
  • Q: What warranty coverage applies
    A: Turbosmart offers 24 month warranty on CHRA contact retailer for details requires proper install

Shipping & Handling

  • Method: UPS Ground or FedEx Ground
  • Availability: Special order ships in 3-7 business days
  • Packaging: Secure foam-lined box 20 x 16 x 16 inches
  • Weight: 19.4 lbs
