Turbosmart Water Cooled 6262 V-Band Inlet/Outlet A/R 0.82 IWG75 Wastegate TS-2 Turbocharger

Turbosmart
TURTS-2-6262B-VB082I
9329677030013
Turbochargers
13 Units In Stock - Ships Next Business Day
$ 2,704.99 $ 2,434.49
$ 2,434.49

SKU: TS-2-6262B-VB082I | UPC: 9329677030013

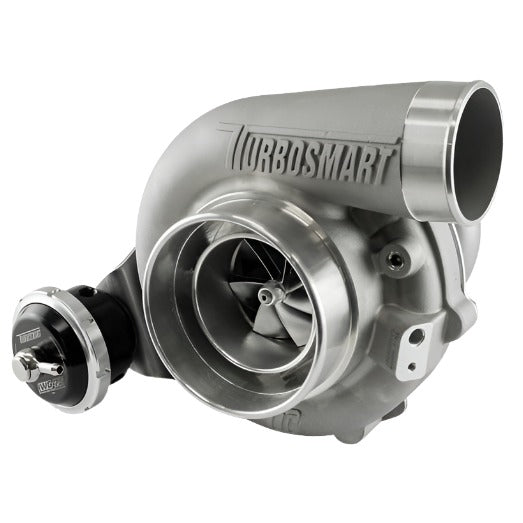

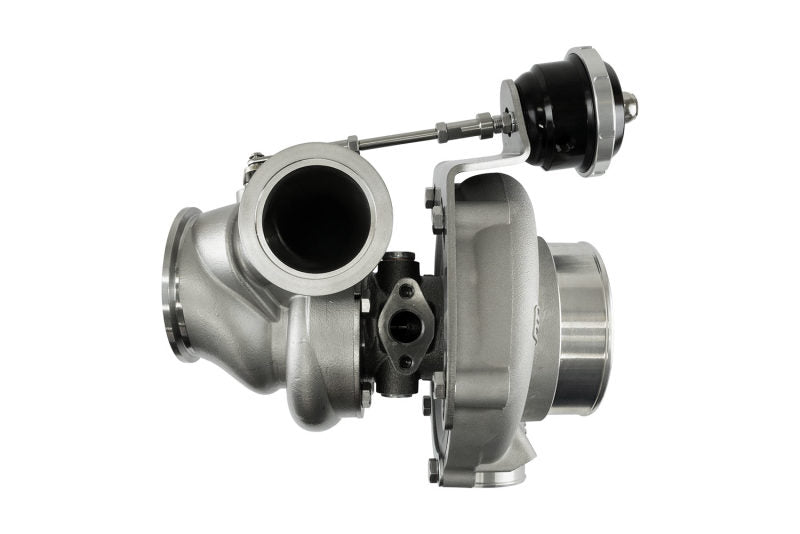

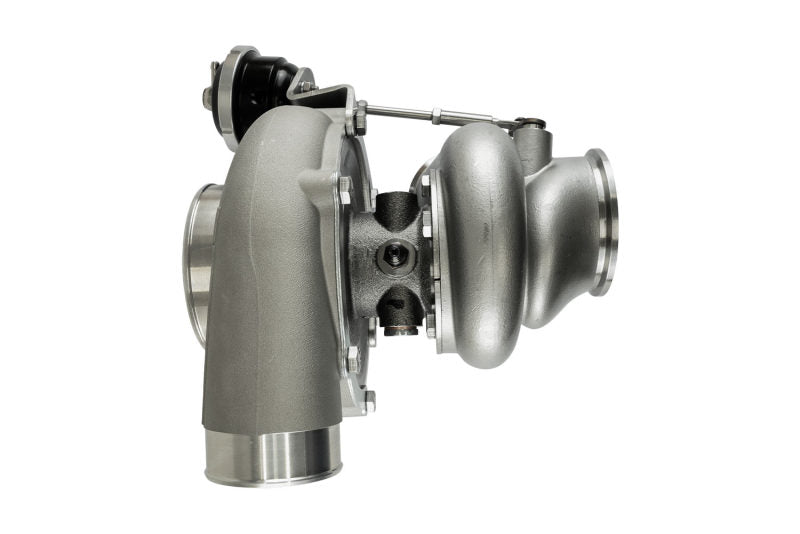

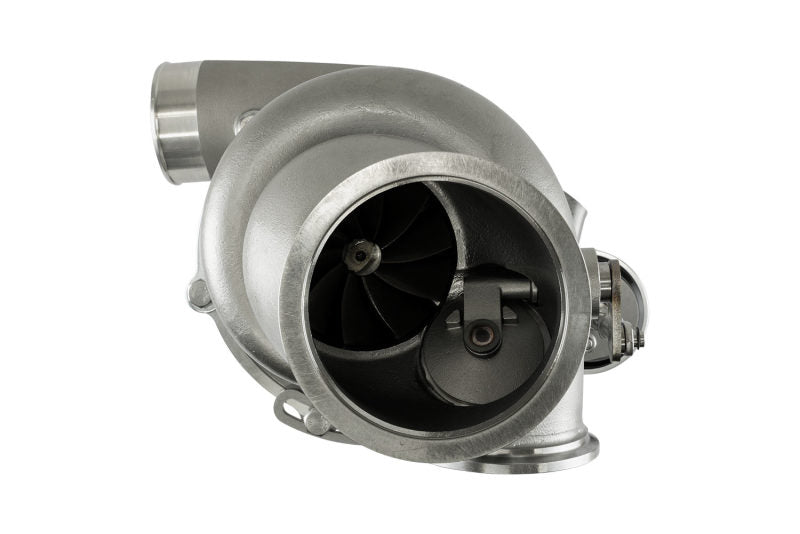

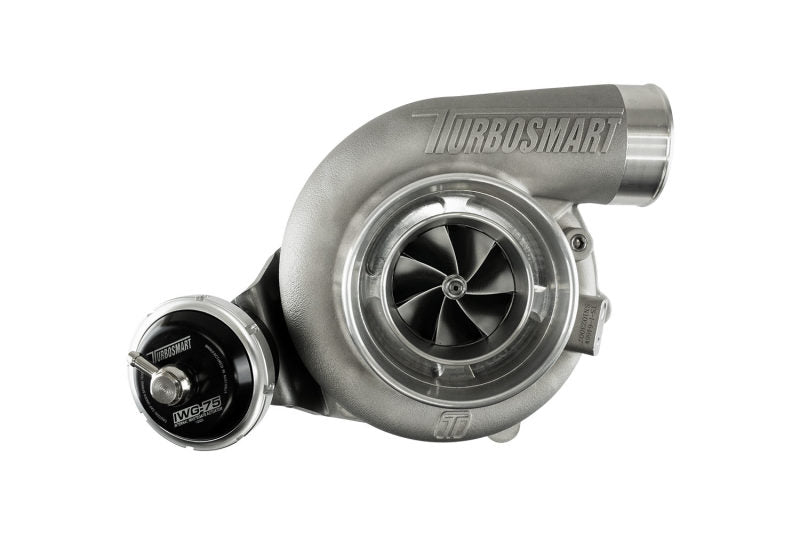

Turbosmart Water Cooled 6262 V-Band Inlet/Outlet A/R 0.82 IWG75 Wastegate TS-2 Turbocharger

The Turbosmart TS-2 6262 turbocharger delivers quick spool and high power for motorsport and street builds. Water and oil cooled design suits engines like Toyota 2JZ-GTE, Nissan RB26DETT, and custom setups targeting 400-700hp. Lightweight construction and advanced aerodynamics reduce backpressure for better response and flow.

Key Features

  • Water and Oil Cooled CHRA: Supports high boost and track use with reliable cooling to prevent heat soak
  • Lightweight Investment Cast Turbine Housing: Cuts weight by 20% over competitors for faster spool and easier handling
  • Proprietary Bearing and Shaft Assembly: Ultra-low rotating mass enables instant transient response at low RPM
  • Aggressive Compressor Wheel (62/82mm): 62mm inducer, 82mm exducer provides strong mid-range torque and top-end power
  • 62mm Turbine Wheel in A/R 0.82 Housing: V-band inlet/outlet with IWG75 actuator maintains flow under high load

Product Notes

  • Oil feed M12x1.25, drain M8x1.25, water ports M14x1.5 for standard plumbing
  • IWG75 actuator preset at 14psi, adjustable with springs for custom boost

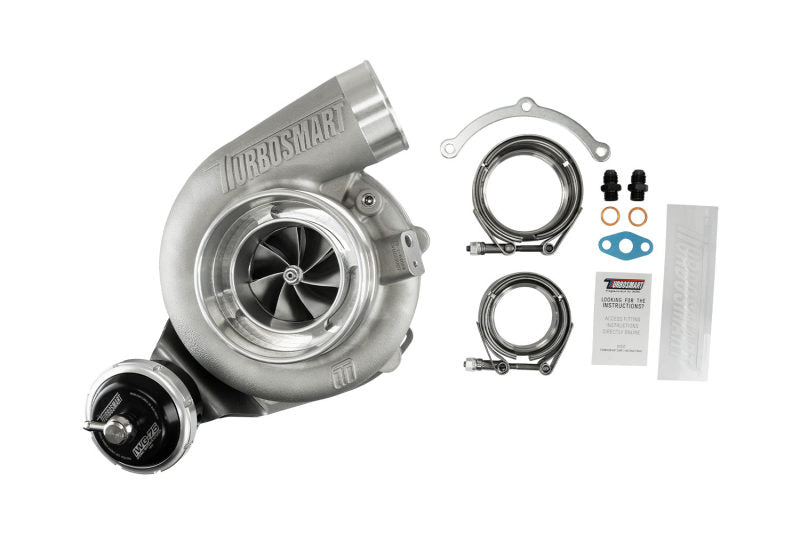

  • V-band clamps and gaskets included for quick assembly

Installation Notes

  • Professional installation recommended.
  • Supply clean 5w-40 or 10w-60 synthetic oil at 60-80psi feed pressure
  • Route water lines from engine block or radiator, compatible with AN-4 fittings

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra 2JZ-GTE
1989-1994 Nissan Skyline R32 GT-R RB26DETT
1995-1998 Nissan Skyline R33 GT-R RB26DETT
1999-2002 Nissan Skyline R34 GT-R RB26DETT
Universal Various Performance Builds Inline-6, V8 400-700hp

Why Choose Turbosmart?

  • Motorsport heritage with World Time Attack and drag wins
  • Australian engineered for extreme conditions and durability
  • Global dealer network and direct tech support

Frequently Asked Questions

  • Q: What power range does the TS-2 6262 support?
    A: Rated for 400-700 rear wheel horsepower on 2.0-3.2L engines with proper fueling and tuning
  • Q: Is the turbine wheel Inconel?
    A: Yes, Inconel turbine wheel and 360-degree stainless steel exhaust housing resist high exhaust temps
  • Q: What is the warranty?
    A: 12-month unlimited mileage warranty with registration, covers defects in materials and workmanship

Shipping & Handling

  • Method: UPS or FedEx Ground
  • Availability: Special order ships within 3-7 business days
  • Packaging: Protective double-wall carton 24x18x16 inches
  • Weight: 29.5 lbs product, 35 lbs shipping
