SKU: TS-2-6466B-T3082E | UPC: 9329677030150

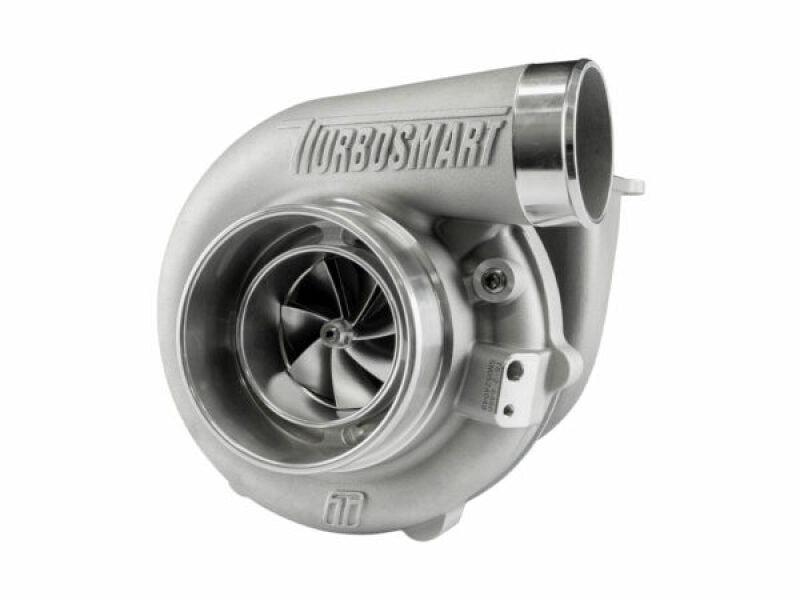

Universal Fit Turbosmart Water Cooled 6466 T3 0.82AR Externally Wastegated TS-2 Turbocharger
This Turbosmart TS-2 turbocharger features a 64mm billet compressor wheel and 66mm turbine wheel in a T3 0.82AR housing for 450-850HP applications. It suits performance builds on engines like Toyota 2JZ-GTE Nissan RB26DETT and GM LS series with custom T3 manifolds. Ball bearing construction and water cooling provide quick spool times and sustained high boost levels for drag street and track use.
Key Features
- Dual Ball Bearing CHRA: Cuts friction for 25% faster spool and 30% more load capacity versus journal bearings
- Water Cooled Housing: Manages heat in extreme conditions to prevent oil coking and extend service life
- Billet 64/84mm Compressor Wheel: 9-blade extended tip design flows 75lb/min for broad efficiency map
- 66mm Inconel Turbine Wheel: Paired with 0.82AR T3 divided housing for balanced response and power
- Externally Wastegated: V-band outlet and open turbine scroll allow precise boost control with Turbosmart wastegates
Product Notes
- Requires professional tuning and supporting mods like fuel system and intercooler
- Use high quality synthetic oil and follow break-in procedure for longevity
- Heavy precision component ships freight protected in double wall box
Installation Notes
- Professional installation recommended.
- Needs T3 divided inlet manifold V-band turbine outlet clamp and external wastegate
- Compatible with Turbosmart IWG75 or GenV wastegates using included adapter
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993-1998 | Toyota | Supra | 2JZ-GTE |
| 1989-2002 | Nissan | Skyline GT-R | RB26DETT R32/R33/R34 |
| 1997-2004 | Chevrolet | Corvette | LS1 C5 |
| 1998-2002 | Chevrolet | Camaro | LS1 |
| Universal | - | 4/6 Cylinder Builds | 450-850HP |
Why Choose Turbosmart?
- Motorsport heritage from Australian Pro Series and Top Doorslammer drag racing
- Investment cast 347 stainless housings resist cracking under boost
- Hand assembled with 100% compressor wheel balancing for zero vibration
Frequently Asked Questions
-
Q: Will this bolt up to my 2JZ-GTE manifold?
A: Direct fit to aftermarket T3 divided manifolds common on Supra builds pairs perfectly with 0.82AR for street and strip -
Q: What materials are used in construction?
A: Billet 2618 compressor wheel Inconel turbine NiResist housing and 347SS compressor cover for heat and corrosion resistance -
Q: What warranty coverage applies?
A: 24 month unlimited mileage warranty covers defects when installed and maintained per guidelines
Shipping & Handling
- Method: Ground parcel or LTL freight for heavy item
- Availability: Special order ships within 5-10 business days
- Packaging: Secure foam insert double wall box 18x14x14 inches
- Weight: 24 lbs
