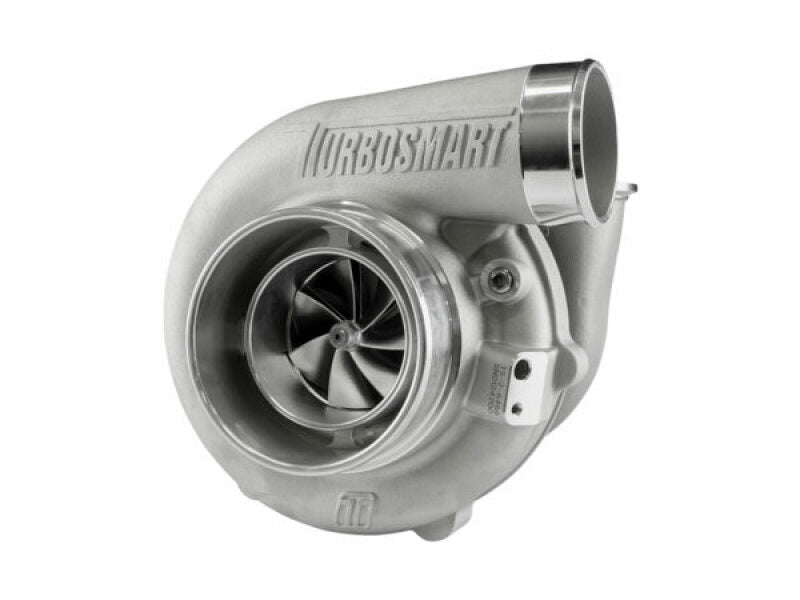

Turbosmart Water Cooled 6466 V-Band 1.07AR Externally Wastegated TS-2 Turbocharger

Turbosmart
TURTS-2-6466B-VB107E
9329677030372
Turbochargers
Out of stock
$ 2,704.99 $ 2,434.49

SKU: TS-2-6466B-VB107E | UPC: 9329677030372

Turbosmart Water Cooled 6466 V-Band 1.07AR Externally Wastegated TS-2 Turbocharger

This Turbosmart TS-2 6466 turbocharger delivers massive airflow for engines from 2.0L to 4.0L making 450-800HP. It fits popular performance builds like Toyota 2JZ-GTE and Nissan RB26DETT swaps with V-band housings for quick bolt-on setup. Ball-bearing CHRA and water cooling ensure fast spool and reliable operation under high boost.

Key Features

  • Monoblock Billet Compressor Wheel: 64.8mm inducer 83mm exducer with 8.25mm extended tips flows 110+ lb/min for quick response and high top-end power.
  • Forged Billet Turbine Wheel: 66mm inducer 68mm exducer in 1.07 A/R V-band housing supports external wastegates for precise boost control up to 40psi.
  • Dual Ceramic Ball Bearings: Reduces friction for 25% faster spool time over journal bearings with 240% overspeed capability.
  • Water and Oil Cooled CHRA: Maintains low center housing temperatures during extended track sessions extending component life.
  • V-Band Clamp Housings: 4" inlet 3" outlet compressor and turbine housings allow leak-free connections and easy disassembly.

Product Notes

  • Requires external wastegate sold separately like Turbosmart GenV IWG75 or Race Port.
  • Oil feed restrictor kit included for proper lubrication setup.
  • Special order item ships within 3-5 business days from Turbosmart stock.

Installation Notes

  • Professional installation recommended.
  • Uses standard -4AN oil feed and -5AN drain lines with provided fittings.
  • Compatible with T3 to V-band adapter flanges for manifold mounting.

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra Turbo 2JZ-GTE
1989-1994 Nissan Skyline GT-R R32 RB26DETT
1995-1998 Nissan Skyline GT-R R33 RB26DETT
1999-2002 Nissan Skyline GT-R R34 RB26DETT
1986-1992 Toyota Supra Turbo 7M-GTE

Why Choose Turbosmart?

  • Motorsport-proven in World Time Attack and drag racing with championship wins.
  • Investment cast housings and CNC billet wheels built for daily and track abuse.
  • Integrated boost solenoid port and plug-and-play design from Australian engineers.

Frequently Asked Questions

  • Q: What power levels does the TS-2 6466 support?
    A: Rated for 450-800HP on 2.0-4.0L engines with proper fueling and tuning ideal for 2JZ RB26 and LS swaps.
  • Q: Does it include water cooling fittings?
    A: Yes CHRA accepts M14x1.5 water ports with -6AN fittings for direct hookup to engine block.
  • Q: What warranty coverage?
    A: Limited lifetime on CHRA for street use 2 years on housings with registration required.

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Secure foam-packed box 18x15x15 inches
  • Weight: 26 lbs
