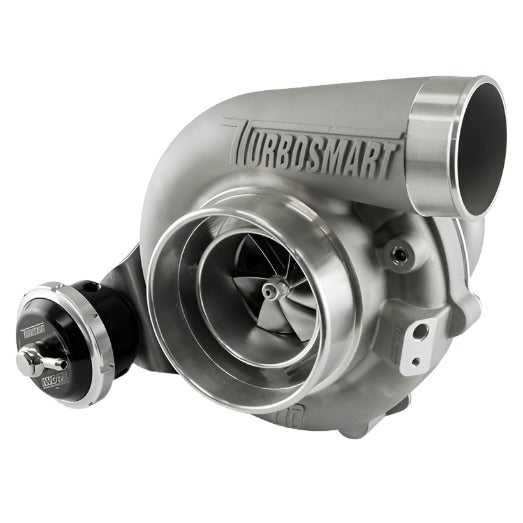

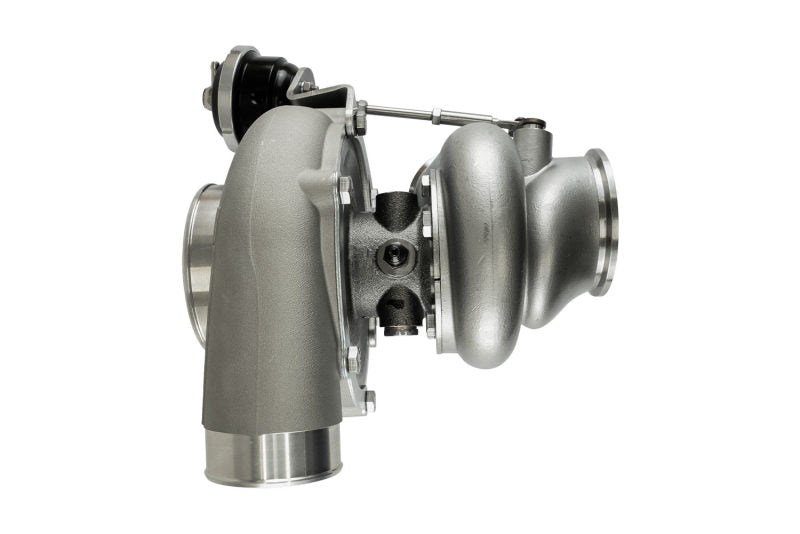

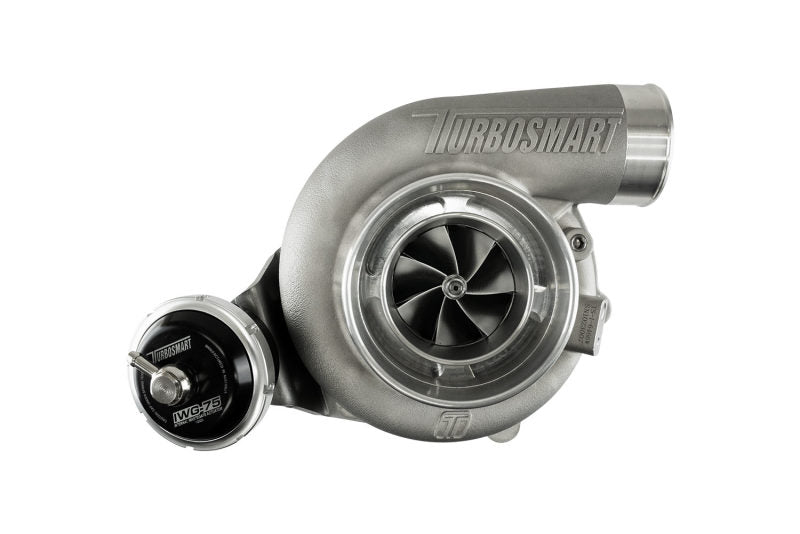

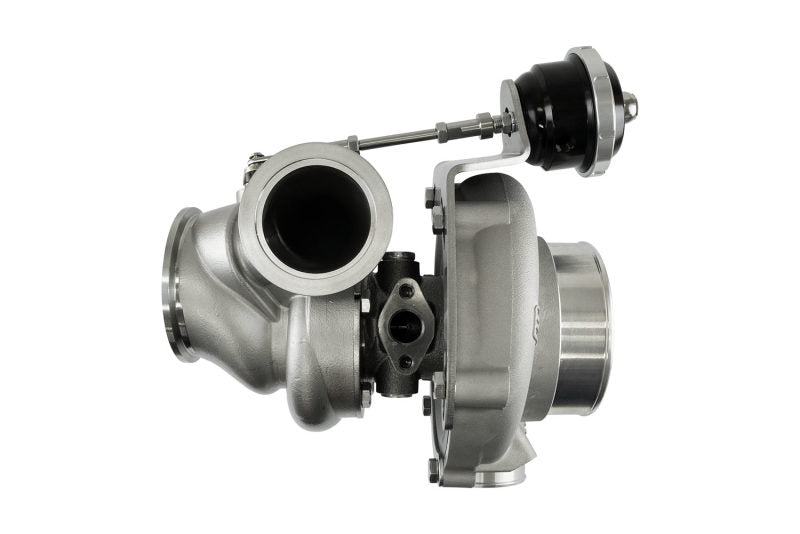

Turbosmart Water Cooled 6466 V-Band Inlet/Outlet A/R 0.82 IWG75 Wastegate TS-2 Turbocharger

Turbosmart
TURTS-2-6466B-VB082I
9329677029147
Turbochargers
3 Units In Stock - Ships Next Business Day
$ 2,959.99 $ 2,663.99
$ 2,663.99

SKU: TS-2-6466B-VB082I | UPC: 9329677029147

Turbosmart Water Cooled 6466 V-Band Inlet/Outlet A/R 0.82 IWG75 Wastegate TS-2 Turbocharger

This Turbosmart TS-2 turbocharger builds high boost with fast transient response for motorsport and street performance vehicles including popular 2JZ-GTE, RB26DETT, and LS engine swaps. Water and oil cooled design with V-band housings ensures reliable power from 500 to 850HP while reducing backpressure and weight compared to traditional turbos. Lightweight construction spools quicker at lower RPM for everyday drivability and track dominance.

Key Features

  • Water and Oil Cooled CHRA: Dual ceramic ball bearing system with water cooling extends bearing life under extreme heat and provides ultra quick spool times.
  • Investment Cast Turbine Housing: Lightweight T6 material in 0.82 A/R with V-band flanges reduces weight and backpressure for sustained high flow and power.
  • Proprietary Shaft and Bearing: Low rotating mass design delivers response never seen before matching aggressive 64/82mm billet compressor wheel.
  • High Flow Turbine Wheel: 66/74mm Inconel wheel maintains efficiency at high loads ensuring broad powerband from low to redline.
  • IWG75 Internal Wastegate: Integrated 14psi actuator with V-band outlet simplifies plumbing and controls boost precisely across RPM range.

Product Notes

  • Custom exhaust and intake piping required for installation on most applications.
  • Prime oil system and restrict oil feed to 40psi maximum before engine start.
  • Special order item with manufacturer direct fulfillment for freshest stock.

Installation Notes

  • Professional installation recommended.
  • Supply -4AN oil feed, -10AN oil drain, and 1/2" water lines with fittings.

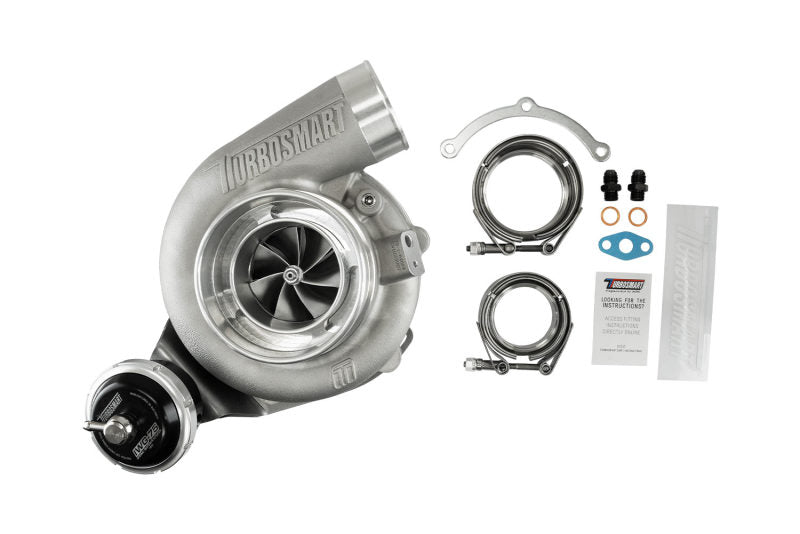

  • V-band clamps and gaskets included for turbine and compressor housings.

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra 2JZ-GTE Turbo
1989-2002 Nissan Skyline GT-R RB26DETT
1997-2013 Chevrolet Corvette / Camaro / Truck LS1 LS2 LS3
1993-2002 Toyota GS300 / Aristo 2JZ-GTE
1989-1994 Nissan 300ZX Z32 Twin Turbo

Why Choose Turbosmart?

  • Proven in global motorsport with race-winning reliability.
  • Precision engineered from billet compressor to Inconel turbine.
  • Direct support from Australian design team for custom setups.

Frequently Asked Questions

  • Q: Will this turbo fit a stock 2JZ-GTE Supra manifold?
    A: Fits with adapter or custom T3 to V-band flange kit, common upgrade for 600+HP builds.
  • Q: What materials are used in construction?
    A: Billet aluminum compressor wheel, Inconel turbine wheel, investment cast housings, stainless steel wastegate components.
  • Q: What warranty coverage applies?
    A: 24 month unlimited km warranty on manufacturing defects with proper installation and maintenance.

Shipping & Handling

  • Method: UPS Ground / FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Original Turbosmart double-boxed protection, 18 x 16 x 16 inches
  • Weight: 19.8 lbs
