TS-2-6870B-T4082E

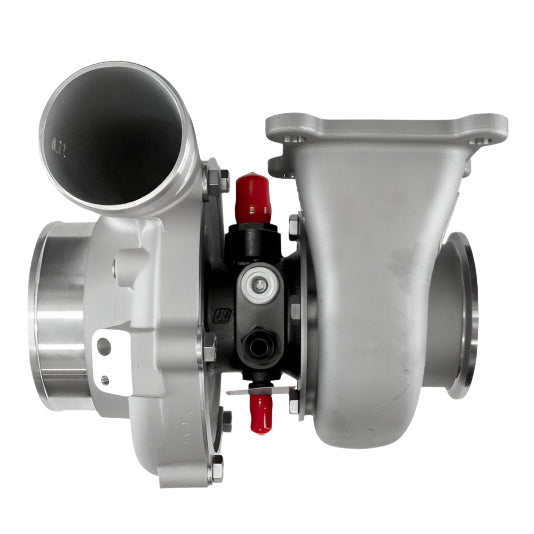

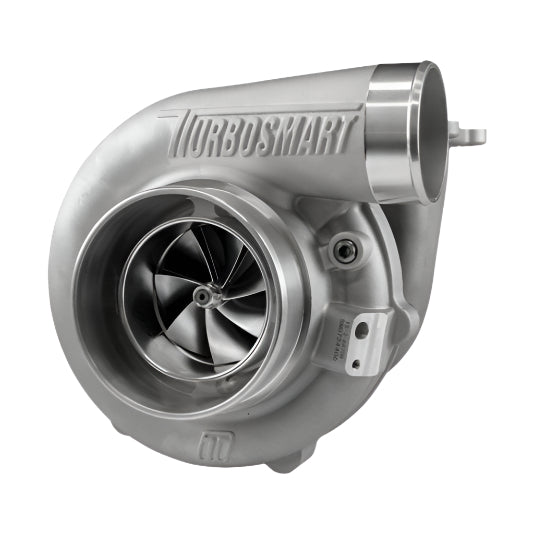

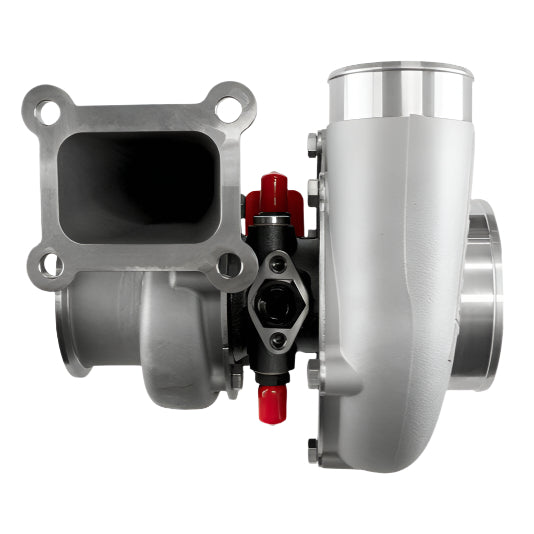

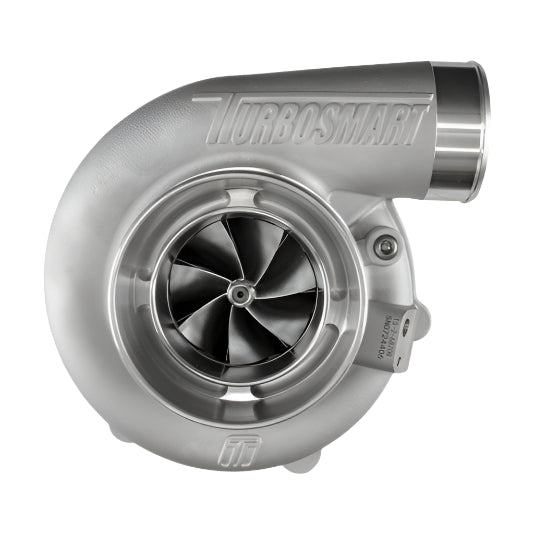

TS-2 Performance Turbocharger (Water Cooled) 6870 (Kompact) T4 0.82AR Externally Wastegated
TS-2 Performance Turbocharger (Water Cooled) 6870 (Kompact) T4 0.82AR Externally Wastegated
TS-2 Performance Turbocharger (Water Cooled) 6870 (Kompact) T4 0.82AR Externally Wastegated
TS-2-6870B-T4082E
Click to zoom in

Turbosmart Water Cooled 6870 (Kompact) T4 0.82AR Externally Wastegated TS-2 Turbocharger

Turbosmart
TURTS-2-6870B-T4082E
9329677031171
Turbochargers
2 Units In Stock - Ships Next Business Day
$ 3,008.99 $ 2,708.09
$ 2,708.09

SKU: TS-2-6870B-T4082E | UPC: 9329677031171

Water Cooled 6870 (Kompact) T4 0.82AR Externally Wastegated TS-2 Turbocharger

This Turbosmart TS-2 turbocharger delivers 850-990HP for performance builds on engines like Toyota 2JZ-GTE and Nissan RB26DETT with T4 manifolds. Water and oil cooled design with lightweight construction ensures fast spool and sustained power. Includes weld flanges, V-band clamps, gaskets, oil and water fittings for complete installation.

Key Features

  • Unparalleled transient response: Proprietary dual ceramic bearing system and low-mass shaft enable rapid boost buildup for track or street use.
  • Aggressive aerodynamics: 7+7 2618 Aluminium splitter wheels provide efficient airflow at low and high RPM.
  • Lightweight turbine housing: 310s stainless steel investment casting reduces weight while handling extreme EGTs.
  • 713C Inconel turbine wheel: 70mm exducer withstands high temperatures for reliable high-HP operation.
  • VSR speed balanced: Ensures smooth operation up to redline with integrated iron backplate on center housing.

Product Notes

  • Externally wastegated for precise boost control with aftermarket valve.
  • CFD-optimized housings for best flow and AR matching.
  • Product weight 6.06kg / 13.3lbs, compact for tight engine bays.

Installation Notes

  • Professional installation recommended.
  • Requires T4 divided inlet manifold and external wastegate provision.
  • Oil feed M14x1.5, drain M8x1.25, water fittings 4AN included.

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra 2JZ-GTE
1989-1994 Nissan Skyline GT-R R32 RB26DETT
1995-1999 Nissan Skyline GT-R R33 RB26DETT
1999-2002 Nissan Skyline GT-R R34 RB26DETT
1997-2004 Chevrolet Corvette C5 LS1

Why Choose Turbosmart?

  • Proven in motorsport with direct OEM-level support.
  • Advanced materials like Inconel and 2618 alloy for durability.
  • Precision engineering for reduced backpressure and high flow.

Frequently Asked Questions

  • Q: Does this fit my 2JZ-GTE Supra?
    A: Yes, pairs with T4 manifold kits for MK4 Supra, supports 850-990HP with proper fueling and tuning.
  • Q: What materials are used in the turbine?
    A: 713C Inconel wheel and 310s stainless housing handle 1050C+ EGTs reliably.
  • Q: What warranty is included?
    A: 2-year unlimited mileage warranty with registration, covers defects in materials and workmanship.

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Original Turbosmart box, 16x16x16 inches
  • Weight: 13.3lbs

Request For Information

Have questions about Turbosmart Water Cooled 6870 (Kompact) T4 0.82AR Externally Wastegated TS-2 Turbocharger? Fill out the form below and we'll get back to you by the next business day.
