Turbosmart Water Cooled 6870 (Kompact) T4 0.96AR Externally Wastegated TS-2 Turbocharger

Turbosmart
TURTS-2-6870B-T4096E
9329677031188
Turbochargers
1 Units In Stock - Ships Next Business Day
$ 3,008.99 $ 2,708.09
$ 2,708.09

SKU: TS-2-6870B-T4096E | UPC: 9329677031188

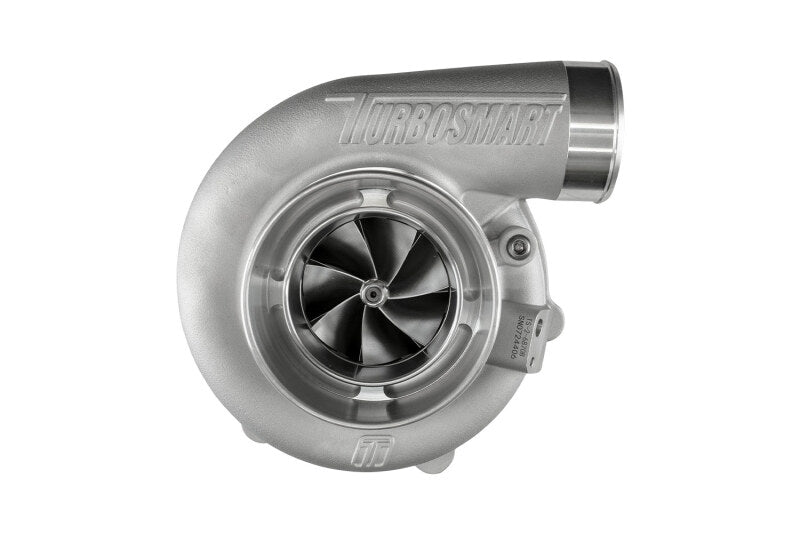

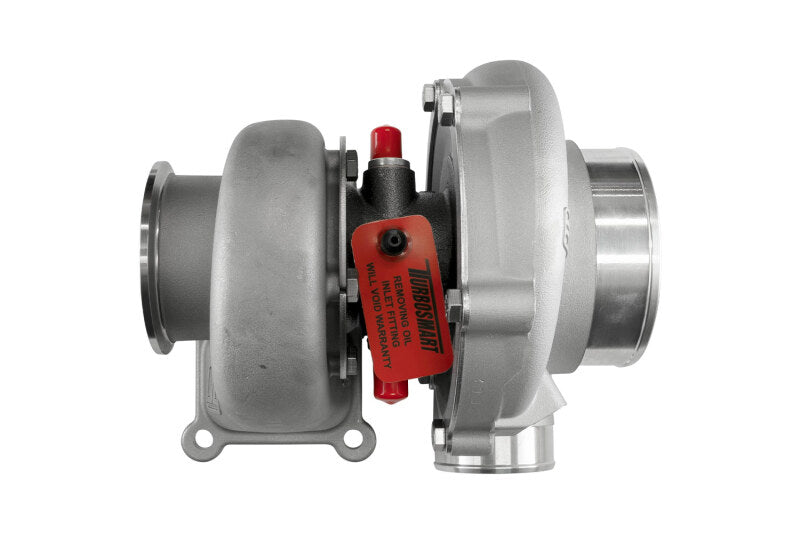

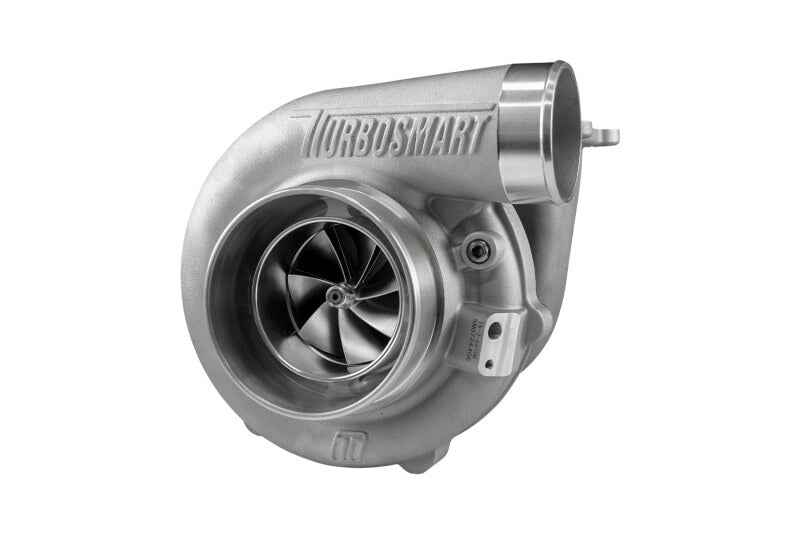

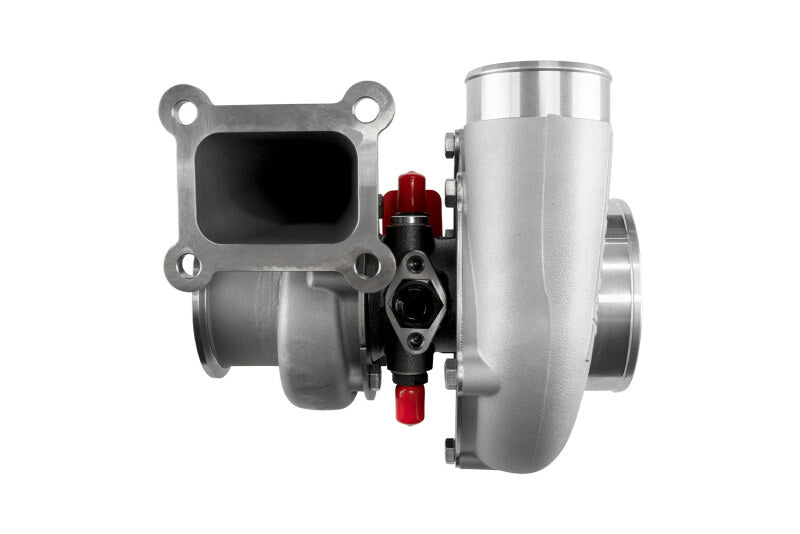

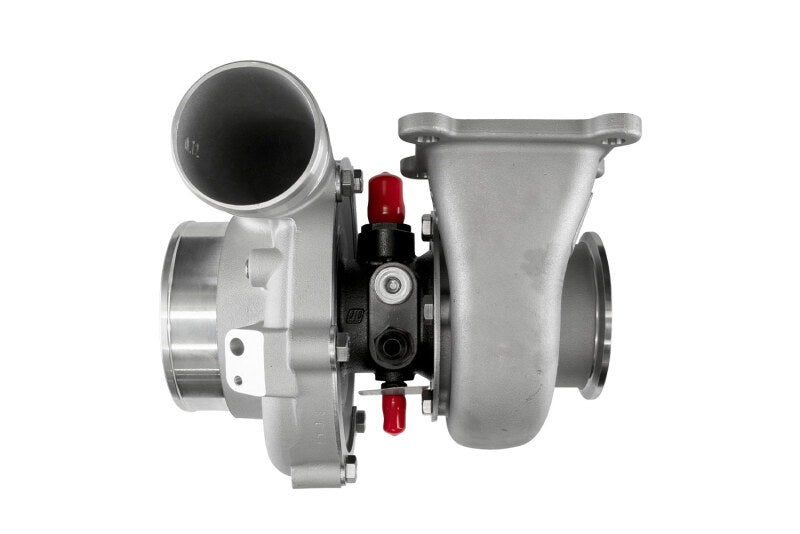

Turbosmart Water Cooled 6870 (Kompact) T4 0.96AR Externally Wastegated TS-2 Turbocharger

This Turbosmart TS-2 6870 Kompact turbocharger features a water-cooled dual ball bearing CHRA and T4 divided 0.96AR turbine housing with external wastegate provision for quick spool and high power. It fits custom setups on Toyota 2JZ-GTE, Nissan RB26DETT, GM LS engines and more, supporting 750-1000HP applications with low lag. The billet compressor and Inconel turbine deliver reliable boost across a broad RPM range.

Key Features

  • Water-Cooled CHRA: Dual ceramic ball bearings with water cooling reduce EGTs by up to 120C for extended bearing life under high boost
  • Billet 2618 Compressor Wheel: 68mm inducer 96.9mm OD exducer design provides 750-1000HP flow with surge resistance and 15% more efficiency
  • Inconel Turbine Wheel: 70mm exducer growth-balanced wheel handles 1400C+ temperatures for durability in racing conditions
  • T4 0.96AR Divided Housing: Optimized for 3500-6500RPM spool while flowing 65+ lb/min exhaust for top-end power
  • External Wastegate Port: Direct 44mm+ WG compatibility enables precise boost control without internal restrictions

Product Notes

  • Special order item, allow 2-4 weeks lead time if out of stock
  • Oil and water line fittings included, verify manifold compatibility
  • Clearance item, limited stock, ships via ground freight under 150lbs

Installation Notes

  • Professional installation recommended.
  • Requires V-band clamps for T4 flange and compressor inlet/outlet
  • Compatible with Turbosmart Race Port WG and oil/water fittings

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra 2JZ-GTE
1989-2002 Nissan Skyline GT-R RB26DETT
1997-2013 Chevrolet Corvette LS1/LS6
1998-2002 Chevrolet Camaro/Firebird LS1
Universal Custom 2JZ/RB/LS Builds 750-1000HP

Why Choose Turbosmart?

  • Engineered in Australia for motorsport with World Time Attack wins
  • Investment cast housings and billet wheels for street-strip reliability
  • Dynamic balance tested to 250000RPM for zero vibration

Frequently Asked Questions

  • Q: Will this turbo bolt up to my 2JZ manifold?
    A: Fits T4 divided manifolds like Precision or CXRacing, V-band outlet requires adapter for stock-style
  • Q: What material is the turbine housing?
    A: High-temp Ni-Resist casting with divider wall for pulse efficiency, rated to 1050C
  • Q: What warranty applies?
    A: 12-month unlimited mileage with registration, covers defects when installed per guidelines

Shipping & Handling

  • Method: UPS Ground or FedEx Ground
  • Availability: Clearance stock - ships same or next business day
  • Packaging: Foam-protected box 24x18x18 inches
  • Weight: 20.5 lbs
