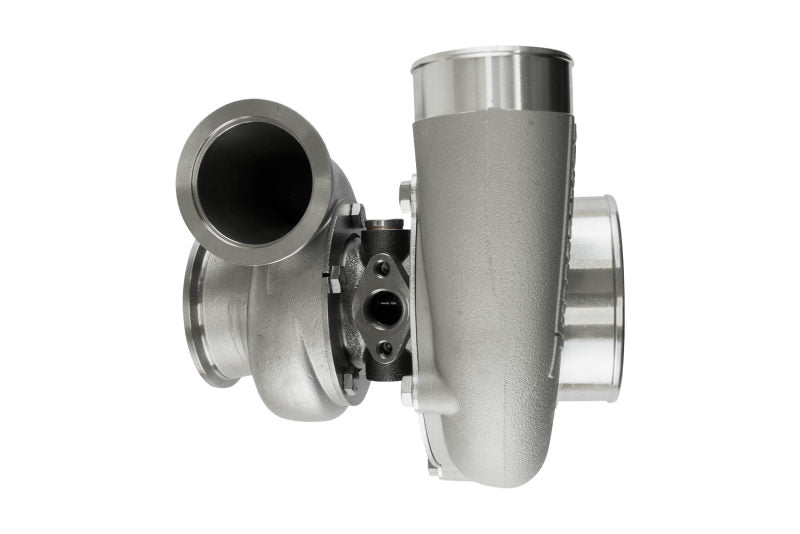

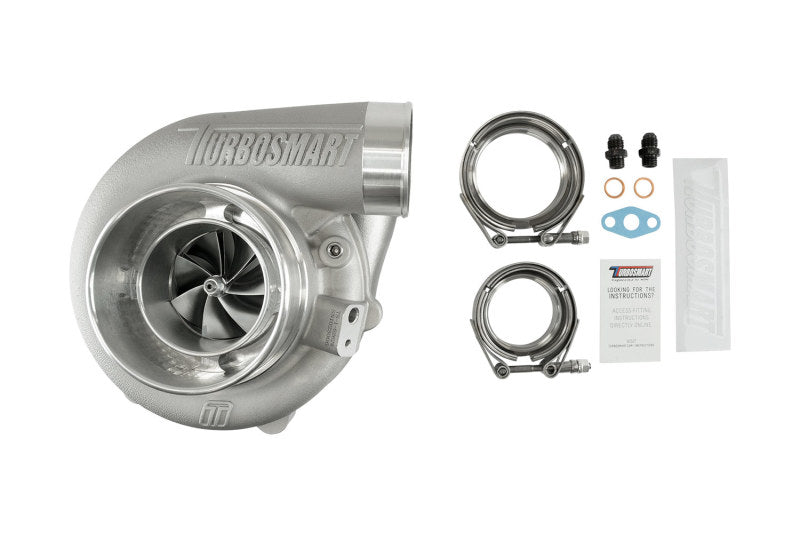

Turbosmart Water Cooled 7170 V-Band Inlet/Outlet A/R 0.96 External Wastegate TS-2 Turbocharger

Turbosmart
TURTS-2-7170B-VB096E
9329677029192
Turbochargers
20+ Units In Stock - Ships Next Business Day
$ 3,245.99 $ 2,921.39
$ 2,921.39

SKU: TS-2-7170B-VB096E | UPC: 9329677029192

Turbosmart Water Cooled 7170 V-Band Inlet/Outlet A/R 0.96 External Wastegate TS-2 Turbocharger

The Turbosmart TS-2 7170 turbocharger delivers water and oil cooling in a compact package for custom high-performance engine builds up to 1200 horsepower. Designed for motorsport and enthusiast applications it fits modified imports like 2JZ-GTE Supras LS engine swaps and RB26 Skylines with custom fabrication. Expect quick transient response reduced backpressure and sustained power through advanced aerodynamics and low rotating mass.

Key Features

  • Water and Oil Cooled CHRA: Dual ceramic ball bearing system with proprietary shaft lowers rotating mass for rapid spool-up and durability under extreme conditions
  • Forged Billet Compressor Wheel: 71mm inducer 97mm exducer 53 trim with aggressive aerodynamics provides high flow at lower RPMs for street-friendly power delivery
  • Inconel Turbine Wheel: 71mm inducer 64mm exducer 80 trim maintains boost and power at high loads in 750-1200HP setups
  • Lightweight Investment Cast Housing: V-band inlet/outlet turbine housing in T6 material reduces weight versus competitors for faster response and easier install
  • 0.96 A/R Turbine Housing: Optimized for external wastegate setups with anti-surge compressor cover ensures smooth boost transition in high-flow applications

Product Notes

  • External wastegate actuator and dump pipe required and sold separately
  • Supply dedicated oil feed/drain and water lines with proper fittings
  • Ships in protective packaging handling heavy-duty components carefully

Installation Notes

  • Professional installation recommended.
  • Custom intake and exhaust piping with V-band flanges required for fitment
  • Compatible with standard -4AN oil feed -10AN drain and 1/2" water lines

This Part Fits

Year Make Model Submodel
1993-1998 Toyota Supra Turbo 2JZ-GTE
1989-1994 Nissan Skyline GT-R R32 RB26DETT
1995-2002 Nissan Skyline GT-R R33-R34 RB26DETT
1997+ Chevrolet Camaro/Corvette LS1/LS2/LS3 Swaps
Universal Custom Performance Builds 2.5L-6.0L+ Engines

Why Choose Turbosmart?

  • Proven in global motorsport with drag racing and circuit wins
  • Investment cast housings and billet wheels built for daily and race abuse
  • Precision engineering from Australian HQ ensures consistent boost control

Frequently Asked Questions

  • Q: What engines does the TS-2 7170 fit best?
    A: Suited for 2.5L to 6.0L+ turbocharged engines like Toyota 2JZ Nissan RB26 and GM LS series in custom high-horsepower setups with adapter manifolds
  • Q: What wheel materials and specs are used?
    A: Forged fully machined billet aluminum compressor wheel 71/97mm Inconel turbine wheel 71/64mm investment cast T6 housings throughout
  • Q: What warranty coverage applies?
    A: Turbosmart provides limited warranty on CHRA components register product for details and support through authorized dealers

Shipping & Handling

  • Method: Ground shipping via LTL freight for heavy items
  • Availability: Special order typically ships in 5-10 business days
  • Packaging: Double-walled box 20 x 18 x 18 inches
  • Weight: 26 lbs
