SKU: TS-0551-1002 | UPC: 9329677018509

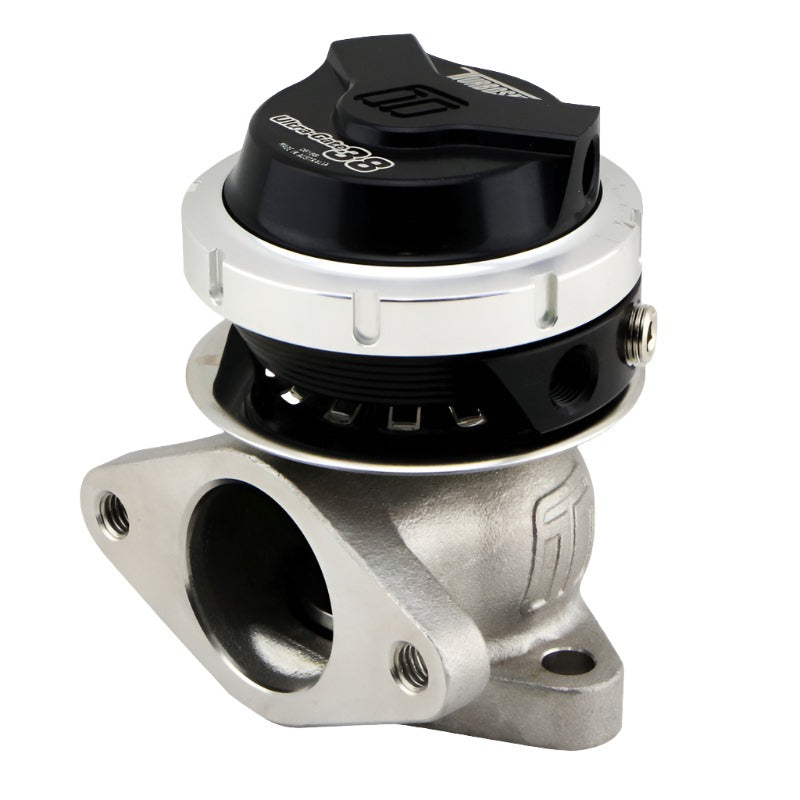

Turbosmart WG38 Gen V Ultragate 38 7psi Black External Wastegate
The Turbosmart WG38 Gen V Ultragate 38 7psi Black sets the standard for external wastegates in performance turbo applications. This 38mm unit provides reliable boost regulation for universal fit with V-band turbo housings on cars trucks and race vehicles. Its compact design and proven components ensure consistent operation under extreme conditions.
Key Features
- 38mm Valve Size: Delivers rapid response and high flow for effective boost management across 7psi base pressure
- V-Band Inlet and Outlet Flanges: Enables direct bolt-on compatibility with most aftermarket turbochargers without adapters
- Nitrogen-Charged Actuator: Liquid-filled for smooth operation and resistance to heat soak in demanding environments
- 347 Stainless Steel Housing: Withstands high temperatures and corrosion for long-term durability
- Reinforced Silicone Diaphragm: Paired with Nitrile O-ring sealed 304 stainless valve and seat for leak-free sealing
Product Notes
- Supplied with 0.5 bar (7psi) spring additional springs available separately for pressures up to 26psi
- Air-cooled design optimized for high-flow turbo setups
- Ships fully assembled ready for installation
Installation Notes
- Professional installation recommended.
- Use V-band clamps sold separately for secure flange connections
- Mount vertically or at 45 degrees for optimal actuator function and drainage
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | V-Band Housing Compatible |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia with strict quality control since 1997
- Performance proven across racing and street applications worldwide
- Innovative engineering backed by rigorous testing and after-sales support
Frequently Asked Questions
-
Q: What boost pressure does this wastegate support?
A: Includes 7psi spring upgradeable to 3psi through 26psi with optional springs for custom tuning -
Q: What materials are used in construction?
A: 347 stainless steel housing 304 stainless valve 6061 alloy actuator and reinforced silicone diaphragm -
Q: Is a warranty included?
A: Covered by Turbosmart limited lifetime warranty against manufacturing defects with registration
Shipping & Handling
- Method: Ground shipping via UPS or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Secure foam-protected box 10in x 8in x 8in
- Weight: 4.41 lbs
