SKU: TS-0552-1102 | UPC: 9329677018684

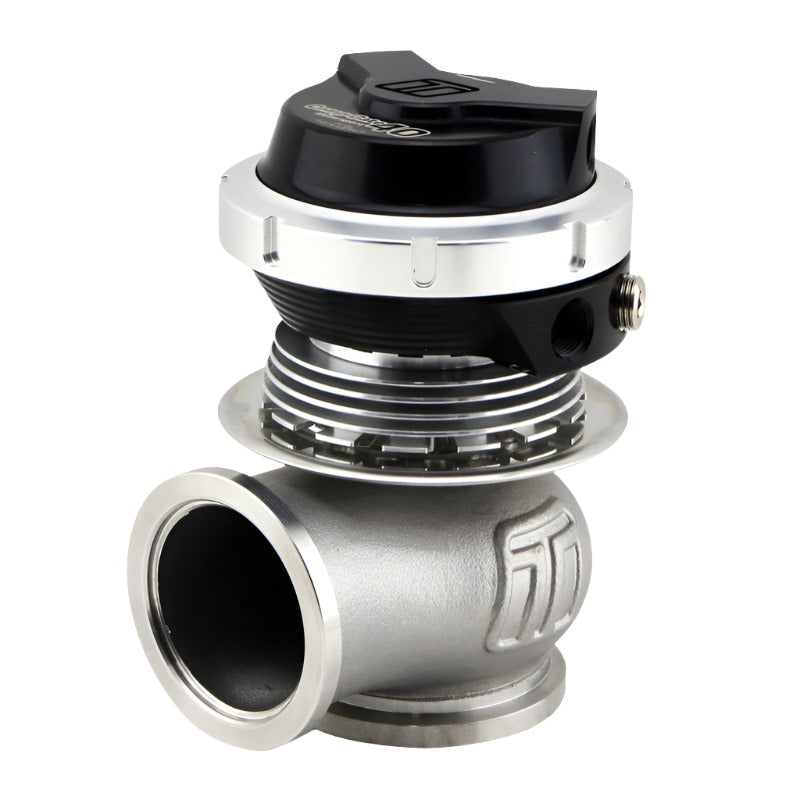

Turbosmart WG40 Gen V Comp-Gate 40mm Motorsport - 14 PSI Black
The Turbosmart WG40 Gen V Comp-Gate 40mm Motorsport wastegate delivers precise boost management for high-performance turbo setups. This universal external wastegate suits any turbocharger with V-band turbine housing outlets found in motorsport vehicles. It features a 40mm valve for rapid response and sustained high boost levels with minimal lag.
Key Features
- Gen V Architecture: Provides high flow capacity up to 500+ CFM and extended thermal efficiency for consistent performance
- 40mm Valve Size: Manages extreme exhaust volumes with Nitronic 60 seat and Inconel valve stem for durability
- 14 PSI Springs: Dual high-temperature springs pre-set at 14 PSI with options from 3 to 26 PSI for tuning flexibility
- 347SS Housing: Investment cast stainless steel with black anodized finish resists corrosion and heat up to 1000C
- Non-Directional Ports: Flexible routing for dual inlet/outlet design simplifies plumbing in tight engine bays
Product Notes
- Supplied with all necessary V-band clamps and fittings for quick setup
- Optional liquid cooling kit TS-0505-2001 available for track endurance
- Factory pressure tested and assembled prior to shipping
Installation Notes
- Professional installation recommended.
- Weld supplied tabs to custom exhaust manifold or use bracket kit
- Compatible with 2.5 inch V-band clamps on turbine housing
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | V-Band Turbine Housing |
Why Choose Turbosmart?
- Designed and hand-crafted in Sydney Australia since 1997
- Strict quality control with in-house testing exceeds industry standards
- Innovative engineering from dedicated research facility
Frequently Asked Questions
-
Q: Does this fit my turbo setup?
A: Fits universally on turbochargers with V-band clamp turbine outlets including T4 T5 T6 frames common in motorsport -
Q: What materials are used in construction?
A: 347 stainless steel housing Inconel valve Nitronic seat and Nomex reinforced silicone diaphragm -
Q: What warranty coverage applies?
A: Lifetime warranty on manufacturing defects for original purchaser with registration
Shipping & Handling
- Method: UPS Ground / FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Custom reinforced box 12in x 10in x 8in
- Weight: 4.85 lbs
