SKU: TS-0553-1011 | UPC: 9329677018752

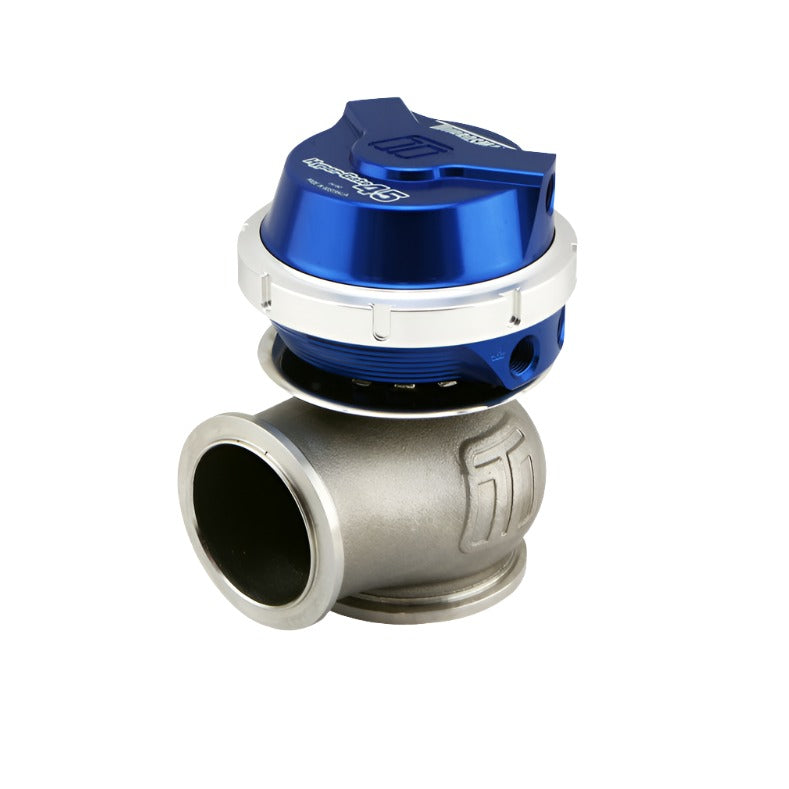

Turbosmart WG45 Gen V Hyper-Gate 45 14psi Blue Universal Wastegate
The Turbosmart WG45 Gen V Hyper-Gate 45 14psi Blue is a high-performance external wastegate designed for precise boost management in turbocharged engines. It fits universal applications with V-band inlet and outlet flanges on turbo housings. This wastegate delivers reliable pressure control at 14psi base with options for adjustment via spring swaps.
Key Features
- Nitronic 60 Valve Seat: Ensures extended service life under high heat and corrosive exhaust conditions for consistent performance.
- 347 Stainless Steel Valve: Provides corrosion resistance and maintains tight sealing for accurate boost response across RPM ranges.
- Forged Actuator Housing: Blue-anodized aluminum construction withstands extreme temperatures while allowing clockable orientation in 9 positions.
- Dual Port Actuator: Enables advanced boost control strategies with separate venting for faster response and reduced lag.
- Investment Cast 347SS Body: V-band clamps for easy installation and leak-free operation in demanding motorsport environments.
Product Notes
- Base spring pressure set at 14psi. Additional springs available for 3psi to 26psi range.
- Optional water cooling kit TS-0505-2001 recommended for high boost prolonged duty cycles.
- V-band clamps and flanges required. Confirm turbo housing compatibility before purchase.
Installation Notes
- Professional installation recommended.
- Clock actuator housing to 9 possible positions for optimal routing of control and dump pipes.
- Uses standard V-band flanges. Torque clamps to 6Nm for secure fit.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Universal | Turbocharged Vehicles | V-Band Turbo Housings |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with proven reliability in performance community.
- Strict quality control and rigorous testing in dedicated research facility.
- Innovative design exceeds expectations without cutting corners.
Frequently Asked Questions
-
Q: Is this wastegate compatible with my turbo setup?
A: Yes it fits any turbocharger with matching V-band inlet and outlet flanges. Verify flange size at 3 inch V-band standard. -
Q: What material is used for the valve seat?
A: Nitronic 60 for superior wear resistance and sealing under high exhaust temperatures up to 1000C. -
Q: What is the warranty and support?
A: Backed by Turbosmart lifetime defect warranty on valve and seat. Contact support for spring kits or tuning advice.
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Protective foam-lined box 12in x 10in x 8in
- Weight: 4.63 lbs
