SKU: TS-0553-1014 | UPC: 9329677020915

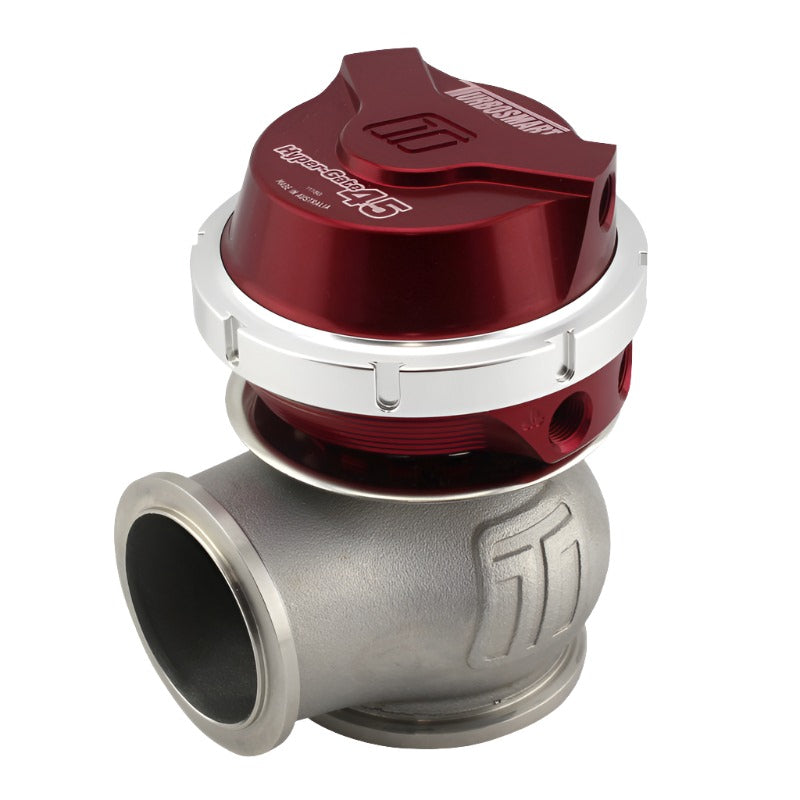

Turbosmart WG45 Gen V Hyper-Gate 45 14psi Red - Universal V-Band Turbo Wastegate
The Turbosmart WG45 Gen V Hyper-Gate 45 14psi Red delivers precise boost control for turbocharged engines up to 1200HP. This external wastegate fits universally on V-band turbo housings popular in Subaru STI Evo Nissan 300ZX Toyota Supra and more performance builds. Its high-flow 45mm valve and Gen V actuator ensure quick response and reliable operation under extreme conditions.
Key Features
- 45mm Valve Diameter: Handles massive exhaust flow for turbo setups exceeding 1200HP with minimal restriction
- Gen V Actuator Design: Features silicone Nomex diaphragm for swift precise boost response and +/-1psi accuracy
- Integrated Water Cooling Ports: Enables liquid cooling to maintain consistent performance during prolonged high-boost runs
- Nitronic 60 Valve Seat and 347SS Housing: Provides exceptional durability corrosion resistance and seat life under high heat
- Lockable Rolled Cap and Swivel Inlet: Allows secure boost adjustments and easy alignment during installation
Product Notes
- Requires custom welding of supplied V-band flanges to exhaust manifold and downpipe
- 14psi red spring included additional springs available for 3psi to 26psi range
- Boost controller required for full adjustability and optimal performance
Installation Notes
- Professional installation recommended.
- Weld inlet flange to match turbo housing outlet and outlet flange to downpipe
- Compatible with Turbosmart V-band clamps and boost reference fittings included
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004-2021 | Subaru | Impreza | WRX STI |
| 2015-2021 | Subaru | WRX | STI |
| 2003-2006 | Mitsubishi | Lancer | Evolution VIII IX |
| 2007-2015 | Mitsubishi | Lancer | Evolution X |
| 1993-1998 | Toyota | Supra | Turbo |
| 1989-2000 | Nissan | 300ZX | Twin Turbo |
| 1989-1998 | Nissan | Skyline | GT-R R32 R33 R34 |
| Universal | Universal | Any V-Band Turbo | Performance Build |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with focus on quality and reliability
- Strict quality control rigorous testing and full traceability via bar-coding
- Innovative engineering backed by dedicated research facility and staff training
Frequently Asked Questions
-
Q: Will this fit my Subaru STI turbo setup?
A: Yes it mounts to any V-band turbo housing like common STI TDO5 TDX applications with supplied swivel inlet flange for alignment -
Q: What materials are used in construction?
A: 347 stainless steel investment cast housing Nitronic 60 valve seat and high-temp springs for extreme heat and corrosion resistance -
Q: What warranty coverage is provided?
A: 12-month manufacturer defect warranty from purchase date with serial number for claims contact Turbosmart support
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Original Turbosmart box 11in x 9in x 7in
- Weight: 4.85 lbs
