SKU: TS-0553-1615 | UPC: 9329677022742

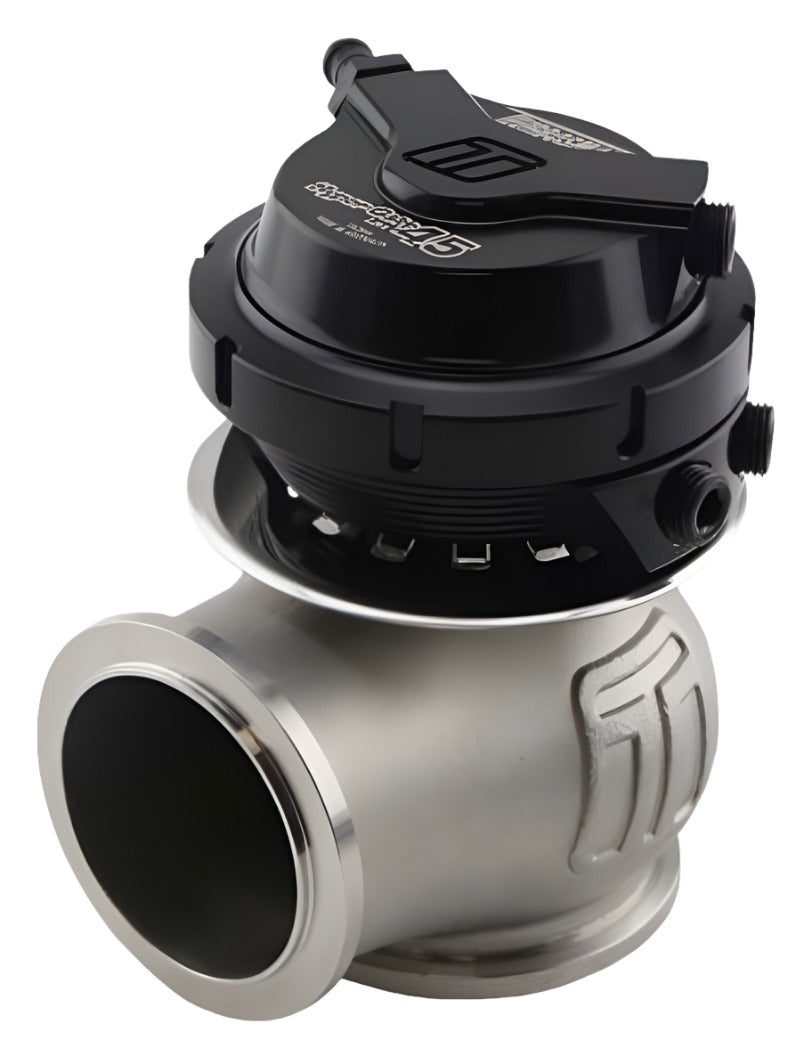

Turbosmart WG45 Gen V Hyper-Gate 45 14psi Sleeper Wastegate - Universal Fit
The Turbosmart WG45 Gen V Hyper-Gate 45 14psi Sleeper is a 45mm external wastegate for turbocharged performance vehicles seeking accurate boost management. This universal part fits most setups with V-band flanges on exhaust manifolds. It provides reliable operation through its preset 14psi spring and advanced Gen V design for consistent performance.
Key Features
- 45mm High-Flow Valve: Handles large exhaust volumes to support high boost levels without backpressure
- Liquid-Cooled Actuator Housing: Dual M10x1.0 water ports and optional oil cooling maintain diaphragm stability during prolonged high-heat runs
- Sleeper Black Finish: Discreet housing mimics factory turbo components for a low-profile appearance
- 347 Stainless Steel Construction: Investment-cast body with Nitronic 60 valve seat resists corrosion and wear for extended service life
- V-Band Clamp System: Strap-style clamps enable fast installation and maintenance on matching flanges
Product Notes
- Pre-assembled with 14psi spring, compatible with 5psi to 26psi upgrades sold separately
- Integral 1/8 NPT port for boost sensor connection
- Shipping weight 4.85 lbs, box dimensions 10 x 8 x 8 inches
Installation Notes
- Professional installation recommended.
- Liquid cooling required for boost over 20psi or track use
- Requires V-band flanges on manifold and dump pipe, includes clamps and gaskets
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Models | Turbocharged Vehicles w/ V-Band Flanges |
Why Choose Turbosmart?
- Engineered in Australia for global motorsport applications
- Proven reliability in drag racing and circuit use
- Precision-machined components ensure +/-1 psi boost accuracy
Frequently Asked Questions
-
Q: Is this wastegate a direct fit for my turbo setup?
A: Universal design fits any exhaust manifold and dump pipe with matching 4.5-inch V-band flanges -
Q: What materials are used in construction?
A: 347 stainless steel housings, Nitronic 60 seat, reinforced Nomex/silicone diaphragm -
Q: What warranty coverage applies?
A: 12-month manufacturer warranty against defects when installed and used correctly
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Original Turbosmart box, 10 x 8 x 8 inches
- Weight: 4.4 lbs product, 4.85 lbs shipping
