SKU: TS-0553-1502 | UPC: 9329677022346

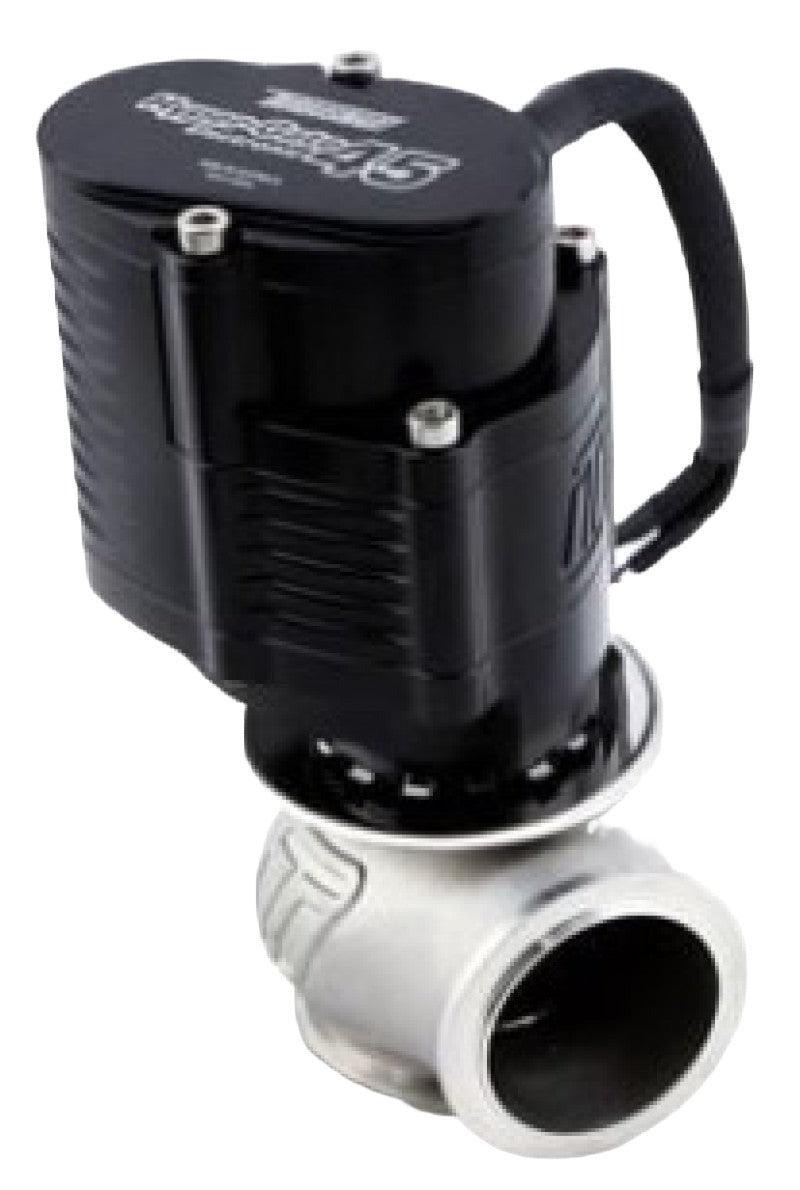

Turbosmart WG45 Gen V Hyper-Gate 45 Electronic Wastegate - Black | Universal Turbo Fit
The Turbosmart WG45 Gen V Hyper-Gate 45 Electronic Wastegate in black provides precise electronic boost control for high-performance turbocharged engines. This 45mm V-band wastegate fits universal turbo setups with compatible flanges on vehicles from Subaru WRX to Nissan GT-R and Ford Mustang GT. It handles up to 50psi boost with fast response and reliability for track or street use.
Key Features
- Electronic Actuator: Brushless motor with integrated position sensor enables closed-loop PWM control for accurate boost holding across 0-50psi range
- V-Band Design: Non-threaded 3-inch V-band inlet and outlet clamps allow 360-degree rotation and quick bolt-on installation without adapters
- 347SS Housing: Investment cast 347 stainless steel body with Inconel valve and Nitronic 60 stem withstands extreme heat and corrosion for long service life
- Modular Construction: Clockable actuator housing in 20-degree increments and serviceable internals simplify maintenance and custom fabrication
- Water Cooling Ports: 3/8-24 UNF ports and M10x1.5 mounts ensure actuator stays cool under sustained high-boost operation
Product Notes
- Requires compatible ECU PWM signal or Turbosmart e-Boost controller for operation
- Pre-install actuator calibration recommended using Turbosmart software
- Secure packaging prevents damage. inspect fittings upon receipt
Installation Notes
- Professional installation recommended.
- Tune boost maps after install to match actuator stroke limits
- Compatible with standard V-band turbo housings. no special hardware needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | V-Band 3" Flange |
| 2002-2023 | Subaru | WRX / STI | All Turbo Models |
| 1989-2023 | Nissan | GT-R / 370Z | All Turbo Models |
| 2011-2023 | Ford | Mustang GT | Supercharged/Turbo |
| 1993-2023 | Toyota | Supra / 86 | All Turbo Models |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with proven reliability in performance community
- Innovative design strict quality control and rigorous testing exceed expectations
- Extraordinary service and after-sales support from dedicated research facility
Frequently Asked Questions
-
Q: What control systems work with this wastegate?
A: Compatible with Turbosmart e-Boost Street/Race controllers or any ECU providing 12-bit PWM signal at 20-30Hz frequency -
Q: What materials are used in construction?
A: 347 stainless steel housing Inconel valve and seat Nitronic 60 stem plus high-temp silicone seals for durability -
Q: What is the warranty coverage?
A: 2-year unlimited mileage warranty on actuator and valve assembly with registration
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Foam-protected box 13in x 11in x 9in
- Weight: 5.46 lbs product 7.2 lbs shipping
