SKU: TS-0554-1011 | UPC: 9329677018875

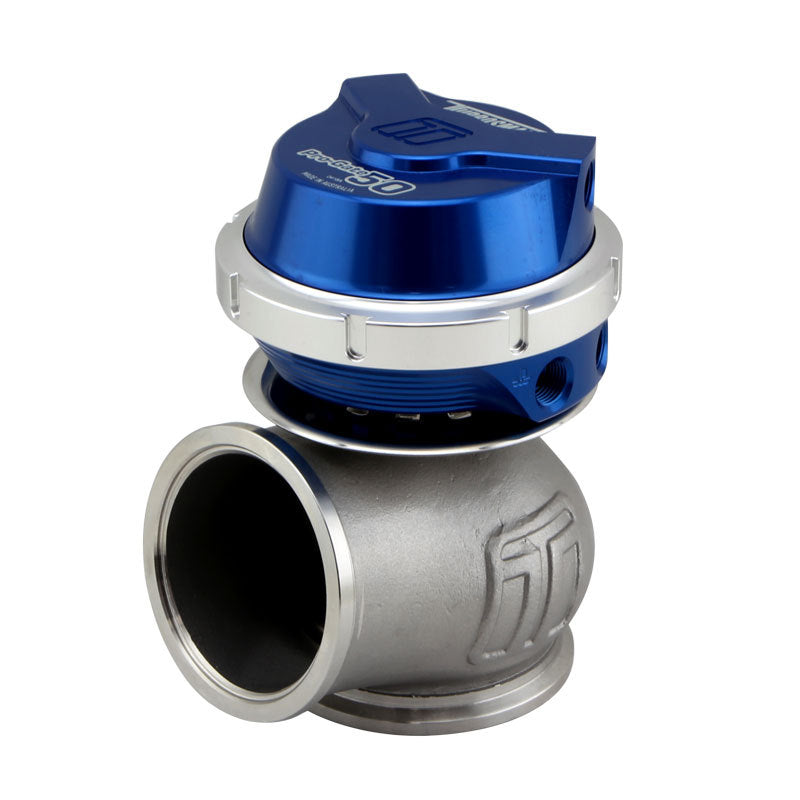

Turbosmart WG50 Gen V Pro-Gate 50 14psi Blue
The Turbosmart WG50 Gen V Pro-Gate 50 14psi Blue delivers precise boost management for turbocharged engines in performance builds. This universal external wastegate suits custom manifolds on 2.0L to 8.0L engines from Subaru, Nissan, Ford, and Holden vehicles. It provides fast response and handles up to 60psi with reliable operation.
Key Features
- Gen V Diaphragm Design: Features revolutionary up and down travel for quicker boost onset and reduced creep under high loads
- 50mm Valve Size: Enables high flow rates up to 1000+ CFM to support large turbos without restriction
- 14psi Spring: Factory-set 14psi (0.97 bar) actuator spring with easy swap options for tuning flexibility
- Blue Anodized Finish: Durable corrosion-resistant coating on 347 stainless steel housings for long-term engine bay protection
- V-Band Clamps: Secure stainless steel clamps allow 360-degree rotation and leak-free seals for simple setup
Product Notes
- Pair with Turbosmart boost controller for full boost reference capability
- Nitronic 60 valve seat and 17-7PH diaphragm ensure extended service life
- Liquid-filled actuator prevents damage from heat soak
Installation Notes
- Professional installation recommended.
- Clockable actuator housing adjusts for tight engine bay fits
- Includes all fittings, springs, and hardware for V-band mounting
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Subaru | WRX/STI | All Turbo Models |
| Universal | Nissan | GT-R/Skyline | All Turbo Models |
| Universal | Ford | Falcon/Ba XT | All Turbo Models |
| Universal | Holden | Commodore/VY-VZ | All Turbo Models |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with strict quality control
- Proven reliability in motorsport from innovative design and testing
- Backed by dedicated support for performance demands
Frequently Asked Questions
-
Q: Does this wastegate fit my turbo setup?
A: Yes, universal design mounts to any V-band exhaust manifold or up-pipe on turbocharged engines from 2.0L to 8.0L -
Q: What materials are used in construction?
A: 347 stainless steel housings, Nitronic 60 valve seat, 17-7PH stainless diaphragm for heat and corrosion resistance -
Q: What warranty coverage applies?
A: Turbosmart provides a 3-year warranty on defects with proper installation and maintenance
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Protective foam-lined box, 12 x 10 x 8 inches
- Weight: 5.1 lbs
