SKU: TS-0554-1013 | UPC: 9329677021189

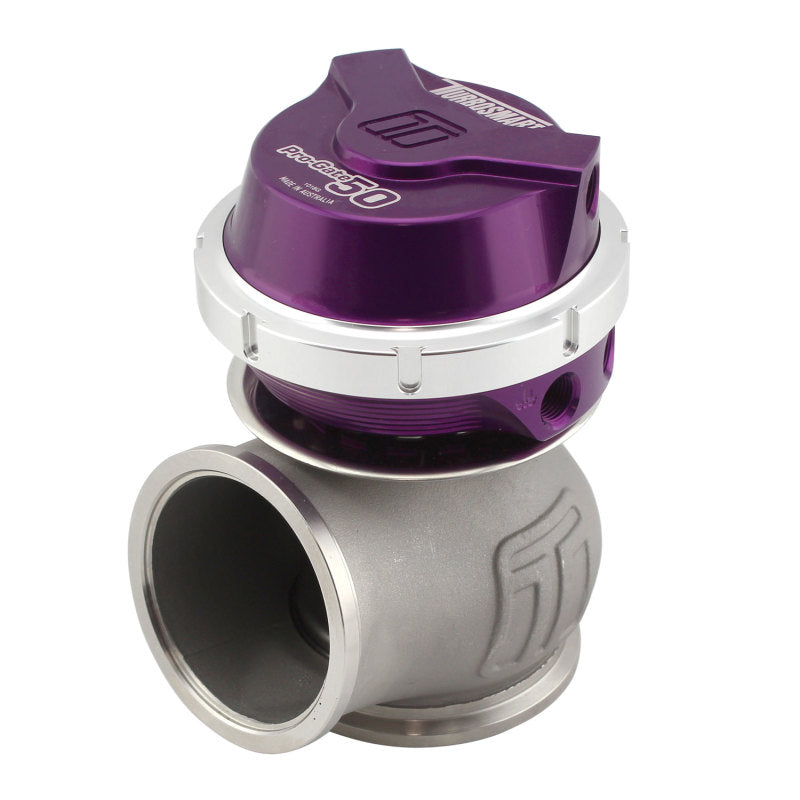

Turbosmart WG50 Gen V Pro-Gate 50 14psi Purple Universal External Wastegate
The Turbosmart WG50 Gen V Pro-Gate 50 14psi Purple delivers precise boost control for turbocharged engines up to 650HP. This universal external wastegate mounts to any compatible V-band turbo manifold. It provides 40 percent faster boost recovery for consistent power delivery across the RPM range.
Key Features
- Nitronic 60 Valve Seat: Resists wear from high exhaust gas temperatures for reliable sealing and longevity
- 347 Stainless Steel Housings: Investment cast construction withstands corrosion and extreme conditions
- Liquid Filled Gauge: 14psi competition grade gauge monitors valve stroke for accurate boost feedback
- Water Cooling Ports: Standard ports reduce heat soak and maintain actuator performance
- V-Band Clamps: Includes full kit with inlet outlet manifold clamps plus fittings for quick secure install
Product Notes
- Pre-assembled with 14psi spring tolerance plus or minus 2psi
- Springs sold separately for boost adjustment from 5psi to 26psi
- Valve size 50mm supports airflow over 500CFM
Installation Notes
- Professional installation recommended.
- Requires 3 inch V-band manifold flange and 2.5 inch V-band inlet outlet flanges
- Includes T-piece water fittings and valve position sensor port option
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | V-Band Manifold Up to 650HP |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with strict quality control
- Reliable performance trusted in racing and street applications worldwide
- Innovative engineering backed by in-house testing beyond industry standards
Frequently Asked Questions
-
Q: Does this wastegate fit my turbo manifold?
A: Fits any manifold with 3 inch V-band flange and 2.5 inch V-band dump pipe standard on most aftermarket turbos -
Q: What finish and materials are used?
A: Purple anodized actuator investment cast 347SS housings Nitronic 60 seat high-temp silicone diaphragm -
Q: What warranty coverage applies?
A: Limited lifetime warranty against manufacturing defects when installed and used as directed
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Original Turbosmart box 11.5 x 9.25 x 7 inches
- Weight: 5.07 lbs
