SKU: TS-0554-1014 | UPC: 9329677021196

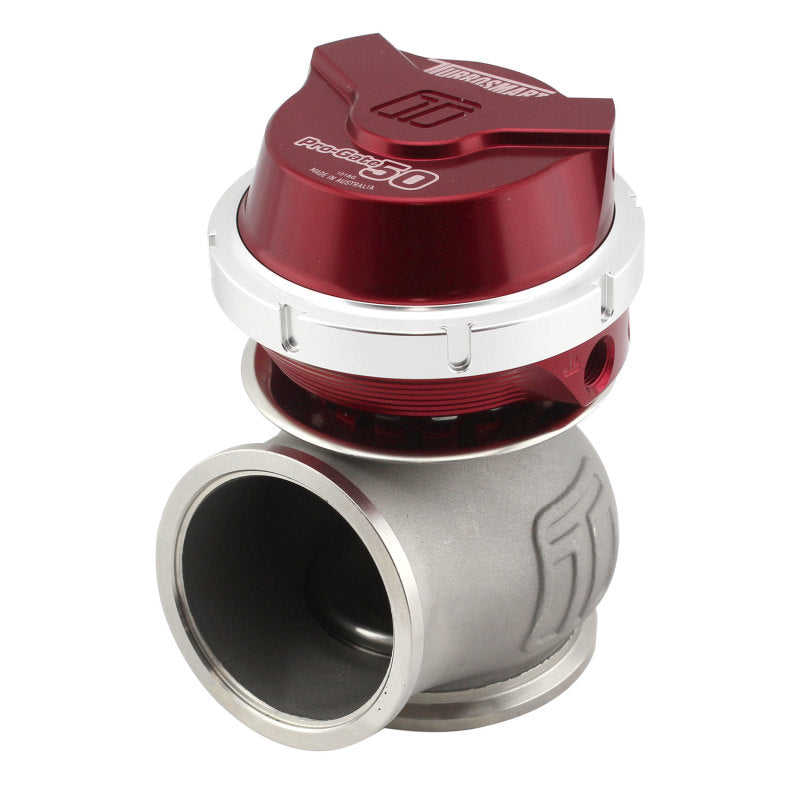

Turbosmart WG50 Gen V Pro-Gate 50 14psi Red Wastegate - Universal Fit
The Turbosmart WG50 Gen V Pro-Gate 50 14psi Red is a 50mm external wastegate designed for turbocharged engines seeking accurate boost management. It fits universal applications on custom turbo manifolds for cars trucks and motorsports vehicles. This wastegate provides reliable pressure regulation with high-flow capacity for consistent performance under demanding conditions.
Key Features
- 60% Flow Increase: Proprietary valve and seat design delivers higher airflow than previous generation for quicker boost response and reduced lag
- Liquid Cooling Ports: Integrated ports maintain actuator stability during extended high-boost runs preventing heat soak
- Forged Actuator Housing: 6061 aluminum construction handles extreme pressures up to 40psi with secure spring preload locking collar
- 347 Stainless Steel Body: Investment cast with high-temperature NiCo coating for corrosion resistance and durability in harsh environments
- Nitronic 60 Valve Seat: Ensures long-term sealing and wear resistance even after thousands of cycles
Product Notes
- Pre-assembled with 14psi spring additional springs available separately for boost adjustment from 3 to 26psi
- Custom manifold fabrication required for V-band inlet and outlet flanges
- Packaged in protective box dimensions 8.5 x 8 x 6 inches
Installation Notes
- Professional installation recommended.
- Mount using included V-band clamps on 2.5-inch inlet and 3-inch outlet flanges
- Optional position sensor threads 3/8-24 female compatible with most sensors
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | All |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with strict quality control
- Proven reliability in performance community backed by rigorous testing
- Innovative design from dedicated research facility ensures consistent results
Frequently Asked Questions
-
Q: Is this wastegate vehicle-specific?
A: No it offers universal fitment for any turbocharged setup with compatible V-band manifold flanges -
Q: What materials are used in construction?
A: Features 347 stainless steel body Nitronic 60 seat forged 6061 actuator and Nitrile Nomex reinforced diaphragm -
Q: What warranty coverage applies?
A: Covered by Turbosmart limited warranty register product for details contact support
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Secure box 8.5 x 8 x 6 inches
- Weight: 5.1 lbs
