SKU: TS-0502-3002 | UPC: 9329677007732

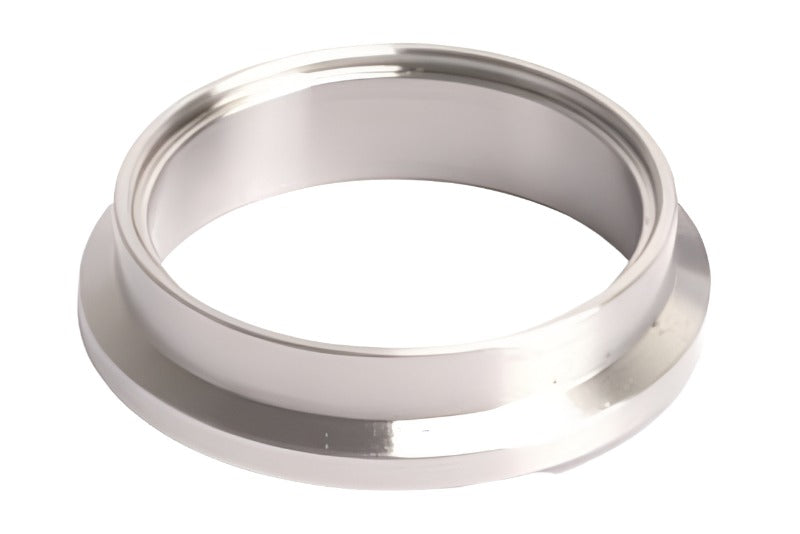

Turbosmart WG50 Outlet Weld Flange
The Turbosmart WG50 Outlet Weld Flange is a precision-machined 304 stainless steel component designed to weld directly onto exhaust piping for the outlet port of WG50 series wastegates. It enables a leak-free V-band clamp connection for consistent exhaust flow and boost control in turbocharged setups. This flange suits custom fabrication on performance vehicles equipped with Turbosmart Hyper-Gate 50, Comp-Gate 50, or Plumb-Back 50 wastegates.
Key Features
- 304 Stainless Steel Construction: Resists corrosion and high exhaust temperatures up to 1000°C for long-term durability in demanding conditions.
- V-Band Design: Matches exactly with WG50 wastegate outlets for quick, secure clamping without leaks or alignment issues.
- Weld-On Flange: 3-inch nominal diameter allows easy integration into downpipes and turbo exhaust manifolds during fabrication.
- Precision Machining: Factory tolerances ensure flat sealing surfaces and perfect fit with Turbosmart V-band clamps.
- Australian Made: Produced in Sydney with rigorous testing for consistent performance in motorsport applications.
Product Notes
- Verify wastegate model compatibility before purchase.
- Inspect flange surface for damage prior to welding.
- Store in dry conditions to prevent surface contamination.
Installation Notes
- Professional installation recommended.
- TIG weld only using 304 stainless filler rod at 120-140 amps.
- Compatible with Turbosmart TS-0505-2001 V-band clamp kit.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | - | All Vehicles | with Turbosmart WG50 Wastegates |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with proven reliability in performance applications.
- Strict quality control and rigorous testing exceed industry standards.
- Innovative design from dedicated research facility ensures parts perform in extreme conditions.
Frequently Asked Questions
-
Q: Which Turbosmart wastegates use this flange?
A: Fits outlet port on Hyper-Gate 50, Comp-Gate 50, and Plumb-Back 50 series wastegates for V-band connection. -
Q: What material and thickness?
A: Made from 304 stainless steel with 3mm wall thickness for strength and heat resistance. -
Q: What warranty applies?
A: Backed by Turbosmart limited lifetime warranty against manufacturing defects when installed correctly.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact protective box 6 x 4 x 2 inches
- Weight: 0.19 lbs (85 grams)
