SKU: TS-0503-3008 | UPC: 9329677010565

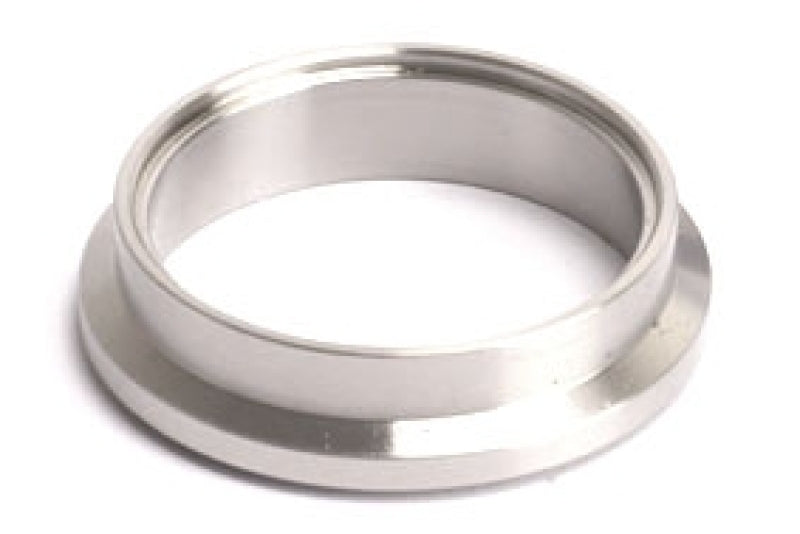

Turbosmart WG60 Alloy Outlet Weld Flange TS-0503-3008 - Universal Fabrication Fit
The Turbosmart WG60 Alloy Outlet Weld Flange provides a direct bolt-on connection for the outlet side of Turbosmart Gen V WG60 external wastegates. This weld-on component integrates into custom turbo downpipes and exhaust manifolds on high-performance vehicles with WG60 wastegates. It delivers a reliable V-band seal to direct exhaust gases effectively while handling extreme boost pressures.
Key Features
- 304 Stainless Steel Construction: Investment cast alloy resists corrosion heat and vibration for long-term durability in harsh turbo environments
- WG60 Wastegate Compatibility: Matches all Turbosmart WG60 series wastegates including Racegate ProGate and standard models with 2-bolt V-band outlet
- Weld-On Design: Smooth precision-machined surface ensures clean strong welds to 2.5-inch OD exhaust tubing without distortion
- V-Band Flange Interface: Standard 60mm 2-bolt pattern clamps securely to wastegate outlet for quick assembly and leak-free performance
- Lightweight Build: Weighs just 4.2 oz to minimize added mass on exhaust systems while maintaining structural integrity
Product Notes
- Designed exclusively for external WG60 wastegates not compatible with internal gate designs
- Inspect weld area post-installation for proper penetration and alignment
- Packages in foam-protected box measuring 6 x 4 x 2 inches for safe transit
Installation Notes
- Professional installation recommended.
- Weld to schedule 40 stainless exhaust pipe matching wastegate outlet ID using TIG method
- Includes mating V-band clamp compatibility verify clamp kit PN TS-0505-2001
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Performance Vehicles | Equipped with Turbosmart WG60 Wastegate |
| 1980-2024 | Subaru | Impreza WRX STI | All Turbo Models |
| 1989-2024 | Nissan | Skyline GT-R R32-R35 | All RB/ VR Turbo |
| 1990-2024 | Toyota | Supra 2JZ-GTE | All Single/Dual Turbo |
Why Choose Turbosmart?
- Motorsport-proven components used in World Rally Championship and drag racing
- Engineered in Australia with focus on boost control reliability
- CNC-machined prototypes ensure exact tolerances for real-world performance
Frequently Asked Questions
-
Q: Which Turbosmart wastegates is this flange compatible with?
A: Fits all WG60 external wastegates including Gen V Racegate ProGate50 ProGate75 and standard WG60 with matching outlet flange -
Q: What material and welding process should I use?
A: Made from investment cast 304 stainless steel use TIG welding with 308L filler rod on clean preheated pipe for best results -
Q: What is the warranty and return policy?
A: Backed by Turbosmart 12-month defect warranty contact authorized dealer for claims must be unmodified
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Protective cardboard box 6 x 4 x 2 inches
- Weight: 0.26 lbs product 0.5 lbs shipping
