SKU: TS-0555-1012 | UPC: 9329677019001

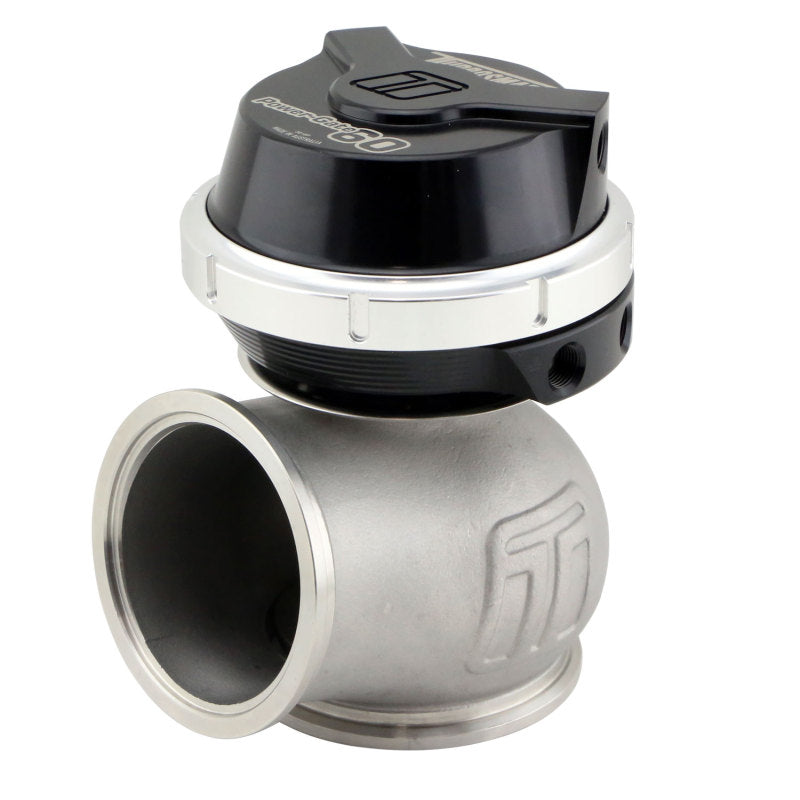

Turbosmart WG60 Gen V Power-Gate 60 14psi Black
The Turbosmart WG60 Gen V Power-Gate 60 14psi Black is a 60mm external wastegate for universal turbocharged performance vehicles including imports and domestics. It provides reliable 14psi boost control with class-leading flow rates. Built for drag racing street cars and track builds this wastegate handles high horsepower setups with fast response.
Key Features
- 60mm Valve Size: Handles up to 1400+hp with maximum exhaust flow and quick boost onset
- Gen V Actuator: Liquid-filled nitrogen actuator operates from -40C to 165C for consistent performance in extreme conditions
- 14psi Factory Spring: Pre-set to 14psi (1 bar) with easy spring swap options for custom boost levels
- Durability Materials: Nitronic 60 valve seat 347 stainless steel valve and Inconel springs for long life under high heat
- V-Band Design: Dual 4.5-inch V-band clamps and swivel actuator mount simplify installation and ensure leak-free seals
Product Notes
- Spring changes require disassembly use Turbosmart spring kits for accurate boost adjustment
- Black anodized aluminum housing resists corrosion and heat for reliable daily driving
- Ships fully assembled with flanges clamps and hardware included
Installation Notes
- Professional installation recommended.
- Weld supplied V-band flanges to exhaust manifold and dump pipe for secure fit
- Actuator swivels 30 degrees for flexible boost hose routing
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | All |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with strict quality control
- Rigorous testing in research facility ensures performance beyond expectations
- Innovative design and after-sales support from dedicated performance experts
Frequently Asked Questions
-
Q: Is this wastegate vehicle-specific?
A: No it is universal fits any turbo setup with 4.5-inch V-band exhaust flanges on manifold and dump pipe -
Q: What materials are used in construction?
A: Black anodized aluminum body Nitronic 60 seat 347SS valve Inconel springs and stainless steel fittings -
Q: What warranty is provided?
A: Turbosmart offers limited lifetime warranty against manufacturing defects when installed and used correctly
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Original Turbosmart box 13.8 x 8.7 x 7.5 inches
- Weight: 5.07 lbs
