SKU: TS-0555-1011 | UPC: 9329677018998

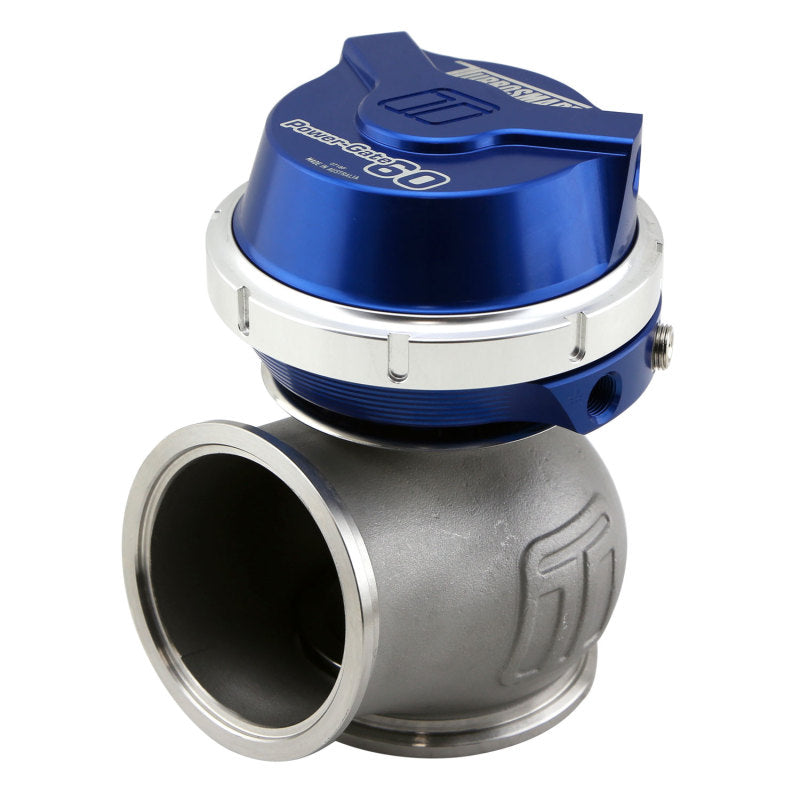

Turbosmart WG60 Gen V Power-Gate 60 14psi Blue Wastegate - Universal V-Band Fitment
The Turbosmart WG60 Gen V Power-Gate 60 14psi Blue is a 60mm external wastegate designed for high-horsepower turbocharged applications. It provides reliable boost control in universal setups with V-band inlet and outlet flanges on manifolds and downpipes. This wastegate ensures stable boost levels and maximum exhaust flow for demanding performance builds.
Key Features
- Gen V Actuator: Liquid-filled design with stainless steel housing delivers faster response and consistent boost across the RPM range
- High Flow Valve: Nitronic 60 valve seat and 347 stainless steel billet valve handle up to 50 percent more flow than other 60mm wastegates
- Clockable Housing: V-band stainless steel housing rotates in nine positions for flexible mounting in tight engine bays
- Integrated Cooling: Dual water cooling ports prevent heat soak and maintain actuator performance under extreme conditions
- Pre-Sprung Actuator: Blue 14psi spring preset for immediate use with optional springs available for boost adjustment up to 40psi
Product Notes
- Universal fit requires matching V-band flanges on turbo manifold and downpipe
- Includes V-band clamps inlet outlet gaskets and fitting kit for complete setup
- Blue anodized actuator finish resists corrosion in harsh environments
Installation Notes
- Professional installation recommended.
- Tune ECU after installation to verify boost targets and actuator sweep
- V-band clamps and hardware included for direct bolt-on with compatible flanges
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | V-Band Turbo Manifold |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with proven reliability in performance racing
- Innovative design strict quality control and rigorous testing in dedicated research facility
- Extraordinary service and after-sales support from a leader in forced induction components
Frequently Asked Questions
-
Q: Is the WG60 Gen V wastegate compatible with my turbo setup?
A: Yes it fits universal turbo systems with V-band flanges on the manifold and downpipe for seamless integration -
Q: What materials are used in construction?
A: Nitronic 60 valve seat 347 stainless steel valve and high-grade billet aluminum actuator ensure durability under high heat and pressure -
Q: What warranty coverage is provided?
A: Turbosmart backs this wastegate with warranty against manufacturing defects when installed and maintained correctly
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Secure box 14.17 x 10.24 x 9.84 inches
- Weight: 5.07 lbs
