SKU: TS-0555-1013 | UPC: 9329677021202

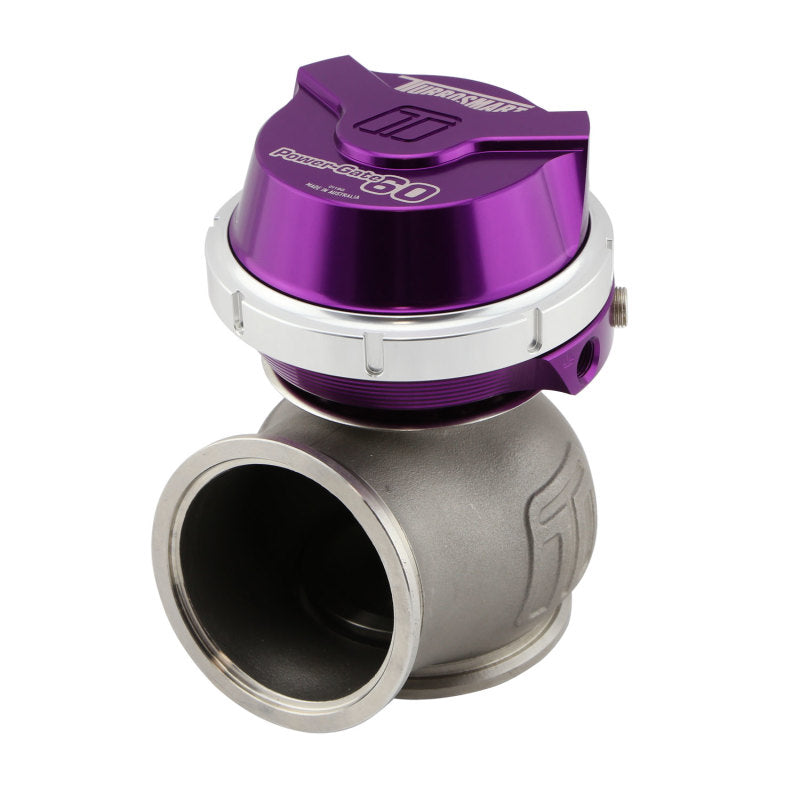

Turbosmart WG60 Gen V Power-Gate 60 14psi Purple
The Turbosmart WG60 Gen V Power-Gate60 14psi Purple is a 60mm external wastegate built for turbocharged engines needing exact boost regulation. It installs on any vehicle with compatible V-band turbo housings including imports and domestics. Delivers high exhaust flow rates for setups up to 800hp with dependable operation.
Key Features
- 60mm Valve: Handles maximum exhaust flow for large turbochargers and high horsepower builds
- Nitronic 60 Seat: Provides wear resistance and thermal stability under extreme conditions
- 347SS Valve: Ensures corrosion resistance and precise sealing for consistent boost levels
- Gen V Actuator: Forged aluminum housing with dual water cooling ports maintains performance at high boost
- Reinforced Diaphragm: Silicone Nomex construction withstands pressure cycles for extended service life
Product Notes
- Pre-loaded with 14psi purple spring adjustable from 3 to 26psi with additional springs
- Clean actuator regularly to prevent debris buildup and ensure smooth operation
- Arrives fully assembled with V-band clamps and hardware included
Installation Notes
- Professional installation recommended.
- Mount vertically or horizontally with cooling ports at top if water-cooled
- Compatible with standard 4-inch V-band turbo inlet and 3.5-inch outlet flanges
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| - | - | Universal | V-Band Turbo Applications |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 for proven reliability
- Strict quality control and rigorous testing in dedicated research facility
- Innovative design sets industry benchmarks without cutting corners
Frequently Asked Questions
-
Q: Will this wastegate fit my turbo setup?
A: Universal V-band design fits most aftermarket turbos with matching inlet outlet flanges check your turbo specs for 4in inlet 3.5in outlet -
Q: What materials are used in construction?
A: Nitronic 60 valve seat 347 stainless steel valve forged 6061 aluminum housing and Nomex reinforced diaphragm -
Q: What warranty coverage applies?
A: 12 month manufacturer warranty against defects when installed and used per instructions
Shipping & Handling
- Method: Ground shipping via UPS or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Securely packaged in original Turbosmart box
- Weight: 7.7 lbs
