SKU: TS-0555-1014 | UPC: 9329677021219

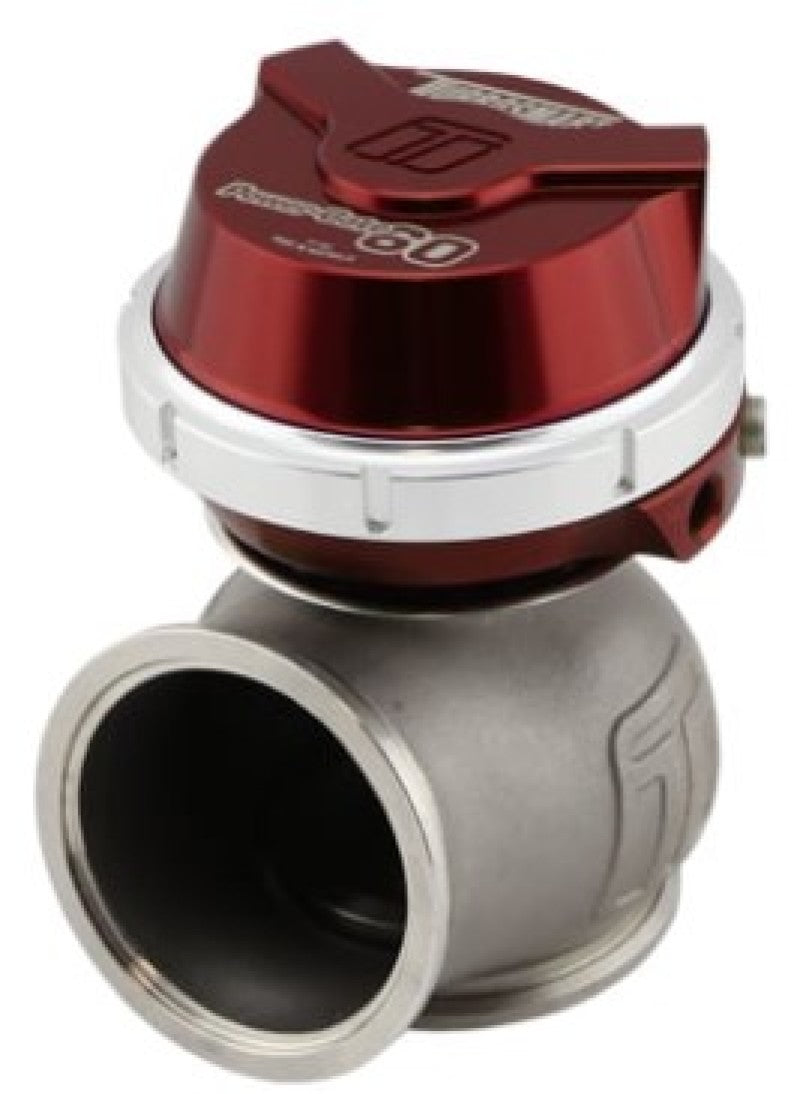

Turbosmart WG60 Gen V Power-Gate 60 14psi Red External Wastegate
The Turbosmart WG60 Gen V Power-Gate 60 14psi Red is a 60mm external wastegate that controls boost pressure in turbocharged engines with precision and speed. Designed for universal fitment on turbo manifolds using V-band flanges this unit suits high-performance builds across various vehicles. Australian engineering ensures consistent performance under extreme conditions.
Key Features
- 60mm Valve: Precision machined for maximum exhaust flow and quick boost response in demanding turbo setups
- Dual Port Actuator: Increased stroke length allows faster valve operation and accurate pressure regulation
- 347SS Housing: 3mm thick stainless steel with optional liquid cooling ports handles high temperatures reliably
- Nitronic 60 Seat: Valve stem and seat resist wear for long-term durability in high-boost applications
- V-Band Clamps: Secure inlet and outlet connections simplify installation and ensure leak-free operation
Product Notes
- 14psi actuator spring pre-installed additional springs available separately for boost adjustment
- Inspect all fittings before use to confirm compatibility with exhaust manifold
- Ships fully assembled ready for weld-in or bolt-on manifold integration
Installation Notes
- Professional installation recommended.
- Weld V-band flanges to turbo manifold if not pre-existing
- Compatible with standard 1.5-inch water cooling lines optional kit TS-0505-2001
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All Makes | Turbocharged Vehicles | All Submodels |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with proven acceptance in performance community
- Innovative design strict quality control and rigorous testing in dedicated research facility
- Extraordinary service and after-sales support from factory-direct manufacturing
Frequently Asked Questions
-
Q: What boost levels does this wastegate support?
A: Equipped with 14psi spring supports up to 40psi with optional higher-rated springs available -
Q: What materials construct the housing and valve?
A: 347 stainless steel housing Nitronic 60 valve seat and forged valve body for heat and corrosion resistance -
Q: What warranty coverage applies?
A: Limited lifetime warranty against manufacturing defects when installed and maintained correctly
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Original Turbosmart box 13 x 11 x 9 inches
- Weight: 5.07 lbs
