SKU: TS-0555-1002 | UPC: 9329677018981

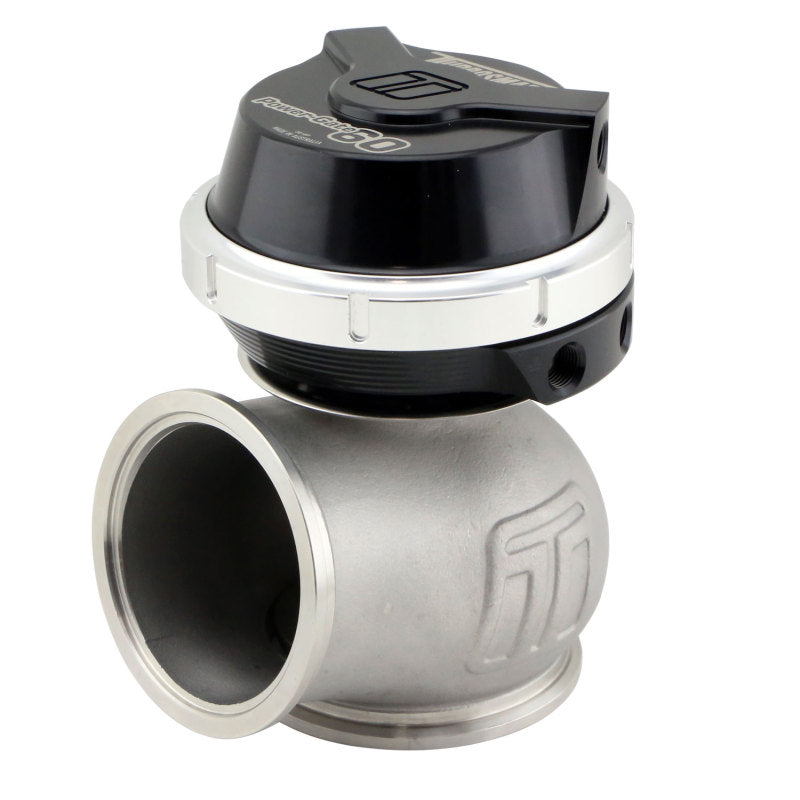

Turbosmart WG60 Gen V Power-Gate 60 7psi Black Wastegate - Universal Fit
The Turbosmart WG60 Gen V Power-Gate 60 7psi Black is a 60mm external wastegate designed for turbocharged engines requiring accurate boost management. It fits universally on performance vehicles with compatible turbo manifolds and exhaust routing. This wastegate provides reliable operation from 100hp to over 1000hp applications with its high-flow design and spring preload at 7psi.
Key Features
- 60mm Valve Size: Handles extreme boost levels with class-leading airflow up to 1500hp supported by larger valve diameter and optimized seat contour
- Gen V Actuator Design: Features dual high-temperature Nomex reinforced silicone diaphragm for faster response and 20 percent more linear travel than previous models
- Investment Cast 347 Stainless Steel: Durable housings resist corrosion and withstand 1400 degrees Celsius for long-term reliability in harsh conditions
- Nitronic 60 Valve Stem: Reduced guide clearances prevent sticking with 9310 steel valve and seat for precise sealing under high pressure
- Liquid Cooled Ports: Dual M8x1 water and oil ports maintain actuator stability during sustained high-boost runs
Product Notes
- Includes factory 7psi spring. Additional springs from 3psi to 26psi available separately for custom boost tuning
- V-band inlet flange 2.00 inch and outlet 2.50 inch. Clockable housing positions actuator 9 ways for tight installs
- Shipped fully assembled with all hardware. Modular design allows future upgrades
Installation Notes
- Professional installation recommended.
- Mount in inverted position for best performance with dump pipe connected to exhaust
- Compatible with all Turbosmart V-band clamps and springs. Use threadlocker on fittings
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | 2.0L - 6.0L Engines |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 with strict quality control and rigorous testing
- Proven reliability in motorsport from drag racing to rally with extraordinary service support
- Innovative engineering using premium materials for performance beyond expectations
Frequently Asked Questions
-
Q: Does this wastegate fit my turbo setup?
A: Yes universal design bolts to any turbo manifold with 2 inch V-band port. Confirm dump pipe flange matches 2.5 inch outlet -
Q: What materials are used in construction?
A: 347 stainless steel housings 9310 steel valve seat Nitronic 60 stem and Nomex diaphragm for heat resistance up to 1400C -
Q: What is the warranty and boost range?
A: Turbosmart limited warranty covers defects. Supports 7psi base up to 50psi with optional springs. Lifetime on actuator for racing
Shipping & Handling
- Method: Standard ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed with foam protection
- Weight: 4.85 kg (10.7 lbs)
