Stiffen the Front End and Sharpen Cornering Precision on Your 1993-2002 Camaro or Firebird V8 with the UMI 2005-B Shock Tower Brace

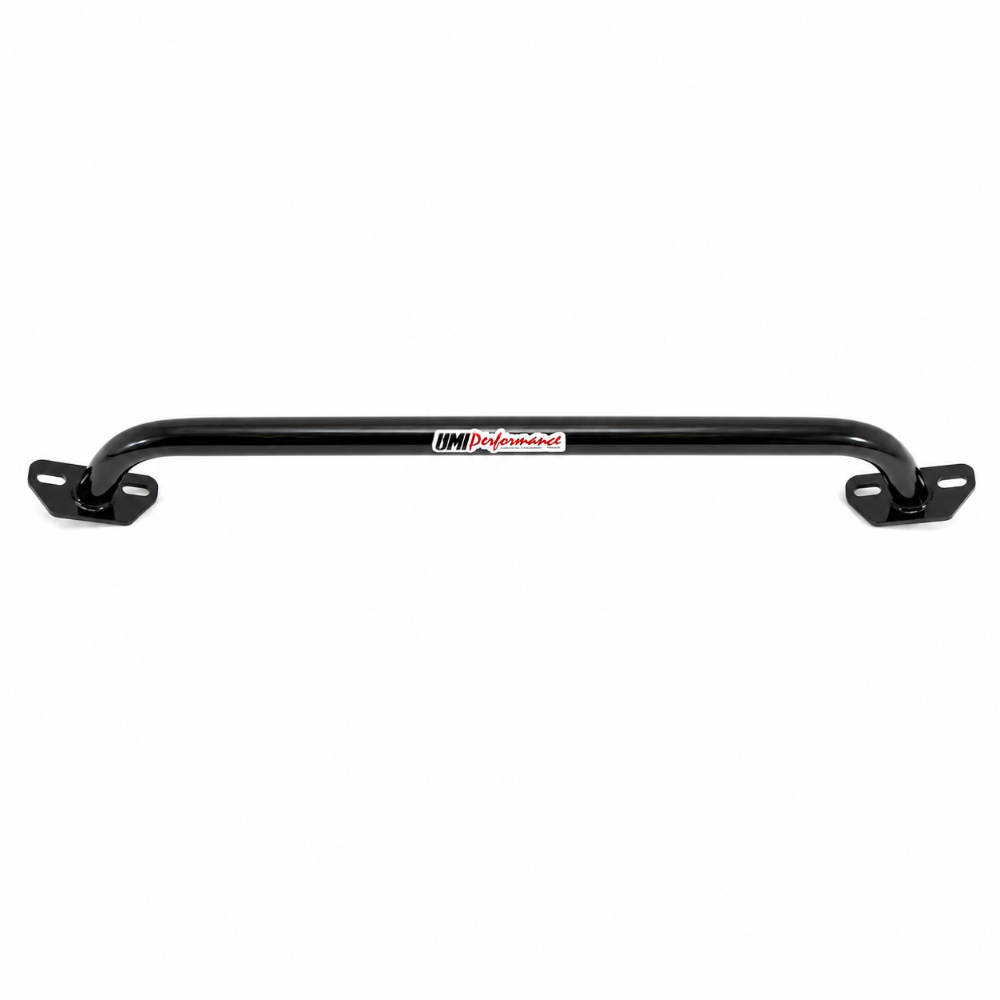

The UMI Performance 2005-B is a front shock tower brace engineered for the 1993-2002 GM F-Body Chevrolet Camaro and Pontiac Firebird equipped with V8 engines. The fourth-gen F-Body front end is known for chassis flex under hard cornering, which reduces suspension geometry consistency and degrades steering feel and front-end response.

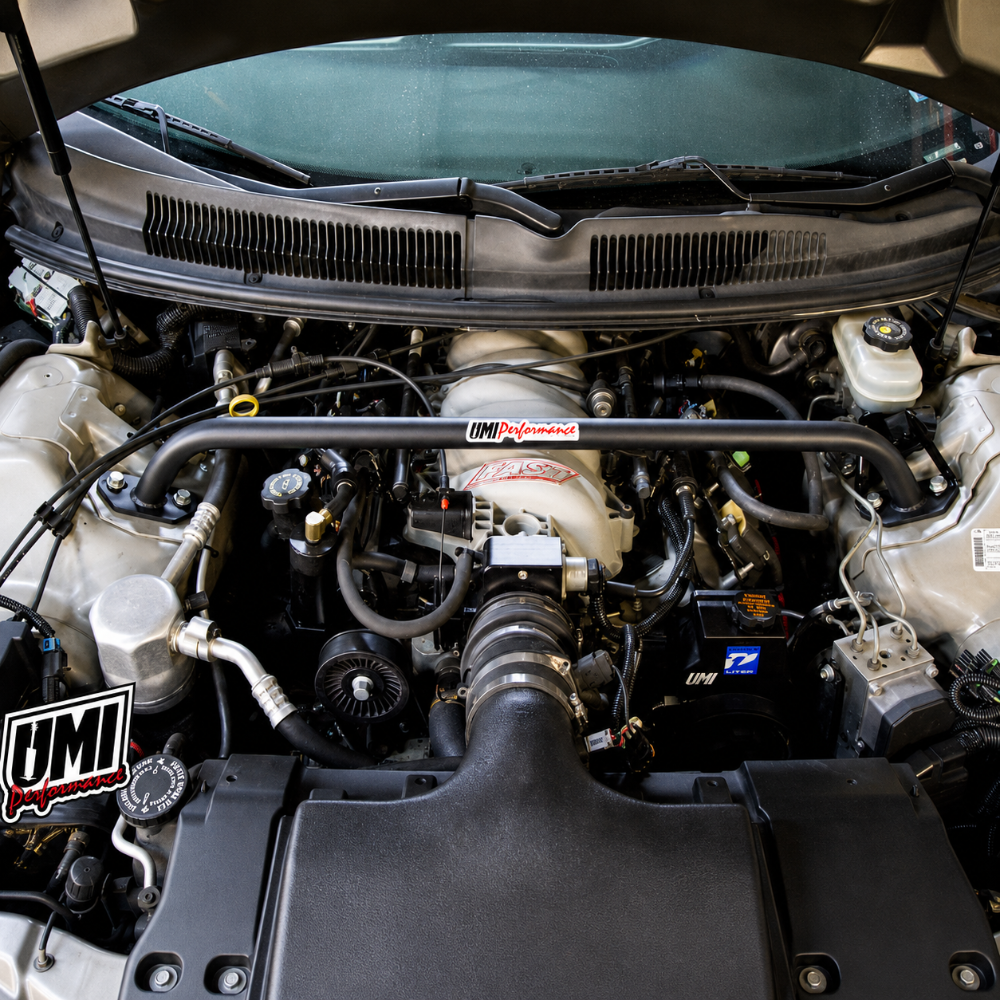

The UMI 2005-B ties the left and right front shock towers together with a rigid tubular steel brace, limiting the amount the towers can deflect relative to each other under lateral load. The result is more consistent front suspension geometry, sharper corner entry response, and improved feedback through the steering. This brace does not fit V6 models or vehicles equipped with the FAST 102 intake manifold due to clearance requirements.
The 2005-B is finished in black powder coat for under-hood appearance and corrosion resistance, and is manufactured in the USA at UMI Performance's Philipsburg, Pennsylvania facility.
Key Features
- Reduces front chassis flex by tying left and right shock towers together
- Improves front suspension geometry consistency under hard cornering loads
- Sharpens steering feel and corner entry response on 93-02 F-Body V8 models
- Black powder coat finish for under-hood appearance and corrosion resistance
- Tubular steel construction for rigidity and durability
- Does not fit V6 models or FAST 102 intake manifold equipped vehicles
- Manufactured in the USA by UMI Performance in Philipsburg, Pennsylvania
Vehicle Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 1993-2002 | Chevrolet | Camaro | V8 models only (Z28, SS, Berlinetta) |
| 1993-2002 | Pontiac | Firebird | V8 models only (Formula, Trans Am) |
Specifications
| Detail | Value |
|---|---|
| Part Number | 2005-B |
| Brand | UMI Performance |
| Material | Tubular steel |
| Finish | Black powder coat |
| Compatible Engines | V8 only (LT1, LS1) |
| Intake Clearance | Does not fit FAST 102 intake manifold |
| Application | 1993-2002 GM F-Body Camaro and Firebird V8 |
| Country of Manufacture | USA |
| UPC | N/A |
What's Included
- 1x UMI Performance 2005-B front shock tower brace
- Hardware for installation
About UMI Performance
UMI Performance is an American chassis and suspension manufacturer based in Philipsburg, Pennsylvania. The company specializes in GM F-Body, G-Body, A-Body, and CTS-V performance components, engineering and manufacturing all parts in-house for precise fitment and proven street and track durability. UMI has been a trusted name in the GM performance community for decades.
Related Parts on Our Site
- UMI 2261-B 1982-1992 GM F-Body Torque Arm Relocation Kit 4L60E Black - Drivetrain relocation kit for the earlier third-gen F-Body with 4L60E transmission
- UMI 3030 1978-1987 GM G-Body AC Heater Box Delete Panel - Firewall cleanup panel for the G-Body platform
Frequently Asked Questions
What is the UMI Performance 2005-B?The UMI Performance 2005-B is a black powder coated tubular steel shock tower brace for 1993-2002 Chevrolet Camaro and Pontiac Firebird V8 models. It connects the left and right front shock towers to reduce chassis flex under hard cornering, improving front suspension geometry consistency and steering response on both street and track applications.
Does the 2005-B fit V6 Camaro and Firebird models?No. The UMI 2005-B is designed for V8 engine applications only. It does not fit V6 Camaro or Firebird models due to differences in engine bay geometry and clearance.
Will the 2005-B clear a FAST 102 intake manifold?No. The UMI 2005-B does not fit vehicles equipped with the FAST 102 intake manifold. The taller profile of the FAST 102 creates a clearance conflict with the shock tower brace. If your vehicle has a FAST 102 or similar tall intake, confirm clearance before purchasing.
Is the 2005-B beneficial for street driving or is it primarily a track part?The UMI 2005-B provides measurable handling improvement on both street and track. On the street, drivers notice sharper corner entry response and more precise steering feel, particularly when pushing the car through freeway on-ramps or sweeping curves. On track, the reduced chassis flex improves front suspension consistency lap after lap. It is a worthwhile upgrade for any 93-02 F-Body V8 owner who values chassis rigidity and handling precision.
Does the 2005-B require any modification to the engine bay?No. The UMI 2005-B is a direct bolt-on installation that uses existing mounting points in the engine bay. No cutting, welding, or removal of factory components is required beyond the installation of the brace and its hardware.
What engines are compatible with the 2005-B?The UMI 2005-B is compatible with LT1 and LS1 V8 engines in the 1993-2002 Camaro and Firebird. The LT1 was used from 1993 to 1997 and the LS1 from 1998 to 2002. Both fit the same F-Body chassis and the brace clears both engine configurations.
Does UMI make a similar brace for the 82-92 third-gen F-Body?UMI Performance offers a range of chassis and suspension products for the 82-92 third-gen F-Body platform in addition to the fourth-gen 93-02 lineup. Refer to the UMI Performance catalog or contact UMI directly for third-gen specific shock tower and chassis bracing options.
Where is the 2005-B manufactured?The UMI 2005-B is manufactured in the USA at UMI Performance's facility in Philipsburg, Pennsylvania.
Installation Instructions
- Open the hood and locate both front shock towers in the engine bay of the 1993-2002 Camaro or Firebird.
- Verify there is adequate clearance between the intake manifold and the brace path before beginning. Confirm the vehicle does not have a FAST 102 intake or similar tall manifold that would conflict.
- Position the UMI 2005-B shock tower brace across the engine bay, aligning the mounting tabs with the shock tower mounting surfaces on each side.
- Install the provided hardware through the brace mounting tabs and into the shock tower mounting locations.
- Snug all fasteners, then torque to the specification provided in the UMI installation instructions.
- Verify the brace does not contact the intake manifold, brake booster, or any other engine bay component under static and simulated load conditions.
- Close the hood and confirm hood clearance is maintained with the brace installed.
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
