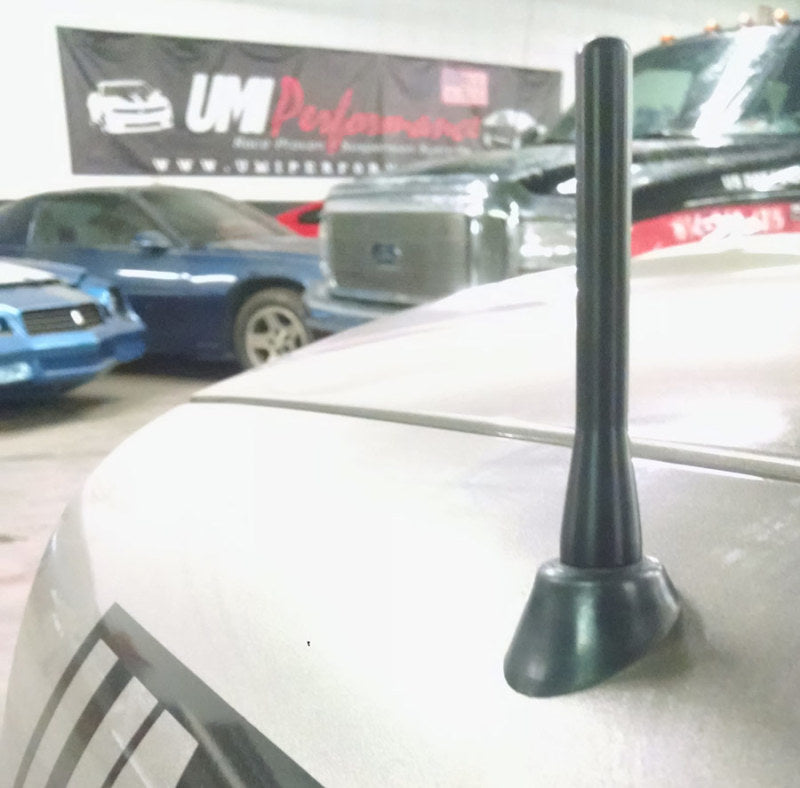

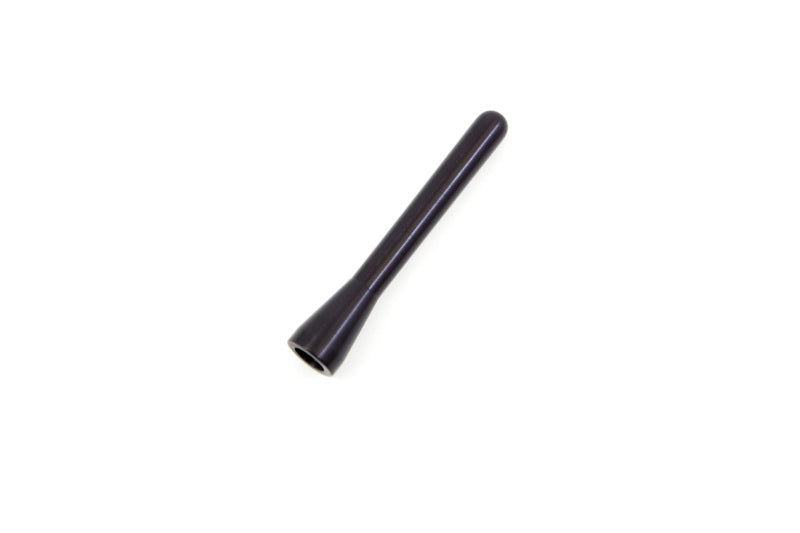

Black Anodized 3.5 Inch Aluminum Short Antenna for M6 x 1.0 Non-Power Bases on the 1982-2002 Camaro and Firebird
A CNC machined 6061 aluminum stub that replaces the long factory mast on a third or fourth generation F-body. It is 3-1/2 inches long, black anodized, and threads onto an M6 x 1.0 male antenna base by hand in about five minutes with no modification. UMI is direct about the trade-off: this is an appearance modification and it is not intended to perform as well as a full length antenna.
Key Features
- CNC machined from 6061 aluminum with a black anodized finish.
- 3-1/2 inch overall length in place of the full length factory mast.
- Threads onto an M6 x 1.0 male, non-power antenna base.
- No modification required, and UMI puts the fitting time at about five minutes.
- Hand tight installation, so it can be removed for a car wash or stored inside the car as a theft deterrent.
- Sold individually.
- Machined in Philipsburg, Pennsylvania.
Fitment
| Vehicle | Application |
|---|---|
| Chevrolet Camaro | 1982-2002, third and fourth generation F-body, non-power antenna base |
| Pontiac Firebird | 1982-2002, third and fourth generation F-body, non-power antenna base |
| Any other vehicle | Any vehicle with an M6 x 1.0 male, non-power antenna base, per UMI |
UMI's product title and the installation sheet header both name the Camaro only, while UMI's own platform data and the dealer fitment table both include the 1982-2002 Pontiac Firebird. The governing criterion is the antenna base thread rather than the nameplate, so both cars are listed here and the thread qualifier is published alongside them.
Exclusion, in UMI's words: Will not fit vehicles with power antenna.
UMI further states that it only guarantees fitment on an m6 x 1.0 male antenna base, and that the buyer assumes responsibility for not verifying fitment as described on the UMI product listing before time of purchase. Check the thread on your car before ordering.
Radio performance, in UMI's words: Item is not intended to perform as well as a full length antenna. UMI Performance is not responsible for the resulting loss in radio reception, as the short antenna is an appearance modification.
Specifications
| Detail | Value |
|---|---|
| Manufacturer | UMI Performance |
| Manufacturer part number | 2996 |
| Part type | Short replacement antenna mast |
| Material | 6061 aluminum, CNC machined |
| Finish and colour | Black anodized |
| Overall length | 3-1/2 inches |
| Thread and interface | M6 x 1.0 male, non-power antenna base |
| Power antenna compatibility | Will not fit vehicles with a power antenna |
| Modifications required | None |
| Installation time | About five minutes, hand tight |
| Sold as | Each |
| Radio reception | Not intended to perform as well as a full length antenna; UMI describes the part as an appearance modification |
| Published torque | None; UMI specifies hand tight |
| Country of manufacture | United States, built by UMI Performance in Philipsburg, Pennsylvania |
| Manufacturer warranty | UMI's published policy is a two year limited warranty from the original date of purchase to the original purchaser, covering defects in materials and workmanship, excluding normal wear on items such as bearings and bushings, misuse, improper installation, alteration and exceeding the design limits of the part |
| In-box warranty text | The printed installation sheet carries a narrower disclaimer that states ALL PARTS ARE WARRANTED TO BE FREE OF DEFECT AT THE TIME OF PURCHASE, disclaims other express and implied warranties, and limits remedy to replacement of parts. It is not the same document as the two year policy and neither text is a Black Ops Auto Works promise |
What's Included
- One black anodized 3.5 inch aluminum short antenna
- One UMI installation sheet
About UMI Performance
UMI Performance designs and manufactures chassis and suspension parts at 509 Hemlock Street in Philipsburg, Pennsylvania, using North American raw material, in-house laser cutting, CNC bending and fixture welding. The 2996 short antenna is one of the few appearance items in a catalogue that is otherwise chassis and suspension hardware, and it is machined at the same Philipsburg facility.
FAQ
Will it fit my Firebird even though the title says Camaro?Yes, if the base thread matches. UMI's title and install sheet header name the Camaro, but UMI's own platform data and the dealer fitment table both list the 1982-2002 Firebird as well. What actually decides fitment is the antenna base: UMI guarantees fitment on an M6 x 1.0 male, non-power base.
What if my car has a power antenna?Then this is the wrong part. UMI states plainly that it will not fit vehicles with power antenna. A power mast assembly is driven by a motor and does not present the M6 x 1.0 male stud this part threads onto.
How do I check the thread before I order?Unscrew the existing mast by hand or with an adjustable wrench and look at the stud left behind. It needs to be a 6 mm male thread with a 1.0 mm pitch. UMI's own wording is that it only guarantees fitment on an m6 x 1.0 male antenna base and that the buyer assumes responsibility for not verifying fitment before time of purchase.
Will my radio reception get worse?Expect it to. UMI is explicit that the item is not intended to perform as well as a full length antenna and that UMI Performance is not responsible for the resulting loss in radio reception, as the short antenna is an appearance modification. UMI publishes no signal figures either way.
How long is it?3-1/2 inches overall, which is the figure UMI publishes and the figure its dealers repeat in their specification blocks.
What is it made of?6061 aluminum, CNC machined, with a black anodized finish. No steel or plastic parts are published as part of the mast.
Does it come with a gasket, washer or adapter?Nothing beyond the antenna is published by UMI. One overseas supplier feed claims no mounting hardware is included, but that feed also carries model years that contradict themselves, so it is not treated as fact here. Plan on reusing whatever seal your existing base has.
Can I take it off for the car wash?Yes. UMI's sheet says to install it hand tight and notes that it is removable for car washes or to store in the vehicle as a theft deterrent. No torque value is published because none is needed.
Is any drilling or trimming needed?No. UMI lists modifications required as none and puts the job at about five minutes: locate the antenna, remove the factory mast with an adjustable wrench, and thread the short antenna on by hand.
Which UMI warranty applies, the two year policy or the text printed on the instruction sheet?They are two different documents. UMI's policies page publishes a two year limited warranty to the original purchaser against defects in materials and workmanship, with exclusions for normal wear on bushings and bearings, improper installation, alteration and exceeding the design limits of the part. The disclaimer printed on UMI's installation sheets is narrower and says parts are warranted to be free of defect at the time of purchase, with remedy limited to replacement. Read the policies page as the customer facing warranty and the sheet as the in-box legal notice. Neither one is a Black Ops Auto Works warranty.
Installation Instructions
- Locate the antenna on the vehicle.
- Remove the factory antenna mast with an adjustable wrench.
- Confirm the exposed base is an M6 x 1.0 male, non-power stud before fitting the replacement.
- Locate the UMI short antenna and thread it onto the base.
- Tighten by hand only; UMI publishes no torque value for this part.
- Remove it by hand for car washes or to store inside the vehicle as a theft deterrent.
The steps above follow UMI's own installation sheet for part 2996, which also carries UMI's in-box disclaimer stating that all parts are warranted to be free of defect at the time of purchase, disclaiming other express and implied warranties, and limiting remedy to replacement of parts.
