UMI Panhard Bar Relocation Kit in Black for the 1982-2002 Camaro and Firebird
Routing a true dual exhaust on a third or fourth-generation F-body runs straight into the upper panhard rod support. This kit replaces that support with a new heavy-duty bar built from 1.250 inch DOM tubing and drops the lower panhard bar into a pair of CNC machined, laser-cut brackets, which opens up enough room for up to a 3 inch pipe to pass over the passenger-side axle. It bolts in, and it works with the factory bar or an aftermarket one.
Key Features
- Replaces the upper panhard rod support and relocates the lower panhard bar for better clearance.

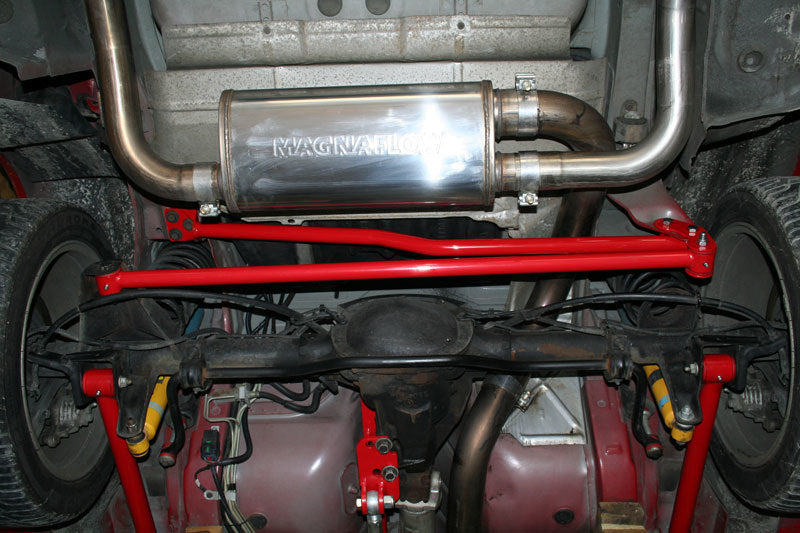

- Allows up to a 3 inch true dual exhaust system to run over the passenger-side axle.
- Supplies a new heavy-duty upper panhard bar support, laser-cut mounting brackets and high-grade hardware.
- Upper panhard bar support is made from 1.250 inch DOM tubing.
- CNC machined mounting brackets for precision fitment.
- Easy bolt-in installation with no welding or drilling published.
- Compatible with factory and aftermarket panhard bars.
- Made in the USA and offered in powder coated gloss black or bright red.
Fitment
| Vehicle | Years and requirements |
|---|---|
| Chevrolet Camaro | 1982-2002 |
| Pontiac Firebird | 1982-2002 |
One conditional requirement is published by UMI: if the car is running lowering springs, the panhard bar lowering bracket, UMI part number 2063, is also required.
The kit is compatible with the factory panhard bar and with aftermarket bars; UMI supplies an M14 bolt for the aftermarket case and has you reuse the factory bolt with the stock bar.
Specifications
| Detail | Value |
|---|---|
| Brand | UMI Performance |
| Manufacturer part number | 2024-B |
| Part type | Panhard bar relocation kit, brackets plus upper support bar |
| Material | Mild steel, with the upper support in 1.250 in DOM tubing |
| Brackets | Laser cut and CNC machined |
| Exhaust clearance | Up to a 3 in true dual system over the passenger-side axle |
| Bushings | None supplied; the kit is brackets, support bar and hardware |
| Finish and colour | Gloss black powder coat |
| Mounting hardware | Included |
| Torque published by UMI | Three 15mm frame bolts at 60 ft-lbs, two M12 bolts at 72 ft-lbs, and the lower panhard bar bolt at 90 ft-lbs with the suspension loaded |
| Also required with lowering springs | UMI panhard bar lowering bracket, part number 2063 |
| Shipping weight and size published by UMI | 9 lb, 46 x 4 x 4 in |
| Country of manufacture | United States |
| Warranty | UMI warrants parts to be free of defect at the time of purchase; coverage is limited to replacement of the part and excludes labor, towing and other direct or indirect costs |

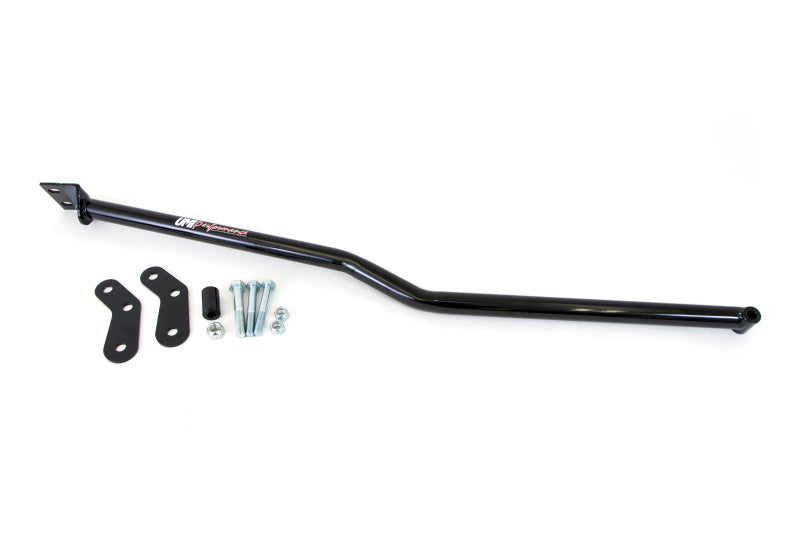

What's Included
- Two lower brackets
- One round spacer
- One upper panhard bar support
- Two M12 x 80mm bolts with lock nuts
- One M14 x 80mm bolt with lock nut
About UMI Performance
This kit is a good example of how UMI Performance approaches packaging problems rather than pure geometry: laser-cut brackets, a DOM tube support and graded hardware, all made in the USA at the company's Philipsburg, Pennsylvania facility. UMI offers the kit in the same bright red and gloss black powder coats used across its F-body range and publishes a printed sheet with torque values for every fastener in the box.
Related Parts
FAQ
What problem does this kit solve?Exhaust clearance. It relocates the panhard bar mounting so up to a 3 inch true dual system can pass over the passenger-side axle.
Do I need anything else if my car is lowered on springs?Yes. UMI states that cars running lowering springs also require the panhard bar lowering bracket, part number 2063.
Will it work with my aftermarket panhard bar?Yes. UMI lists compatibility with factory and aftermarket bars, and includes an M14 x 80mm bolt for use with an aftermarket bar.
What if I keep the factory bar?Reuse the factory panhard bar bolt in that case, installed with the nut facing the rear of the vehicle.
Is hardware included?Yes. The kit ships with two M12 x 80mm bolts and lock nuts plus the M14 x 80mm bolt and lock nut, along with the brackets, spacer and upper support.
What tools does the job need?18mm and 21mm wrenches for the panhard bar, a 7mm wrench for the heat shield screws, and a long extension with a 15mm socket for the three frame bolts.
Which torque values apply?The three 15mm frame bolts go to 60 ft-lbs, the two M12 bolts to 72 ft-lbs, and the lower panhard bar bolt to 90 ft-lbs with the rear suspension loaded.
Is welding or drilling involved?No. UMI publishes the kit as an easy bolt-in installation.
How much does the bar actually move?UMI does not publish a drop measurement for the relocation. What it does publish is the outcome: room for up to a 3 inch true dual system over the passenger-side axle.
Does the upper support bolt to the original frame holes?Yes. The new upper panhard bar support attaches at the frame side with the three factory bolts, then to the passenger side with a new M12 x 80mm bolt and lock nut.
Installation Instructions
- Raise the rear of the car and place jack stands under the frame so the axle hangs free.
- Use 18mm and 21mm wrenches to unbolt the lower panhard bar and the upper panhard bar at the passenger side.
- Remove the two heat shield screws with a 7mm wrench.
- Use a long extension and a 15mm socket to remove the three bolts holding the upper panhard bar to the driver-side frame.

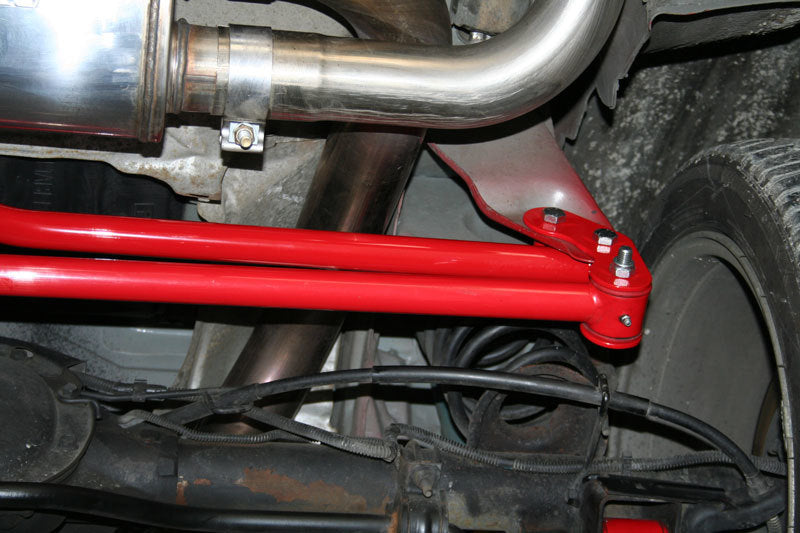

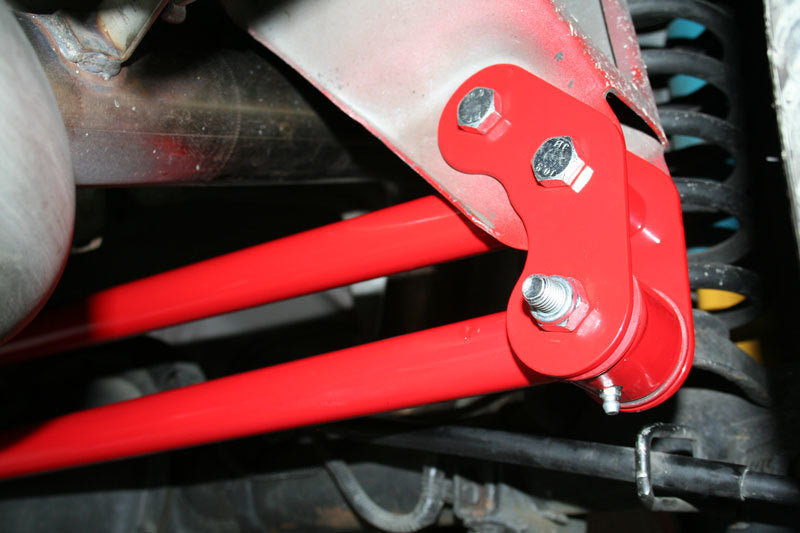

- Install the two lowering brackets and the round spacer on the passenger side with the new M12 x 80mm bolts and lock nuts, putting the spacer in the top hole where the factory upper bar was removed.

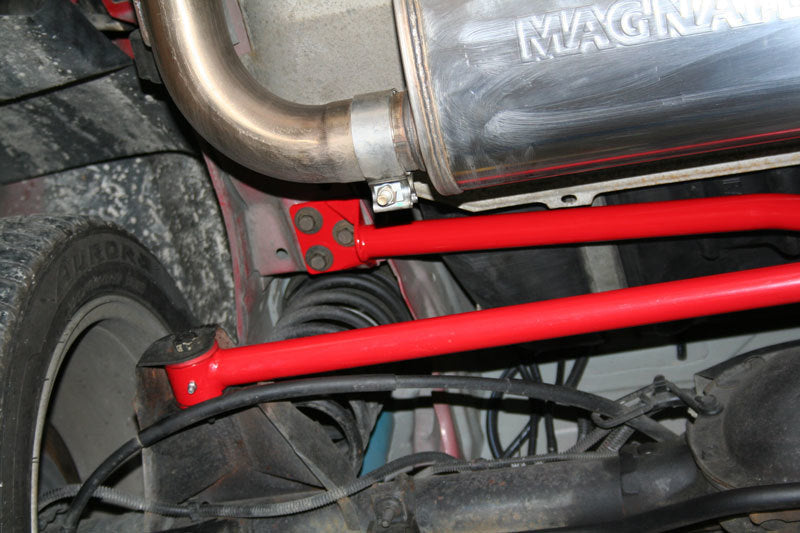

- Attach the new upper panhard bar support at the frame side using the three factory bolts.
- Bolt the other end of the new support to the passenger side with a new M12 x 80mm bolt and lock nut.
- Install the lower panhard bar into the lowering brackets with the nut facing the rear of the vehicle, reusing the factory bolt with a stock bar or the supplied M14 x 80mm bolt with an aftermarket bar.
- Tighten the three 15mm bolts to 60 ft-lbs and the two M12 bolts to 72 ft-lbs.
- Load the rear suspension on jack stands under the rear end, then tighten the lower panhard bar bolt to 90 ft-lbs.
