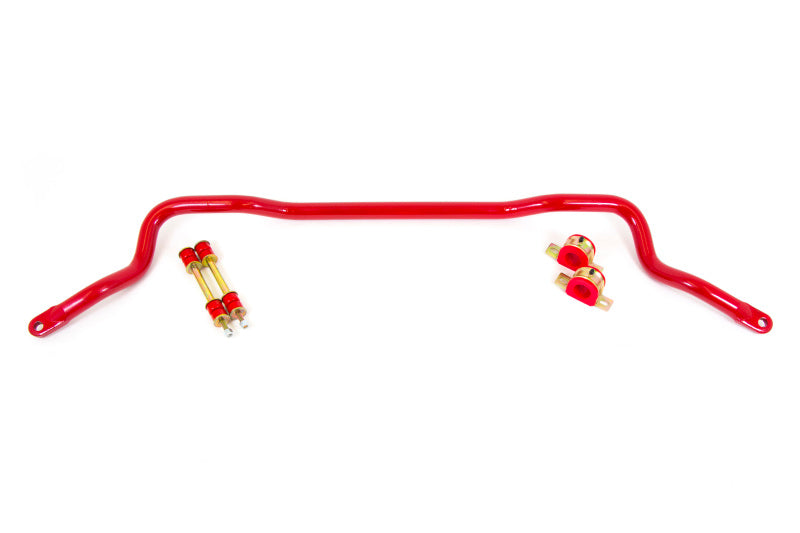

UMI 35mm Tubular Front Sway Bar for the 1993-2002 Camaro and Firebird, Bright Red
A one-piece 35mm tubular front bar that replaces the factory 30mm or 32mm front sway bar on a fourth generation F-body and comes with everything needed to fit it: heavy duty end links, large diameter greaseable bushings and zinc plated clamshells. The centre-to-centre dimension is 50 1/2 inches and it mounts in the factory locations with no modifications.
Key Features
- 35mm, or 1-3/8 inch, tubular bar CNC bent and formed as one piece.
- More rigid than the factory 30mm and 32mm front bars for flatter cornering.
- Centre-to-centre distance of 50 1/2 inches.
- Heavy duty end links supplied with the kit.
- Large diameter greaseable sway bar bushings with zinc plated clamshells.
- Mounts to the existing factory holes, with UMI listing modifications as none and direct bolt-on as yes.
- Powder coated bright red finish.
Fitment
| Vehicle | Application |
|---|---|
| Chevrolet Camaro | 1993-2002, fourth generation F-body, front |
| Pontiac Firebird | 1993-2002, fourth generation F-body, front |
Fourth generation only. This bar is not published for 1982-1992 cars.
UMI notes the bar may sit close to the crank pulley and A/C line but will not contact them, because the bend is contoured to clear as the suspension loads and unloads. UMI recommends moving the bar as far forward as possible using the slots in the new clamshells to gain clearance.
Specifications
| Detail | Value |
|---|---|
| Brand | UMI Performance |
| Manufacturer part number | 2112-R |
| Part type | Front sway bar kit |
| Position | Front |
| Bar diameter | 35mm, 1-3/8 inch |
| Bar construction | Tubular, CNC bent and formed as one piece |
| Centre to centre | 50 1/2 inches |
| Material | UMI publishes two different values for this bar, high carbon tubular steel in the description and Chromoly in the attribute table, so no single material is stated here |
| Bushings | Large diameter greaseable sway bar bushings |
| Clamshells | Zinc plated |
| End links | Heavy duty, two included |
| Adjustability | No adjustment holes or blades are published for this bar |
| Finish | Powder coat, bright red |
| Direct bolt-on | Yes |
| Modifications required | None |
| Published torque | None published for this part |
| Country of manufacture | United States, built in Philipsburg, Pennsylvania |
| Warranty | UMI warrants its own products for two years from the original date of purchase to the original purchaser, excluding normal wear on bearings and bushings, improper installation, alteration and exceeding the design limits of the part |
What's Included
- One 1.375 inch tubular front sway bar
- Two end links
- Two sway bar bushings with clamshells
About UMI Performance
UMI Performance designs and manufactures chassis and suspension parts at 509 Hemlock Street in Philipsburg, Pennsylvania, using North American raw materials, laser-cut plate, CNC bending and precision welding. UMI sells direct and through dealers, ships most orders within three business days from Philipsburg, and publishes a printed installation sheet with each part number. Coverage runs two years from the original purchase date for the original purchaser, and UMI states it cannot guarantee compatibility with other manufacturers' components used alongside its parts.
Related Parts
- UMI 93-02 GM F-Body front and rear tubular sway bar kit, the same front bar packaged with a 22mm rear bar
- UMI Super Lube synthetic grease, 14 oz tube, offered by UMI as the companion for its greaseable bushings
FAQ
What size is the factory bar this replaces?UMI states this 35mm bar is more rigid than the factory front bars, which are 30mm and 32mm depending on the car.
Is the bar solid or hollow?Tubular, CNC bent and formed as one piece.
What material is the bar?UMI publishes two different answers on the same page: the description says high carbon tubular steel and the attribute table says Chromoly. Because the two disagree, no single material is claimed on this listing.
Does it need drilling or bracket changes?No. UMI lists modifications as none and direct bolt-on as yes, and the new clamshells mount to the existing factory holes.
Are end links and bushings included?Yes. The kit ships with two heavy duty end links and two greaseable sway bar bushings with clamshells.
The instructions say do not grease, but the bushings are greaseable. Which is it?Those refer to two different bushing sets. The large diameter sway bar bushings that hold the bar to the chassis are greaseable. The end link bushings are not, and the end link procedure specifically says not to grease them and to tighten only until they bulge slightly.
Will the bar hit the crank pulley or A/C line?UMI states it may sit close but will not hit, because the bend is contoured to clear through suspension travel. Moving the bar as far forward as the clamshell slots allow gains extra clearance.
What are the torque specifications?None are published for this bar. UMI's only tightening instruction is the end link method, tightening with a 9/16 inch wrench until the bushings begin to bulge slightly with the car at ride height. For chassis fasteners, use the applicable General Motors factory service information for your model year.
Why must the car be on the ground before the end links are tightened?UMI states the vehicle's weight must be on the sway bar before the end links are tightened, otherwise the bushings bind at the wrong point in the travel.
Is the bar adjustable?No adjustment holes or blades appear on the bar or in the installation sheet, so treat it as a fixed rate bar. UMI does not itself use the word non-adjustable.
Can I add the rear bar later?Yes. UMI's 22mm tubular rear bar covers this application, and UMI also sells the two together as a front and rear kit for 1993-2002 cars.
Installation Instructions
- Jack under the front cross-member and set jack stands behind the front tires on the frame so the front control arms unload; a second person is recommended.
- Remove the old end links first, using an impact wrench or cutting them off if needed, then remove the factory bar.
- Install the new end links one side at a time, finger tight.
- Attach the bar to both end links finger tight, then mount the new clamshells to the existing factory holes.
- Centre the bar under the vehicle, moving it as far forward as the clamshell slots allow to gain clearance around the crank pulley and A/C line.
- Assemble each end link with the washers cupping toward the bushings and the bushing nipple centering the stack in the sway bar and control arm mounting points.
- Lower the car so it sits at ride height on all four tires before the end links are tightened, because UMI states the vehicle weight must be on the sway bar to prevent bushing bind.
- Using a 9/16 inch wrench and ratchet, tighten each end link only until the bushings start to bulge slightly, and do not grease or over tighten the end link bushings.
- Turn the steering wheel lock to lock and check clearance around the brake lines, tie rods and control arms before driving.
Procedure comes from UMI's own Item 2112 installation sheet, which lists a 13mm and 15mm wrench or socket, a three ton floor jack and two jack stands. UMI does not host this installation sheet on its own website. The document is UMI's own printed sheet, on UMI letterhead, served from a retailer's static PDF host, so treat it as a manufacturer document on a retailer host rather than a current UMI-hosted page. No ft-lb torque values appear in that sheet.
