SKU: 21220 | UPC: 690092145606

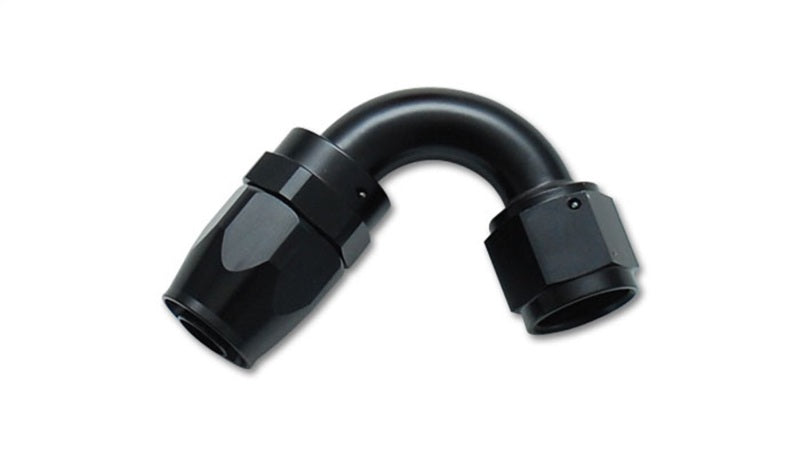

Vibrant Performance -20AN 120 Degree Elbow Hose End Fitting - Universal
This Vibrant Performance hose end fitting is a -20AN 120 degree elbow designed for custom fuel oil and coolant lines. It fits universal applications across performance cars trucks and race vehicles using 1.25 inch ID braided hose. Constructed from 6061 aluminum it provides lightweight strength smooth unrestricted flow and reliable leak free connections for demanding plumbing setups.
Key Features
- 6061 Aluminum Construction: Delivers lightweight durability at just 0.4 lbs to reduce vehicle weight without sacrificing strength in high pressure systems.
- Black Anodized Finish: Resists corrosion and wear while giving a professional blacked out look that matches performance engine bays.
- 120 Degree Elbow Design: Enables tight radius routing around headers firewalls and frame rails for clean custom installations.
- -20AN Sizing: Handles high volume flow with 1.25 inch hose inside diameter ideal for big power fuel injection and oil systems.
- Anti Leak Seal and Easy Assembly: Ensures secure hose connections with smooth interior for maximum flow and zero leaks under boost or pressure.
Product Notes
- Pair with Vibrant Performance braided stainless steel flex hose for best results and full system reliability.
- Inspect fittings for damage before installation and torque to manufacturer specs.
- Packaged individually to prevent scratches during transit.
Installation Notes
- Professional installation recommended.
- Use Vibrant crimp collars and tools or equivalent for secure hose attachment.
- Compatible with all -20AN braided hose ensure matching flare type for AN standard sealing.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | - | - | - |
Why Choose Vibrant Performance?
- Trusted brand in NHRA drag racing and circle track series for proven plumbing reliability.
- Precision machined components ensure consistent fit and flow in every fitting.
- Broad lineup covers all AN sizes and angles for complete custom systems.
Frequently Asked Questions
-
Q: Will this fitting work on my specific car build?
A: Yes this is a universal -20AN fitting for custom plumbing on any performance vehicle using compatible braided hose including imports domestics trucks and race cars. -
Q: What is the material and finish?
A: Made from 6061 T6 aluminum alloy with durable black anodized coating for corrosion resistance and heat tolerance up to 300 degrees F. -
Q: What warranty and install support is offered?
A: Backed by Vibrant Performance limited lifetime warranty against defects assemble with provided instructions or consult certified fabricator for crimping.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Secure retail box 5 x 4 x 2 inches
- Weight: 0.4 lbs
Fabrication
Fabrication parts and materials provide the raw components needed to build, repair, and modify custom exhaust systems, turbocharger plumbing, intercooler piping, fuel system lines, oil routing, and engine bay heat management on performance and competition vehicles. Stainless steel tubing, titanium tubing, aluminum charge piping, mandrel bends, pie cuts, flanges, merge collectors, V-band clamps, O2 sensor bungs, AN fittings, PTFE hose kits, braided fuel and oil lines, heat shields, and welding supplies are the backbone of any serious custom fabrication project. Professional fabricators, race team mechanics, and advanced DIY builders who want full control over exhaust routing, charge pipe layout, or fuel system plumbing choose raw fabrication materials rather than pre-bent kits because custom fabrication allows fitment solutions that no universal kit can accommodate. Brands including Vibrant Performance, Ticon Industries, Stainless Bros, Radium Engineering, Fragola, and DEI provide th...
View Fabrication Products
Fittings
Automotive fluid system fittings are the hardware that connects hoses, hard lines, and components within fuel, oil, cooling, brake, power steering, and intercooler circuits, and the quality and correct sizing of these fittings directly determines whether a high-performance fluid system remains leak-free under the pressure, temperature, and vibration conditions that race and street performance environments produce. The AN fitting standard, derived from military Aircraft-Navy specifications, provides a consistent thread and flare geometry across fuel, oil, and hydraulic applications that allows interchangeability between brands and simplifies system design by providing a known thread engagement and sealing approach for every connection. Swivel fittings, bulkhead adapters, 45-degree and 90-degree elbow fittings, tee and union adapters, and reducer fittings allow performance builders to route lines through tight spaces and around obstacles while maintaining correct flow area without res...
View Fittings Products
