SKU: 16820 | UPC: 690092176976

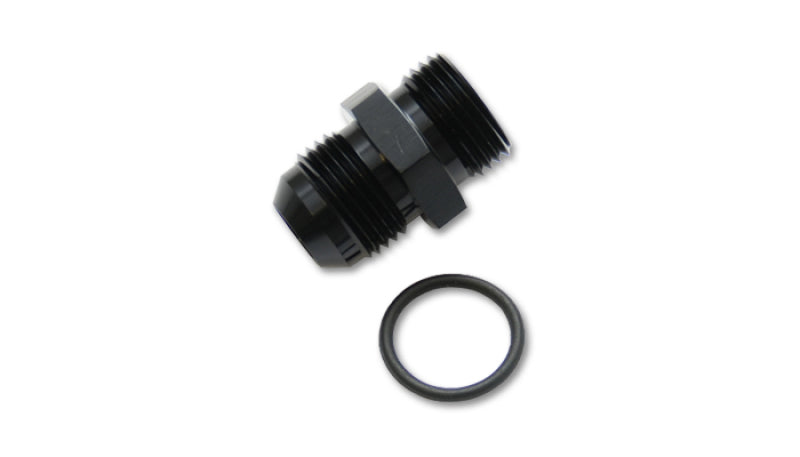

Vibrant -4 Male AN Flare x -3 Male ORB Straight Adapter w/O-Ring
Vibrant Performance 16820 straight adapter connects -4 male AN flare lines to -3 male ORB ports using a reliable O-ring seal. Perfect for custom fabrication on aluminum radiators oil pans tanks and plumbing systems. Delivers leak-free performance in high-pressure oil fuel coolant and air applications across all vehicles.
Key Features
- CNC Machined 6061-T6 Aluminum: Provides lightweight strength to handle extreme pressures temperatures and vibrations without failure
- Black Anodized Finish: Resists corrosion chemicals and wear for extended service life in harsh engine bay environments
- Straight Configuration: Enables clean direct routing of lines in confined spaces simplifying custom installs
- Integrated O-Ring: Ensures immediate positive seal on ORB ports preventing leaks under boost or high flow
- Precision Threads: 7/16-20 AN flare male to 1/2-20 ORB male for exact fit with standard AN hoses and ports
Product Notes
- Inspect O-ring condition before use and replace if damaged for optimal sealing
- Clean threads thoroughly to avoid contamination during assembly
- Packaged in protective sleeve to prevent damage in transit
Installation Notes
- Professional installation recommended.
- Torque AN flare side to 15-20 ft-lbs ORB side to 18-22 ft-lbs using calibrated wrench
- AN flare seals dry no sealant needed ORB relies on O-ring only
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Models | Custom Fabrication |
Why Choose Vibrant?
- Proven leader in performance fittings used by racers and builders worldwide
- Manufactured to exacting tolerances for consistent reliable results
- Backed by decades of engineering expertise in extreme automotive applications
Frequently Asked Questions
-
Q: Does this adapter work with braided AN hose ends?
A: Yes compatible with all standard -4 AN male swivel hose ends from major brands like Russell Earl's and Aeroquip -
Q: What fluids can it handle?
A: Rated for oil fuel coolant water vacuum and air lines up to 1000 PSI and 250°F continuous -
Q: How do I maintain the O-ring?
A: Lubricate with oil-compatible grease during install replace every 2 years or if seal degrades
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact poly bag in 3x2x1 inch box
- Weight: 0.05 lbs
