SKU: 10610 | UPC: 690092139100

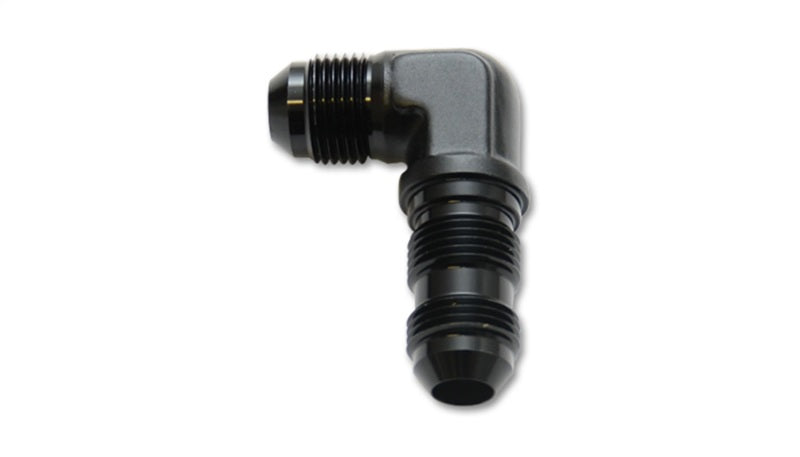

Vibrant -6AN Bulkhead Adapter 90 Degree Elbow Fitting - Anodized Black
This Vibrant Performance adapter connects -6AN hose ends to bulkheads on oil pumps fuel pumps filters and other components in automotive performance setups. Crafted for custom plumbing in racing street and off-road vehicles it ensures reliable routing through firewalls or panels. The 90 degree elbow design delivers smooth flow paths with a secure anti-leak seal in a lightweight package.
Key Features
- 6061-T6 Aluminum Construction: Provides strength-to-weight benefits for reduced system mass without sacrificing durability under high pressure
- Black Anodized Finish: Resists corrosion enhances heat dissipation and matches blacked-out engine bay aesthetics
- 90 Degree Elbow Geometry: Allows precise hose routing in confined spaces around bulkheads for cleaner installations
- -6AN Thread (9/16-18): Standard size mates seamlessly with Vibrant hose ends and common AN components
- Bulkhead Hole Size 1-3/16" (30mm): Fits standard panel thicknesses with O-ring seal for zero leaks under vibration and heat
Product Notes
- Intended for fuel oil and coolant lines in performance applications
- Compatible with most AN-6 hose ends and adapters
- Overall length measures 1.85 inches for compact fit
Installation Notes
- Professional installation recommended.
- Drill bulkhead hole to exactly 1-3/16 inches before mounting
- Compatible with standard AN hardware and O-ring seals
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Fuel/Oil Systems | -6AN Plumbing |
Why Choose Vibrant Performance?
- Established leader in motorsports plumbing components
- Precision CNC-machined for exact tolerances and flow
- Engineered for high-pressure reliability in racing conditions
Frequently Asked Questions
-
Q: What bulkhead hole size is required for this adapter?
A: Requires a 1-3/16 inch (30mm) diameter hole in panels up to 0.125 inch thick for secure mounting with O-ring seal -
Q: What material and finish does it use?
A: Made from 6061-T6 aluminum alloy with black anodized coating for corrosion resistance and durability -
Q: Is installation straightforward and what warranty applies?
A: Direct bolt-on with basic tools backs by Vibrant Performance limited lifetime warranty against defects
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective plastic bag in small box 3 x 3 x 2 inches
- Weight: 0.10 lbs
