SKU: 24042 | UPC: 690092174705

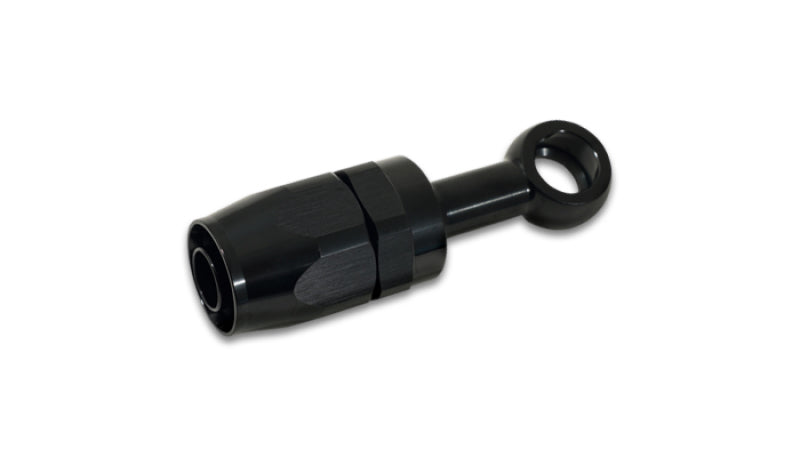

Vibrant Single -4AN x 10mm ID Banjo to Hose End Aluminum Fitting
This CNC-machined aluminum adapter fitting connects -4AN performance hose directly to 10mm ID banjo bolts for seamless oil flow in turbochargers, oil coolers, and dry sump systems. Designed for custom fabrication in automotive performance builds, it delivers consistent pressure handling and zero leaks under high-demand conditions. Vibrant Performance sets the benchmark for oil system components trusted in racing and street applications worldwide.
Key Features
- CNC Machined 6061-T6 Aluminum: Provides strength-to-weight advantage at just 1 oz (28g) for reduced plumbing mass without sacrificing durability.
- Black Anodized Finish: Resists corrosion and wear in harsh engine bay environments for long-term performance.
- Integrated O-Ring Seal: Creates a reliable, reusable banjo connection that prevents oil leaks even at elevated pressures up to 1000 PSI.
- Precise Thread Specs: -4AN male swivel to M10 x 1.0 banjo (10mm ID) ensures exact fit with metric banjo bolts common in turbos and oil blocks.
- Universal Compatibility: Works with all -4AN hose ends and 10mm ID banjo setups in fabrication projects for broad application versatility.
Product Notes
- Inspect banjo bolt ID to confirm 10mm match before installation.
- Clean threads and O-ring seating area for optimal seal integrity.
- Ships in compact protective packaging to prevent damage.
Installation Notes
- Professional installation recommended.
- Torque to 15-20 ft-lbs using AN assembly lube on swivel. do not overtighten.
- Compatible with all standard -4AN braided hose and hose ends. no special hardware needed.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Performance Builds | Turbo Oil Feed/Drain |
| 1989-2023 | Subaru | Impreza/WRX | STI/Turbo Models |
| 1999-2023 | VW/Audi | 1.8T/2.0T Models | All Turbos |
| 2000-2023 | Honda | K-Series/B-Series | Turbo Conversions |
Why Choose Vibrant Performance?
- Earned trust from racing teams and fabricators around the world.
- Manufactured to strict quality controls for dependable oil system operation.
- Engineered for precision fit in demanding fabrication applications.
Frequently Asked Questions
-
Q: Does this fit standard small turbo oil banjos?
A: Yes, matches 10mm ID banjo bolts like those on GT25/GT28 turbos and many OEM metric fittings for direct replacement. -
Q: What material and finish are used?
A: Billet 6061-T6 aluminum with durable black anodizing for heat and corrosion resistance in engine compartments. -
Q: What is the warranty and install process?
A: Backed by Vibrant limited lifetime warranty. install by threading into banjo bolt, seating O-ring, then attaching -4AN hose end with proper torque.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Secure poly bag in 4 x 3 x 1 inch box
- Weight: 0.1 lbs (1 oz product + packaging)
