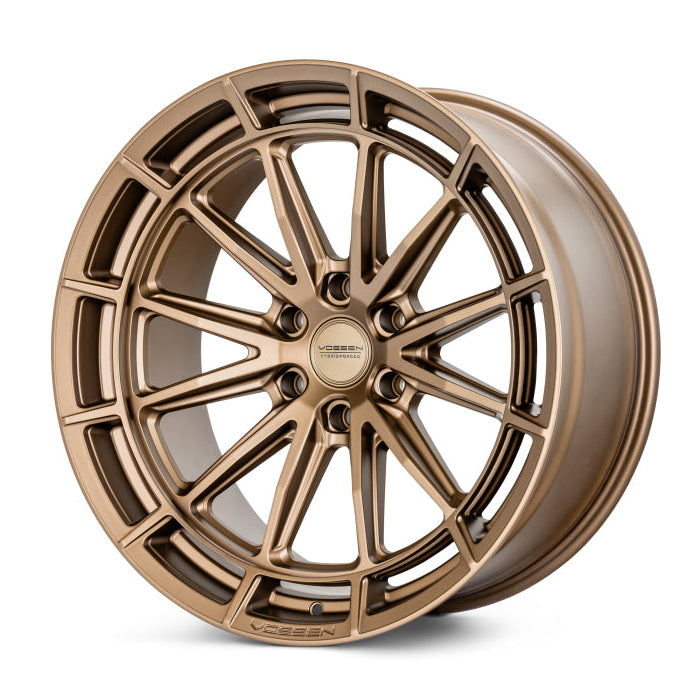

Vossen HFX-5 - 22x9.5 - 6x135 - ET20 - Deep Face - 87.1 - Satin Bronze Wheel

Satin Bronze Truck Wheel That Commands Attention on Any 6x135 Platform

The Vossen HFX-5 VOSHFX5-2F23 in 22x9.5 Satin Bronze brings a warm, muted metallic tone to the HFX Series lineup for 6-lug trucks and SUVs. Using Vossen's hybrid forged process, the HFX-5 pairs a flow-formed barrel with a forged 5-spoke face to achieve a strength-to-weight advantage over traditional cast construction. The Satin Bronze finish complements earth tones, black, and white truck colors, and it resists fingerprints and minor surface scuffs better than polished or gloss alternatives.

Key Features

• Vossen HFX Series hybrid forged construction, one-piece monoblock design
• 22-inch diameter by 9.5-inch width, offset ET20 (20mm)
• 6x135mm bolt pattern for Ford F-150, Lincoln Navigator, Ford Expedition, and Ford Bronco Raptor
• 87.1mm center bore for direct hub-centric fit on 6x135 Ford applications
• Satin Bronze finish with muted warm tone, part number VOSHFX5-2F23
• Deep face concave profile for aggressive truck stance
• Flow-formed barrel delivers high strength-to-weight ratio versus standard cast wheels
• Non-directional design for flexible tire rotation patterns

Fitment

Specifications

What's Included

• 1 Vossen HFX-5 wheel (22x9.5 Satin Bronze, 6x135, ET20)
• Vossen center cap

About Vossen

Vossen Wheels was founded in Miami, Florida, and has grown into one of the most recognized wheel brands in the aftermarket industry. Known for precision engineering and bold designs spanning their Hybrid Forged HFX Series, multi-piece forged models, and monoblock forged lineup, Vossen produces wheels for cars, trucks, and SUVs. Each wheel undergoes rigorous quality control and is backed by Vossen's commitment to fitment accuracy and finish durability.

Related Parts on Our Site

• Vossen HFX-5 22x9.5 6x135 ET20 Silver Polished (VOSHFX5-2F24)
• Vossen HFX-5 22x9.5 6x139.7 ET20 Silver Polished (VOSHFX5-2G24)

Frequently Asked Questions

The VOSHFX5-2F23 is the Vossen HFX-5 22x9.5 wheel in Satin Bronze finish with a 6x135mm bolt pattern and ET20 offset. It is designed for Ford F-150, Lincoln Navigator, Ford Expedition, and Ford Bronco Raptor and uses hybrid forged construction with a deep concave 5-spoke profile.

Both wheels share identical specs: 22x9.5, 6x135, ET20, 87.1mm center bore. The only difference is finish. VOSHFX5-2F23 is Satin Bronze and VOSHFX5-2F24 is Silver Polished. Satin Bronze offers a warmer tone with less reflectivity, while Silver Polished provides a high-contrast metallic look.

The 6x135mm bolt pattern fits 2004 and newer Ford F-150 trucks across most trims, 2003-2017 Ford Expedition, 2018-2026 Lincoln Navigator, and 2022-2025 Ford Bronco Raptor. It does not fit Toyota, GM, or Nissan trucks, which use 6x139.7 or 6x114.3 patterns.

Satin finishes are generally more resistant to showing fingerprints, light scratches, and brake dust than high-gloss or polished surfaces. Vossen applies a protective clear coat over the Satin Bronze base. Regular cleaning with a pH-neutral wheel cleaner will maintain the finish long-term.

ET20 is a widely used offset for 22-inch aftermarket wheels on the F-150 and produces a slightly more aggressive stance than the OEM offset without pushing the wheel outside the fender line. For lifted applications above 3 inches, verify inner fender and upper A-arm clearance.

Yes, a 285/45R22 tire is a popular and fitment-compatible choice for a 22x9.5 wheel on the F-150. The 285mm width pairs well with a 9.5-inch barrel. For taller tire profiles like 305/45R22, verify rim width compatibility with the tire manufacturer.

Lug nuts are not included with the VOSHFX5-2F23 wheel. You will need lug nuts with the correct thread pitch, seat type, and shank length for your vehicle. Ford F-150 lug nut seat is conical (60-degree), and threads are 14x1.5mm for most model years.

This listing is priced per wheel. Order four VOSHFX5-2F23 wheels for a complete set, or mix finishes by ordering two each of the Satin Bronze and Silver Polished variants for a custom staggered look. Confirm matching specs before mixing variants.

The 6x135 bolt pattern fits the Ford Bronco Raptor. At ET20 and 9.5 inches wide, verify clearance against the Raptor's fender flares and suspension geometry. The Bronco Raptor has aggressive off-road suspension travel that may require additional clearance checks compared to a standard Bronco or F-150.

Installation Instructions

1. Verify bolt pattern (6x135), center bore (87.1mm), offset (ET20), and diameter (22) match your vehicle specifications.
2. Clean the wheel hub mounting surface to remove rust, corrosion, and old debris.
3. Install hub-centric rings if your vehicle hub is smaller than 87.1mm.
4. Mount tire onto VOSHFX5-2F23 and balance on a road force balancer.
5. Seat wheel and hand-thread lug nuts in a star pattern before lowering the vehicle.
6. Torque lug nuts to OEM specification in a star pattern (150 ft-lb for most Ford F-150 applications).
7. Re-torque after the first 50 miles of driving.
