The Deep Concave HFX-5 for Silverado, Sierra, and Tundra Owners Who Refuse to Settle

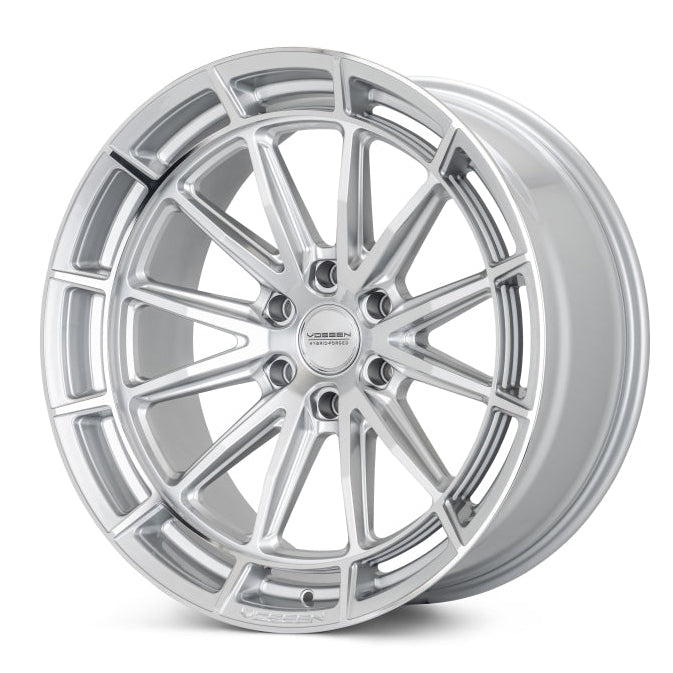

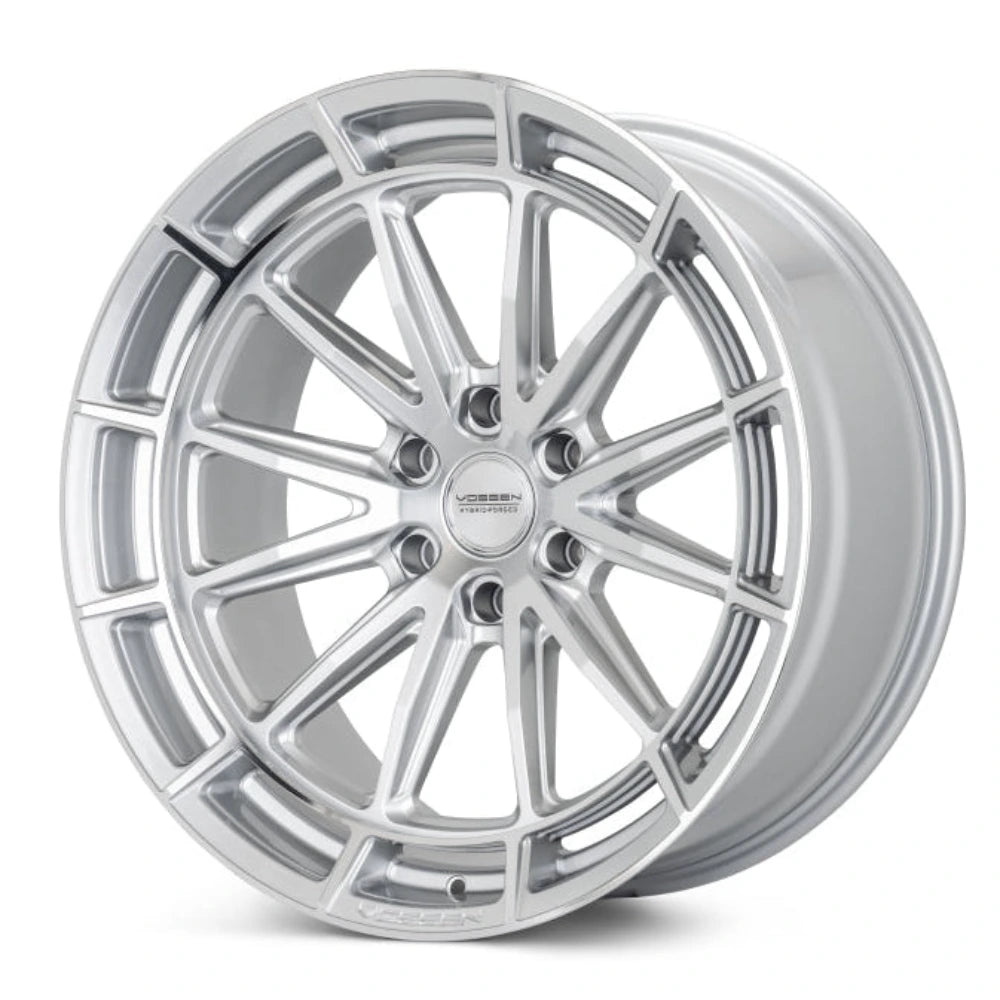

The Vossen HFX-5 VOSHFX5-2G24 in 22x9.5 Silver Polished with a 6x139.7 bolt pattern is engineered for GM full-size trucks, Toyota Tundra, Nissan Titan, and other 6-lug applications running the 6x5.5 metric pattern. The 106.1mm center bore provides a hub-centric fit on GM and Toyota hubs, eliminating the vibration that loose-bore wheels introduce. The hybrid forged construction delivers a flow-formed barrel bonded to a forged 5-spoke face, producing a lighter and stronger wheel than cast competitors at this price point.
Key Features
- Vossen HFX Series hybrid forged construction, one-piece monoblock design
- 22-inch diameter by 9.5-inch width, offset ET20 (20mm)
- 6x139.7mm (6x5.5 inch) bolt pattern for Chevy Silverado, GMC Sierra, Toyota Tundra, Toyota 4Runner, Nissan Titan, and more
- 106.1mm center bore for hub-centric fit on GM and Toyota full-size truck applications
- Silver Polished finish with machined spoke faces, part number VOSHFX5-2G24
- Deep face concave profile for aggressive stance on full-size trucks and SUVs
- Flow-formed barrel achieves higher strength-to-weight ratio versus cast construction
- Non-directional design allows all four wheels to rotate in any position
Fitment
| Year Range | Make | Model |
|---|---|---|
| 1999-2026 | Chevrolet | Silverado 1500 |
| 1999-2026 | GMC | Sierra 1500 |
| 2022-2026 | Chevrolet | Silverado 1500 LTD |
| 2007-2021 | Toyota | Tundra |
| 2003-2009 | Toyota | 4Runner |
| 2004-2015 | Nissan | Titan |
| 2016-2019 | Nissan | Titan XD |
Specifications
| Detail | Value |
|---|---|
| Part Number (MPN) | VOSHFX5-2G24 |
| Brand | Vossen |
| Series | HFX-5 |
| Diameter | 22 inches |
| Width | 9.5 inches |
| Offset | ET20 (20mm positive) |
| Bolt Pattern | 6x139.7mm (6x5.5 inch) |
| Center Bore | 106.1mm |
| Finish | Silver Polished |
| Construction | Hybrid Forged (Flow-Formed Barrel, Forged Face) |
| Structure | One-Piece Monoblock |
| Spokes | 5 |
| Directional | Non-directional |
| UPC | N/A |
| Prop 65 | Yes |
What's Included
- 1 Vossen HFX-5 wheel (22x9.5 Silver Polished, 6x139.7, ET20)
- Vossen center cap
About Vossen
Vossen Wheels was founded in Miami, Florida, and has grown into one of the most recognized wheel brands in the aftermarket industry. Known for precision engineering and bold designs spanning their Hybrid Forged HFX Series, multi-piece forged models, and monoblock forged lineup, Vossen produces wheels for cars, trucks, and SUVs. Each wheel undergoes rigorous quality control and is backed by Vossen's commitment to fitment accuracy and finish durability.
Related Parts on Our Site
- Vossen HFX-5 22x9.5 6x135 ET20 Silver Polished (VOSHFX5-2F24)
- Vossen HFX-5 22x9.5 6x135 ET20 Satin Bronze (VOSHFX5-2F23)
Frequently Asked Questions
What is the VOSHFX5-2G24?The VOSHFX5-2G24 is the Vossen HFX-5 22x9.5 wheel in Silver Polished finish with a 6x139.7mm bolt pattern and ET20 offset. It is designed for GM full-size trucks, Toyota Tundra, Nissan Titan, and other 6x5.5-bolt-pattern applications and uses hybrid forged construction with a deep concave 5-spoke profile and 106.1mm center bore.
What is 6x139.7 in inches?6x139.7mm is equivalent to 6x5.5 inches. This is one of the most common bolt patterns on North American full-size trucks, found on Chevrolet Silverado, GMC Sierra, Toyota Tundra, Nissan Titan, Isuzu D-Max, and several Toyota SUV models. Always verify your vehicle's exact hub specification before ordering.
Will the VOSHFX5-2G24 fit my Chevy Silverado 1500?Yes, the 6x139.7 bolt pattern fits 1999 and newer Chevrolet Silverado 1500 trucks. The 106.1mm center bore matches GM hub diameters on most full-size truck applications. Verify offset and fender clearance for your specific trim, wheel well size, and any leveling kit or lift installed.
Does the VOSHFX5-2G24 fit Toyota Tundra?Yes. The 6x139.7 bolt pattern and 106.1mm center bore are compatible with 2007-2021 Toyota Tundra. At ET20 with 9.5-inch width, this is a popular fitment for stock and mildly lifted Tundra applications. Check fender clearance with your specific wheel well gap and tire width.
What is the center bore on a GM Silverado vs. Toyota Tundra?Both the Chevrolet Silverado and Toyota Tundra use approximately 106.1mm hub diameters, which matches the VOSHFX5-2G24's 106.1mm center bore for a true hub-centric fit. If your vehicle's hub is slightly different, hub-centric rings can be installed to fill the gap and eliminate vibration.
How does the hybrid forged process differ from a cast wheel?A standard cast wheel is made by pouring molten aluminum into a mold, which limits density control and often requires extra material for strength. Vossen's hybrid forged process uses rotary flow-forming on the barrel and a forged center face, aligning the aluminum grain structure for higher tensile strength at lower weight. The result is a wheel with similar aesthetics to a full forged design at a more accessible price point.
What tire size pairs well with a 22x9.5 wheel on a Silverado?Common tire pairings for a 22x9.5 wheel on a Chevy Silverado include 285/45R22 and 265/40R22 for stock to slightly lifted trucks. For trucks running a 2-3 inch level kit, 285/45R22 or 305/40R22 may also fit. Confirm with your specific tire installer for exact fender clearance.
Is the Silver Polished finish on the VOSHFX5-2G24 maintenance intensive?Polished aluminum finishes require more regular attention than matte or satin surfaces. Use a pH-neutral wheel cleaner and soft microfiber cloths for weekly cleaning. Apply a dedicated aluminum polish or protective wax every 2-3 months. Avoid iron-fallout removers with high acidity, as they can etch polished surfaces over time.
Can I run 33-inch tires on a 22x9.5 wheel on a GM truck?A 33-inch tall tire with a 285 or 265 width will fit on the VOSHFX5-2G24. However, tire clearance on lifted GM 1500 trucks depends on the lift height, UCA geometry, and fender modification. Consult your lift kit manufacturer's tire fitment guide for exact maximum tire dimensions on your platform.
Installation Instructions
- Confirm bolt pattern (6x139.7), center bore (106.1mm), offset (ET20), and diameter (22) match your vehicle's specifications.
- Clean all debris and corrosion from the hub face and lug seat area.
- Install hub-centric rings if your vehicle's hub diameter is not exactly 106.1mm.
- Mount and balance tire on VOSHFX5-2G24 using a road force balancer.
- Thread lug nuts by hand in a star pattern before torquing.
- Torque to OEM specification for your vehicle (140 ft-lb for most GM 1500 trucks, 83 ft-lb for Toyota Tundra).
- Re-torque after 50 miles of initial driving.
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
