Click to zoom in
SKU: CTB10-2-KA | UPC: 653863203356

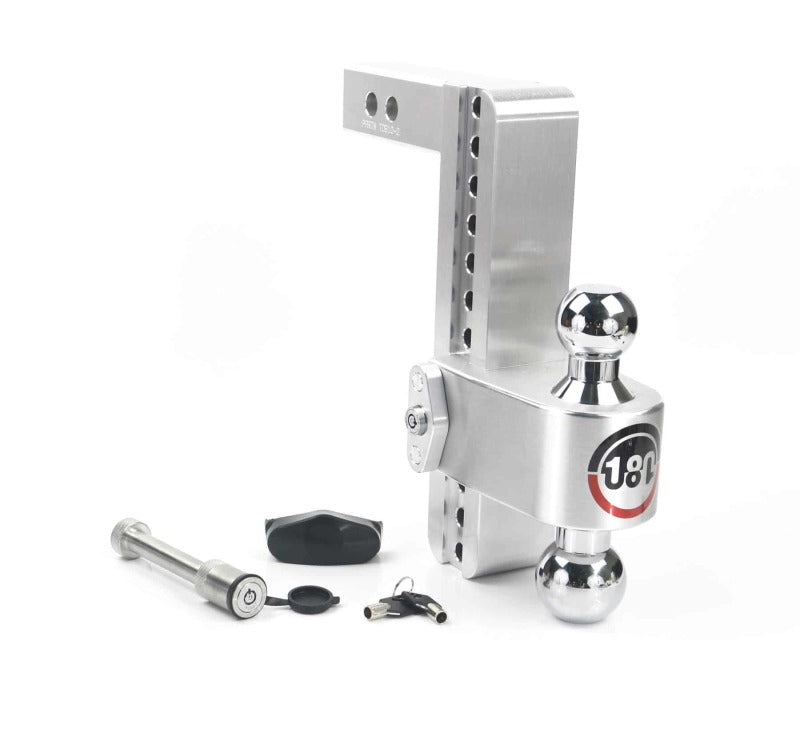

Weigh Safe 180 Hitch 10in Drop Hitch & 2in Shank (10K/12.5K GTWR) w/WS05 - Aluminum - Universal 2" Receiver Fit
This Weigh Safe 180 hitch delivers adjustable drop capability with an integrated tongue weight scale for real-time measurements during hookup. Designed for all vehicles with standard 2-inch Class III or IV hitch receivers, it supports loads up to 10K/12.5K GTWR while keeping your setup light at just 34 lbs. The aluminum build ensures lasting performance on trucks, SUVs and RVs for safer towing every trip.
Key Features
- Integrated WS05 Scale: Patented design measures tongue weight up to 2,000 lbs in 25 lb increments directly on the hitch for instant overload prevention without scales or apps
- Adjustable 10in Drop Beam: 180-degree rotation with 7 pin positions from 3.5in drop to 10.5in drop or 7in rise for perfect trailer leveling on any terrain
- Aluminum 6061-T6 Construction: Lightweight 34 lbs total weight resists corrosion and fatigue for long-term durability in harsh weather
- Heavy-Duty Ratings: Handles 12,500 lbs GTW and 10,000 lbs loaded capacity with 2in x 2in solid shank for secure Class IV towing
- 2-5/16in Ball Platform: Accepts standard hitch balls (sold separately) with reinforced platform for stable connection and vibration resistance
Product Notes
- Separate hitch ball and lock required for complete assembly
- Scale batteries included. replace CR2032 annually for accuracy
- Oversized package requires freight curbside delivery option
Installation Notes
- Professional installation recommended.
- Inserts directly into any 2-inch receiver. torque hitch pin to 12,000 lbs rating
- Includes 5/8in hitch pin and clip. no vehicle modifications needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Vehicles w/ 2" Class III/IV Receiver | - |
| 2015-2024 | Ford | F-150 | All |
| 2019-2024 | Ram | 1500 | All |
| 2014-2024 | Chevrolet | Silverado 1500 | All |
| 2015-2024 | Toyota | Tundra | All |
Why Choose Weigh Safe?
- Made in USA with aircraft-grade materials for trusted reliability
- Proven scale technology used by professional towers nationwide
- Precision machined components for exact fit and zero-play stability
Frequently Asked Questions
-
Q: Will this hitch fit my 2-inch receiver truck?
A: Yes, compatible with any standard 2-inch square Class III or IV receiver on trucks, SUVs or vans with minimum 4-inch receiver depth -
Q: What material is used and does it rust?
A: 6061-T6 aerospace aluminum with anodized black finish (KA) provides corrosion resistance superior to steel in salt or moisture -
Q: What is the warranty coverage?
A: Lifetime warranty on structural hitch components. 5-year limited warranty on WS05 scale against defects
Shipping & Handling
- Method: UPS Ground or Freight (oversized)
- Availability: In stock - ships same or next business day
- Packaging: Original box 41in L x 9in W x 9in H
- Weight: 34 lbs product / 38 lbs shipped
