SKU: WS6-2.5-KA | UPC: 653863202458

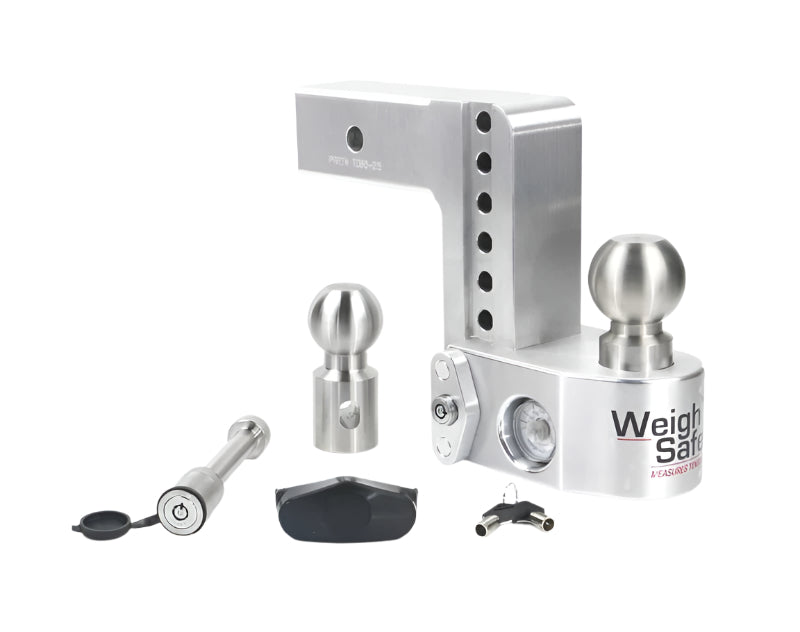

Weigh Safe 6in Drop Hitch w/Built-in Scale & 2.5in Shank (10K/18.5K GTWR) w/WS05 - Aluminum
This Weigh Safe drop hitch fits any truck or SUV with a 2.5-inch class V receiver. The built-in glycerin-filled gauge measures tongue weight instantly for balanced loads up to 2,200 lbs tongue and 18,500 lbs GTWR with 2-5/16-inch ball. Crafted from aircraft-grade aluminum, it delivers durable performance for every towing trip.
Key Features
- Aircraft Grade Aluminum Construction: Built for strength with ratings up to 18,500 lbs GTWR and 2,200 lbs tongue weight on 2.5-inch shank. V5 and J684 certified for reliability.
- Built-in Glycerin-Filled Scale: Provides accurate tongue weight readings without separate scales. Enhances safety by preventing overloads.
- Two Stainless Steel Tow Balls Included: 2-inch and 2-5/16-inch sizes with quick-swap pin. 1-7/8-inch ball available separately.
- Adjustable Design: 6-inch drop in 1-inch increments, usable in rise position. Dual pin slider lock secures height changes easily. Stows when not in use to protect against damage.
- Security Ready: Includes lock plate key assembly and dust cover. Compatible with keyed-alike hitch locks, coupler locks, and padlocks.
Product Notes
- Shank size 2.5 inches fits standard 2.5-inch receivers with 5/8-inch hitch pin hole.
- Stainless steel balls may develop surface rust from water or salt exposure. Clean with scotch brite pad. rust stays on surface and does not impact strength.
- Total height adds 3 inches from top of receiver to hitch base. Compatible with clam shell covers.
Installation Notes
- Professional installation recommended.
- Drop into 2.5-inch receiver and secure with 5/8-inch hitch pin (not included).
- Adjust slider to desired drop or rise using dual pins. Verify tongue weight before towing.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Vehicles with 2.5" Receiver | Class V Hitch |
Why Choose Weigh Safe?
- Leaders in hitches with integrated scales for precise towing measurements.
- Aircraft-grade materials ensure long-lasting corrosion resistance and high load capacity.
- Engineered for easy adjustments and storage to simplify trailer setup.
Frequently Asked Questions
-
Q: What receiver sizes are compatible?
A: Designed for 2.5-inch class V receivers on trucks and SUVs. Confirm your vehicle's hitch size before purchase. -
Q: What is the material and weight capacity?
A: Aircraft-grade aluminum construction. 18,500 lbs GTWR with 2-5/16-inch ball and 2,200 lbs max tongue weight for 2.5-inch shank. -
Q: How do I swap the tow balls?
A: Pull the retaining pin to release the ball from the slider. Swap takes seconds without tools.
