SKU: DB10-2 | UPC: 653863201833

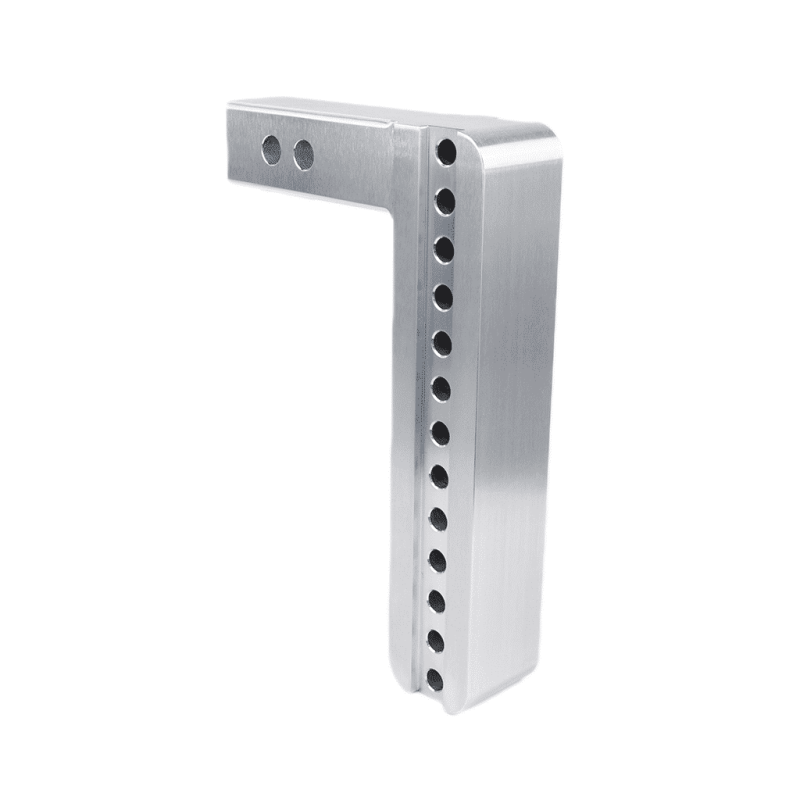

Weigh Safe Drawbar Only 10in Drop & 2in Shank (12.5K GTWR) - Aluminum
This Weigh Safe DB10-2 drawbar delivers exact tongue weight measurement for safer towing. It fits any vehicle with a 2-inch receiver hitch and supports up to 12,500 lbs GTWR. Lightweight aluminum design ensures easy handling while providing reliable performance on roads and trails.
Key Features
- Integrated Scale: Patented technology measures 0-2,000 lbs tongue weight with 2% accuracy to prevent overloads and improve stability
- Aluminum Build: 6061-T6 construction weighs 12.6 lbs for reduced trailer tongue load without sacrificing 12,500 lbs GTWR strength
- 10in Drop / 3in Rise: Levels trailer to truck height for straight towing and reduced stress on hitch components
- 2in Shank: Secure fit in class III/IV 2 x 2in receivers with through-hole for anti-rattle pin
- 1in Ball Hole: Accepts standard hitch balls up to 2-5/16in diameter rated for 1,875 lbs tongue weight
Product Notes
- Hitch ball and pin sold separately
- Scale requires occasional zero calibration per manual instructions
- Special order item ships in 2-5 business days
Installation Notes
- Professional installation recommended.
- Insert into 2in receiver and torque to 75 ft-lbs using provided hardware
- Compatible with factory or aftermarket 2in class III/IV hitches minimum 5,000 lbs rated
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | 2in Receiver Hitches | Class III / IV |
Why Choose Weigh Safe?
- Leaders in hitch scale innovation with patented designs
- USA-made for consistent quality and direct support
- Engineered for heavy-duty towing with real-world testing
Frequently Asked Questions
-
Q: Will this fit my truck's hitch receiver?
A: Yes it fits any standard 2 x 2in class III or IV receiver on trucks SUVs and vans with 5,000 lbs minimum rating -
Q: What material is used and is it rust-proof?
A: 6061-T6 aluminum alloy resists corrosion and weighs just 12.6 lbs for long-lasting performance -
Q: What is the warranty coverage?
A: Limited lifetime warranty covers defects in materials and workmanship when used as directed
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: Special order - ships in 2-5 business days
- Packaging: Box measures 21 x 10 x 4 inches
- Weight: 12.6 lbs product / 15 lbs shipping
