SKU: WSFH2-2-01 | UPC: 653863203523

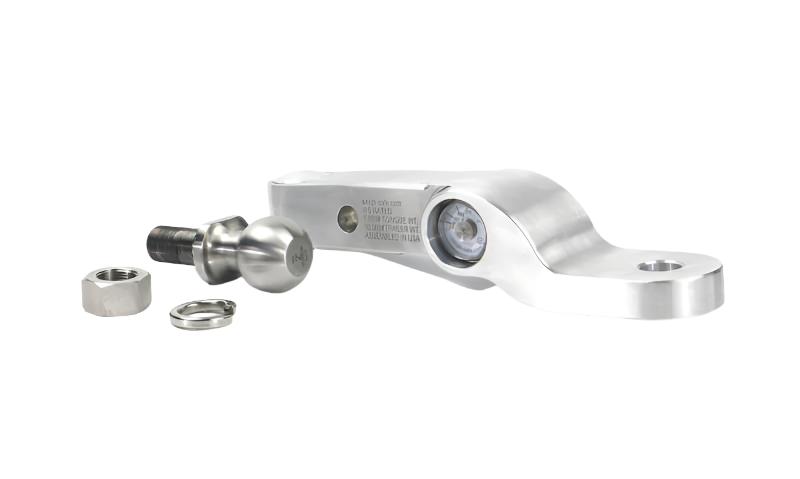

Weigh Safe Tongue Weighing 2in Drop Fixed Height Ball Mount w/2in Tow Ball (STB01) - Fits 2in Class III/IV/V Receivers
This Weigh Safe fixed height ball mount integrates a patented tongue weight scale with a 2-inch drop and pre-installed 2-inch tow ball for standard 2-inch hitch receivers on trucks and SUVs. Measure tongue weight instantly from 10 to 2000 pounds to ensure proper trailer loading and safer towing. Its durable design handles 12500 pounds gross trailer weight and 1250 pounds tongue weight capacity.
Key Features
- Integrated Tongue Scale: Patented mechanical gauge reads 10-2000 lbs in 20 lb increments accurate to +/-30 lbs without removing the ball or using separate tools.
- 2-Inch Fixed Drop: Aligns trailer frame level with vehicle hitch for stable towing and reduced wear on suspension.
- Pre-Installed 2-Inch Tow Ball: Chrome-plated steel ball rated for heavy-duty use ready straight from the package.
- Aluminum Construction: CNC-machined 6061-T6 billet aluminum shank black anodized for corrosion resistance and lightweight strength at 6.8 lbs.
- Extended Shank: 7-inch insertion length secures firmly in 2 x 2 inch receiver tubes on Class III/IV/V hitches.
Product Notes
- Calibrate scale to zero before first use and after every 10 tows by pressing hitch ball firmly down.
- Lubricate scale pivot points annually with provided grease for smooth operation.
- Boxed dimensions 13 x 6 x 6 inches for compact storage and shipping.
Installation Notes
- Professional installation recommended.
- Slide shank into 2-inch receiver tube until fully seated then secure with 1/2-inch hitch pin and clip not included.
- Compatible with standard 2-inch square receiver openings verify clearance before towing.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| All Years | All | 2in Class III/IV/V Hitch Receivers | N/A |
Why Choose Weigh Safe?
- Innovative patented scales built into hitches since 2010.
- Machined in USA with aerospace-grade materials for reliability.
- Lifetime warranty on scale mechanism covers accuracy defects.
Frequently Asked Questions
-
Q: Does this fit my truck hitch?
A: Yes it fits any standard 2 x 2 inch Class III IV or V receiver tube on pickups SUVs and vans confirm your receiver size first. -
Q: What materials are used?
A: Shank from 6061-T6 aluminum black anodized ball chrome-plated steel internals stainless steel and polymer for scale durability. -
Q: What warranty coverage exists?
A: Lifetime on scale accuracy and function 5 years structural on mount contact manufacturer for claims with proof of purchase.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Cardboard box 13 x 6 x 6 inches
- Weight: 6.8 lbs
