Sold out
Click to zoom in
SKU: TTMW4-2.5XL-KA | UPC: 653863207118

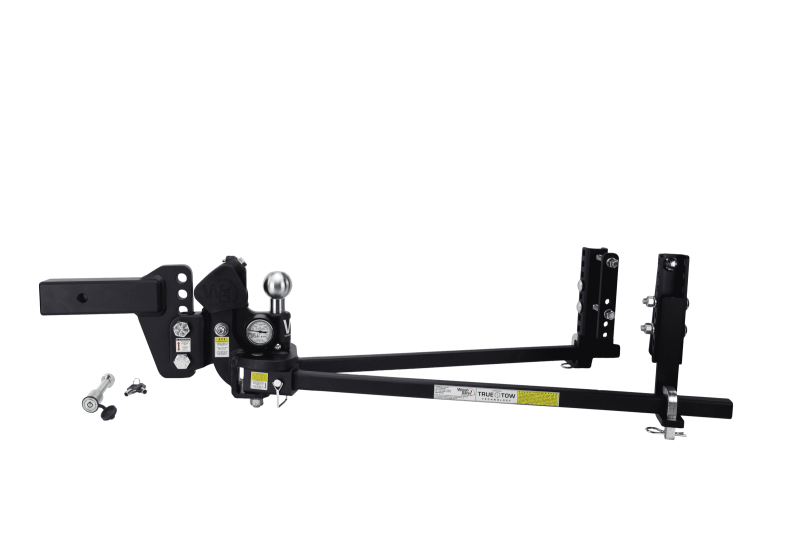

Universal Heavy Duty Trucks Weigh Safe True Tow Middleweight Distribution 4in Drop & 2.5in Shank (Rated for 12.5K GTWR) w/WS05
Weigh Safe True Tow Middleweight Distribution Hitch delivers precise load balancing with an integrated WS05 scale for 12,500 lb GTWR and 1,250 lb tongue weight capacity. Designed for trucks and SUVs with 2.5in x 2.5in receivers like Ford Super Duty, Ram 2500/3500, and Chevy/GMC 2500HD/3500HD. Built-in scale measures tongue weight instantly for safe, level towing every time.
Key Features
- Integrated WS05 Digital Scale: Bluetooth-enabled readout accurate to 5 lb increments up to 2,000 lbs shows real-time tongue weight without jacks or blocks
- 12,500 lb GTWR / 1,250 lb TW Rating: Handles mid-size to heavy trailers with confidence using high-strength steel frame and preinstalled sway-control bars
- 4in Drop / 2.5in Rise Adjustment: Rotating head aligns trailer level on trucks from 32in to 38in hitch heights for straight-line stability
- 2.5in x 12.75in Shank: Secure collar fit for Class IV/V receivers prevents wobble and ensures maximum strength
- Middleweight Distribution Bars: 36in length distributes 20-30% tongue weight to front axle reducing rear sag and improving braking
Product Notes
- Pre-assembled with 2-5/16in hitch ball rated 21,000 lbs
- Durable black powder coat finish resists rust and road salt
- Special order item expect 3-5 business days processing
Installation Notes
- Professional installation recommended.
- Torque shank nut to 400 ft-lbs and U-bolts to 120 ft-lbs using provided markings
- Requires 2.5in square receiver minimum 1.25in depth compatible with standard adapters
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017-2024 | Ford | F-250 Super Duty | All |
| 2017-2024 | Ford | F-350 Super Duty | All |
| 2019-2024 | Ram | 2500 | All |
| 2019-2024 | Ram | 3500 | All |
| 2015-2024 | Chevrolet | Silverado 2500HD | All |
| 2015-2024 | Chevrolet | Silverado 3500HD | All |
| 2015-2024 | GMC | Sierras 2500HD | All |
| 2015-2024 | GMC | Sierras 3500HD | All |
Why Choose Weigh Safe?
- Patented scale integration eliminates extra tools for fast accurate setup
- High-strength steel build tested for heavy-duty daily use
- USA-engineered design with lifetime structural warranty
Frequently Asked Questions
-
Q: Will this fit my 2in receiver truck?
A: No requires 2.5in x 2.5in Class IV/V receiver use reducer sleeve voids warranty -
Q: What material and finish does it have?
A: CNC-machined high-strength steel frame with triple-layer black powder coat for lasting corrosion protection -
Q: What warranty coverage applies?
A: Limited lifetime on hitch frame and scale 1-year on electronics covers manufacturing defects
Shipping & Handling
- Method: UPS Ground Freight
- Availability: In stock - ships same or next business day
- Packaging: Protective cardboard box 20in x 18in x 12in
- Weight: 92 lbs product / 105 lbs shipping
